CV-483/URA-17 FSK Converter

© Brooke Clarke, N6GCE

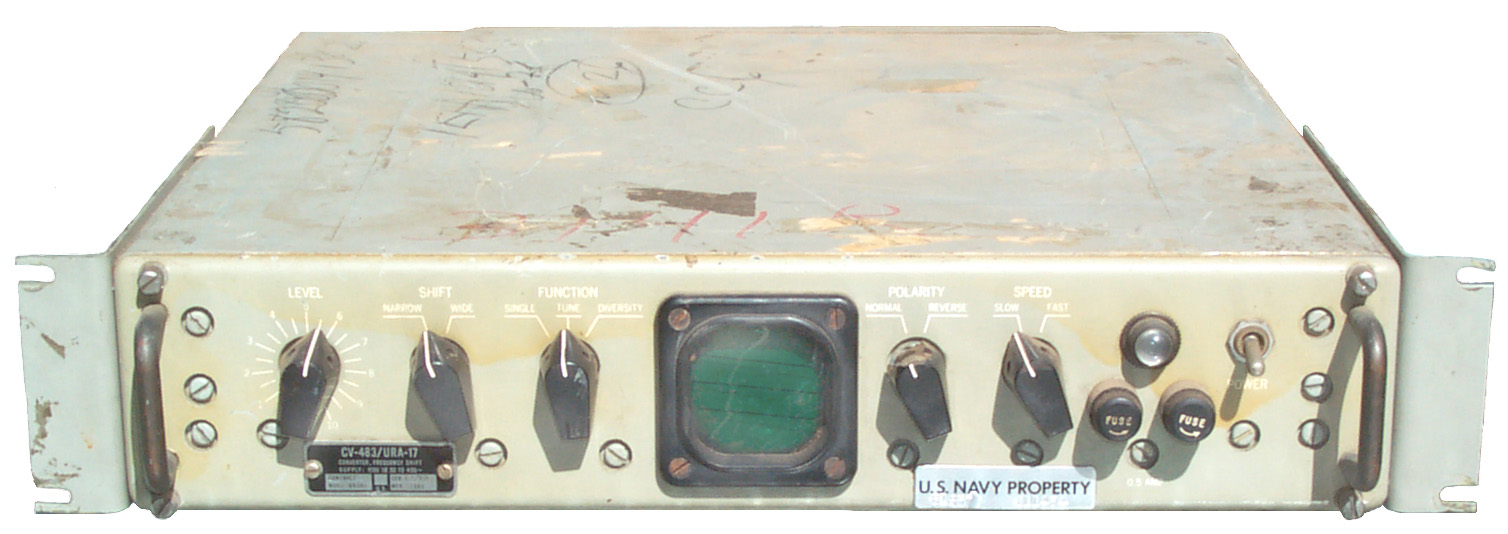

CV-483 Front

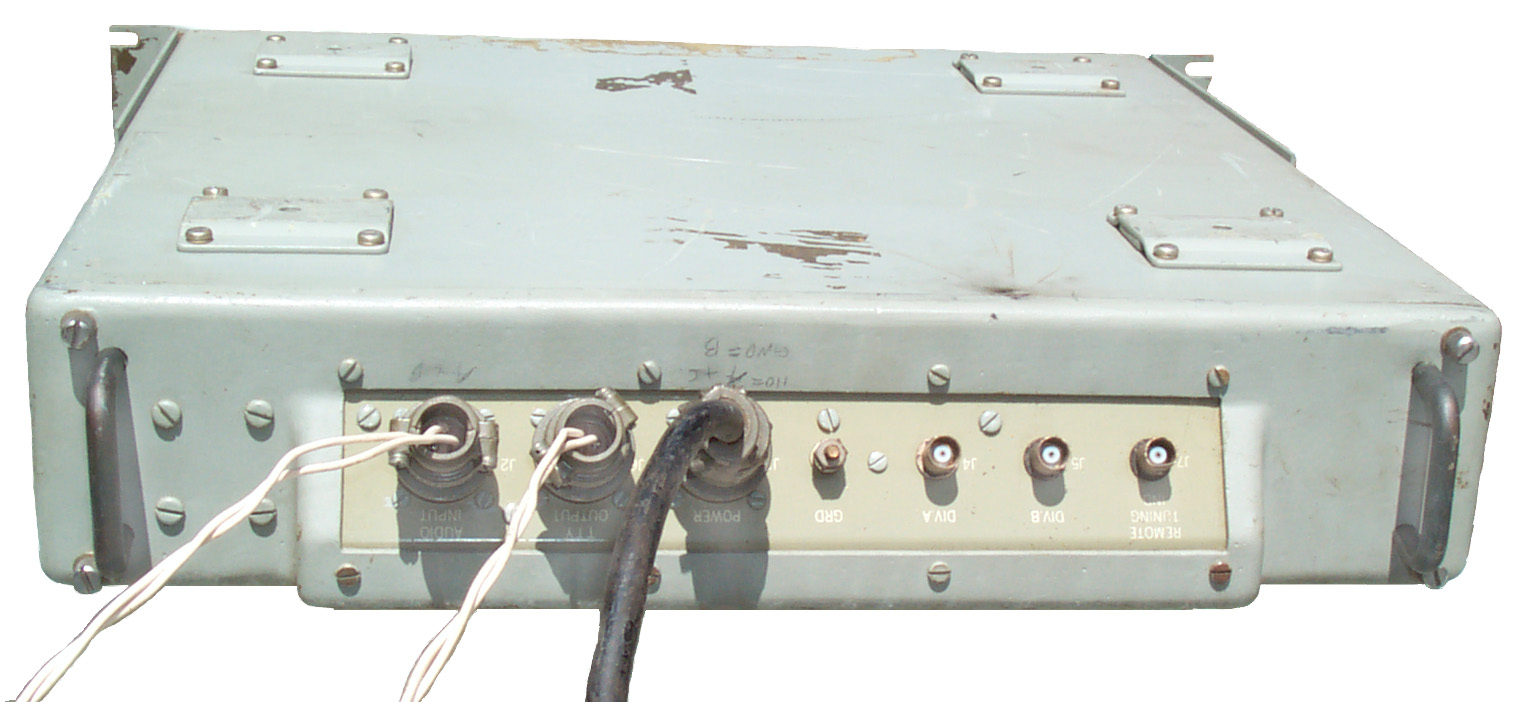

CV-483 Back

Description

The URA-17 consists of a pair of CV-483 FSK converters.  A single CV-483 and one receiver can be used to receive RTTY signals or two receivers and two CV-483 converters can be used for diversity reception.  No seperate diversity combiner is needed when two CV-483 converters are used for diversity, they have A and B outputs and A and B inputs to allow cross connection.

All solid state construction with discrete transistors and printed wiring boards.

Navy receivers that might be used with the CV-483 include the RBA, RBB, RBC, SRR-11, SRR-12, SRR-13, WRR-2, WRR-3 or equivalent.  Teletype machine with 60 ma current loop needed to display single channel messages.  For 4 channel time division messages ? needed.

Capability

Narrow Shift 10 to 200 CPS with BFO 1 kc
Wide Shift 200 to 1,000 CPS with BFO 2 kc

Manual

Navships 0967-340-0010 Technical Manual for Comparator-Converter Group AN/URA-17C, Department of the Nave, naval Electronic Systems Command, 24 October 1968. Has the following major sections:

Cables

Related Equipment

The CV-89A/URA-8A is a Military tube type FSK converter with a CRT type tuning indicator.
The  MD-1142 (BR Communications 6029C) Time Deversity Modem
The Frederick 1203 is a solid state single channel FSK converter
The Frederick 600A is a rack mount modular BER test set.
Digitech also made a modular rack mount Digital Data Generator test set
