Background

Got this battery analyzer for BA-5590 family batteries and/or 18650 Li-Ion cells and/or packs, like used in the BB-2590 family of batteries.

Description

This is a more sophisticated battery test instrument than the military type battery chargers.  It's made mainly for maintaining commercial portable batteries but there is an adapter for the BA-5590 style battery.
This is a 2-bay instrument and the C7400 is a 4-bay version.  Has charge alogrithims for SLA, Li-Ion, Ni-Cad and Ni-MH.  Does not have SMBus capability.
For testing one BA-5590 family battery 2-bays are required so the C7200 can only test one BA-5590 family battery at a time.
The latest (March 13, 2007) firmware is 6.12.  [Note the C7200 & C7400 C-Series testers that also do Li-FePO4 batteries]

Internal Programs

Basic

Auto - exercises - recondition if needed
Charge - fast charge w/o capacity
Prime - charge-discharge until max capacity
Quick Test - State of Health for known battery types (requires Learn)

Advanced

Self-Discharge - 24 hour test
Life-Cycle (destructive)
Dishcarge Only - % of capacity
Extended Prime - start with 16 hour trickle charge
Ohm Test - 15 seconds DC based
Run Time - based on cycle of standby, Rx and Tx currents (needs to be programed)
Boost - for use with protection circuits or open or shorted batteries to rejuivinate them
Learn - takes from 4 to 8 hours, builds info needed for Quick Test, involves multiple charge/discharge cycles
Quick Learn - involves a single charge discharge cycle
Custom 1, 2, 3 & 4 - up to 5 cycles with IF test branching

Battery Adapters

Cadex makes a plethora of adapters that are specific to some commercial portable battery.  In addition they make some universal probe type adapters and a cable adapter p/n 07-110-0115 that has wires for positive and negative as well as a temperature sensor.

Cadex makes many battery adapters for their battery analyzers.  I expect that the difference between the following battery adapter relates to the extra top contacts.

Cadex Model
Battery

07-110-3520 MPS-590
BB-590
BB-390
similar form factor to the BB2590 Adapter but different C-Code
for Lead-acid, Ni-Cad & Ni-MH
07-111-2130 UBI-2590
BT-70790, BB-2590/U
Bren-Tronics 2590
07-111-2131 UBI-2590, UBBL09/
BBT-70791BK, BT-70791BG, BT-70791BE
Harris Part number not for resell

Smart Cable

marked:
Smart Cable 07-110-0115
Alligator Clips with Temp. Sensing   4-Wire
Warning: Not for use with Li batteries on C7000/BOS

It contains a PCB with a Microchip 93L86 16k bit EEPROM.  There are 6 double sided PCB connections to the main tester.
B+ on IC side named pin Bottom 1/
Pin
Function
Battery
Wire
Color
B1
B+
Red
B2
DO

B3
DI

B4
CLK

B5
CS

B6
B-
Black
T1
BS+
Yellow
T2
Temp Probe
Blue
T3
Temp gnd
White
T4
Vcc

T5
Ground

T6
BS-
Green

Photos

C7200

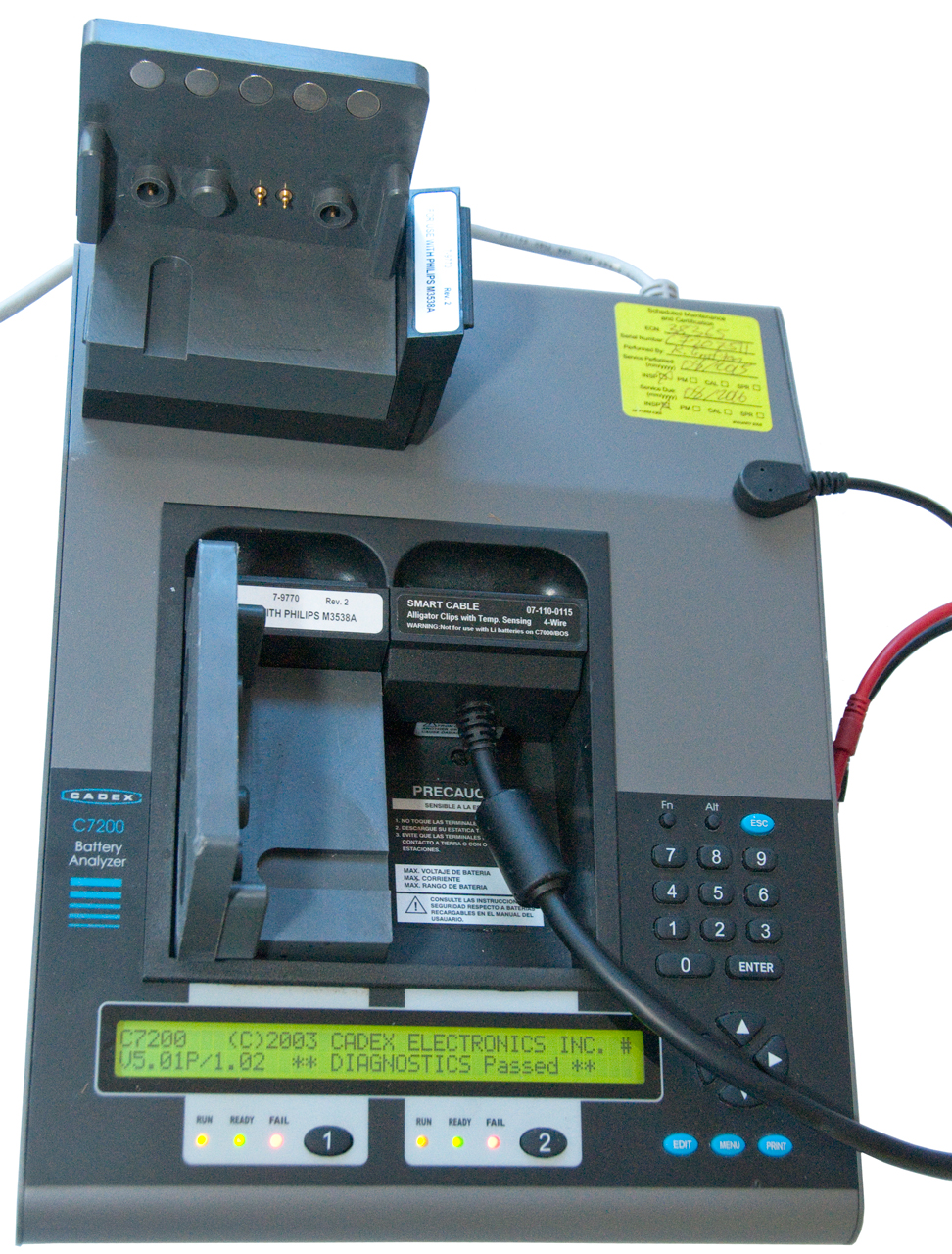

Fig 1 Power up display:
C7200   (C)2003 CADEX ELECTRONICS INC. #
V5.01P/1.02  **DIAGNOSTICS Passed **
All LEDs are lit just after power on.
6.12 is the latest firmware, so needs upgrade.
Cadex
                      C7200 Battery Analyzer

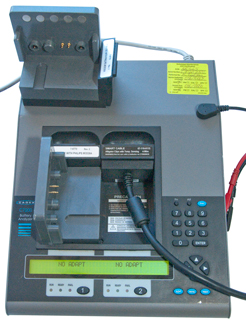

Fig 2  NO ADAPT under each adapter.
Cadex
                      C7200 Battery Analyzer

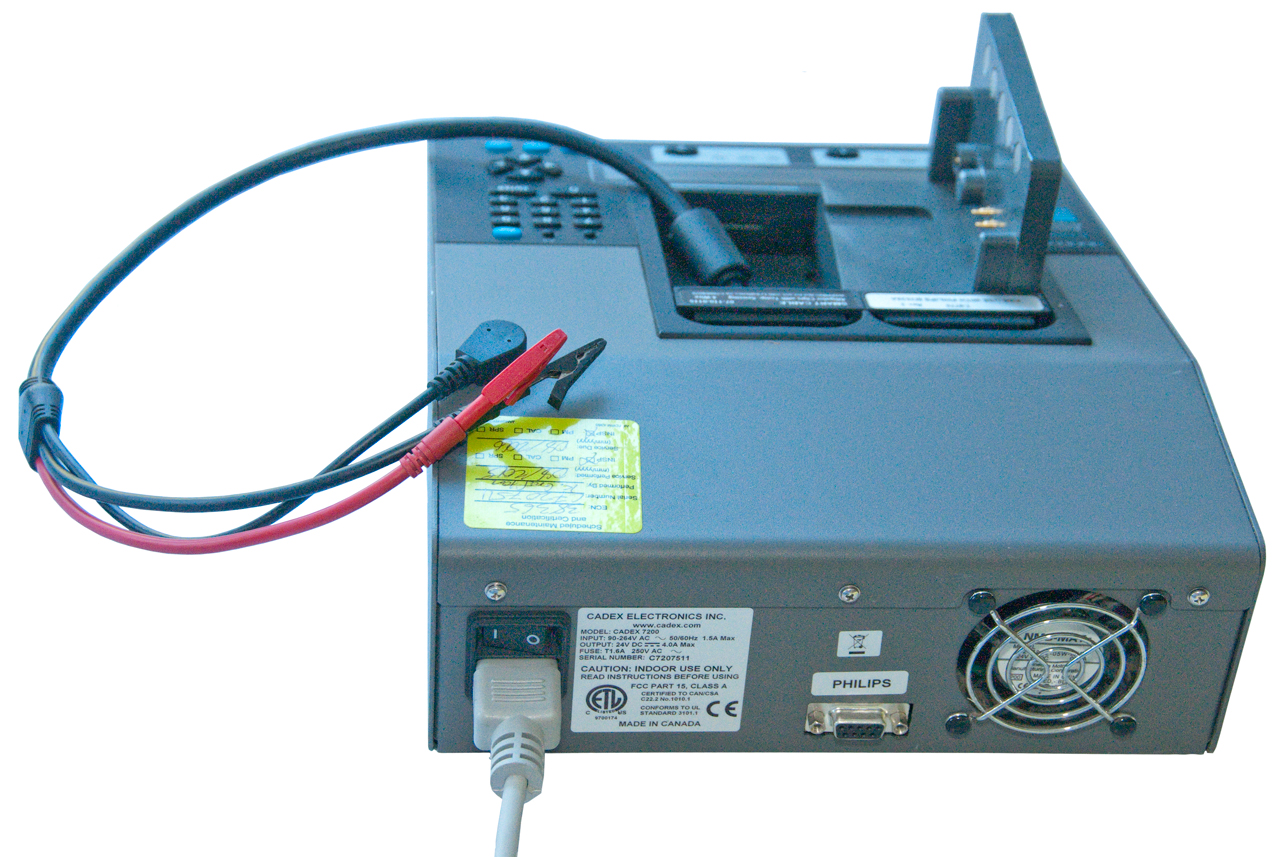

Fig 3 Rear has On/Off switch, BD-9f for printer & firmware,
and IEC AC mains socket plus fan.
Cadex
                      C7200 Battery Analyzer

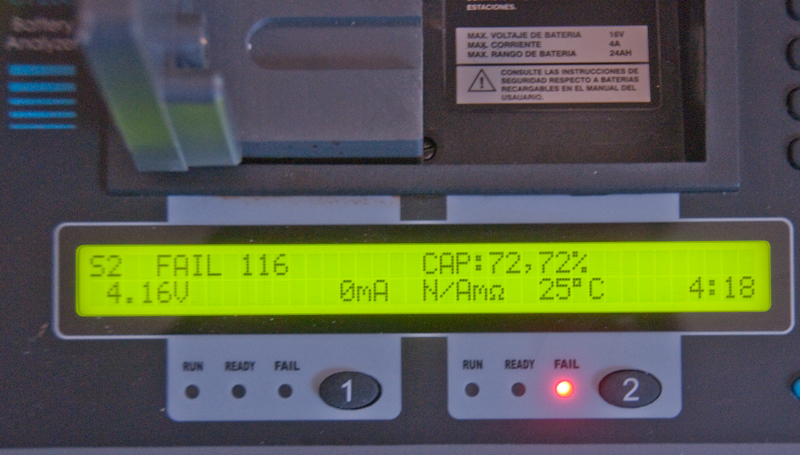

Fig 4 after 2 cycles on an 18650 cell.
rated at 1500 but tested at 1900 * 72% = 1368 mAh
Cadex
                      C7200 Battery Analyzer

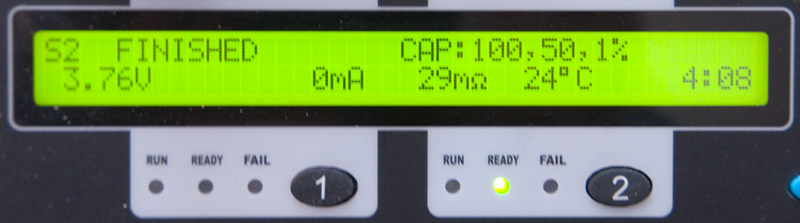

Fig 5 Learn
Setup: Li, 1400 mAh, 80%, 3.6 V
Note capacity set to 1400 mAh based on prior testing,
not the 1500 mAh label marking - at 300 mA)
Tester uses 1C or 1.4 Amps, so not correct test.
Result:
CAP:100,50,1%
3.76V   0mA   29mOhm    4:08
For a cell marked:
INR18650-15M  M
Samsung   SDIEM
121

Cadex
                      C7200 Battery Analyzer

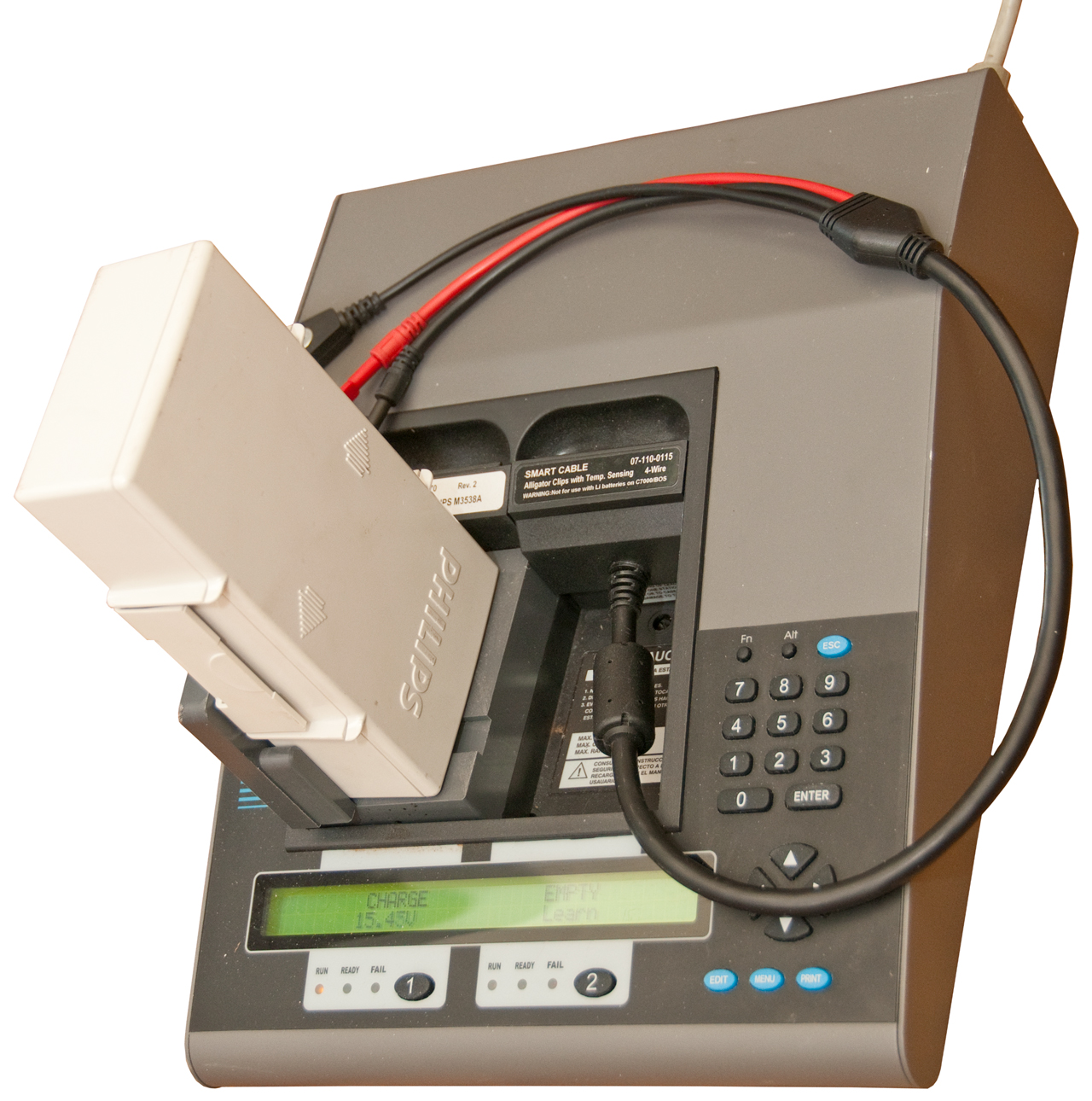

Fig 6 Philips M3538A Li-Ion 4series cell battery
Cadex
                      C7200 Battery Analyzer + Philips HeartStart
                      defibrillator Li-Ion M3538A battery

Adapters

Smart Cable

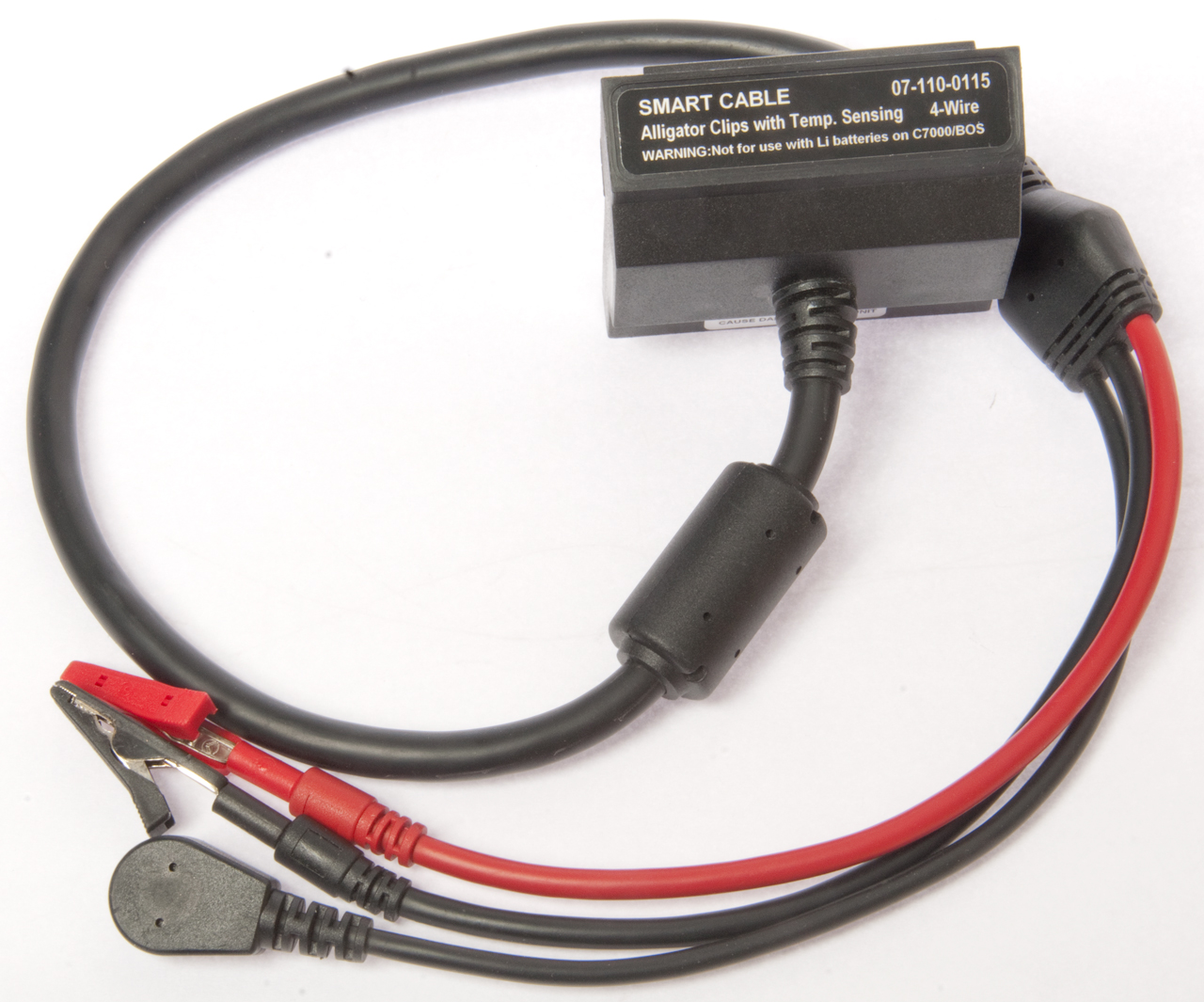

Fig 1 Smart Cable 07-110-0115
Alligator Clips with Temp. Sensing   4-Wire
Why marked: "Warning: Not for use with Li batteries on C7000/BOS"?
Cadex
                      Smart Cable 07-110-0115

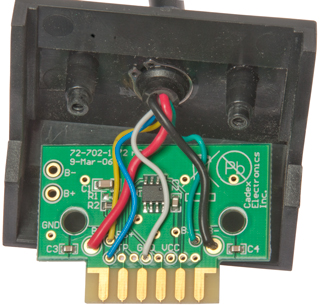

Fig 2 Smart Cable 07-110-0115
Top PCB view (seen just after opening case)
Guess D1 to D4 are polarity protection or voltage limiting since they are across B- and B+.
Cadex
                      Smart Cable 07-110-0115

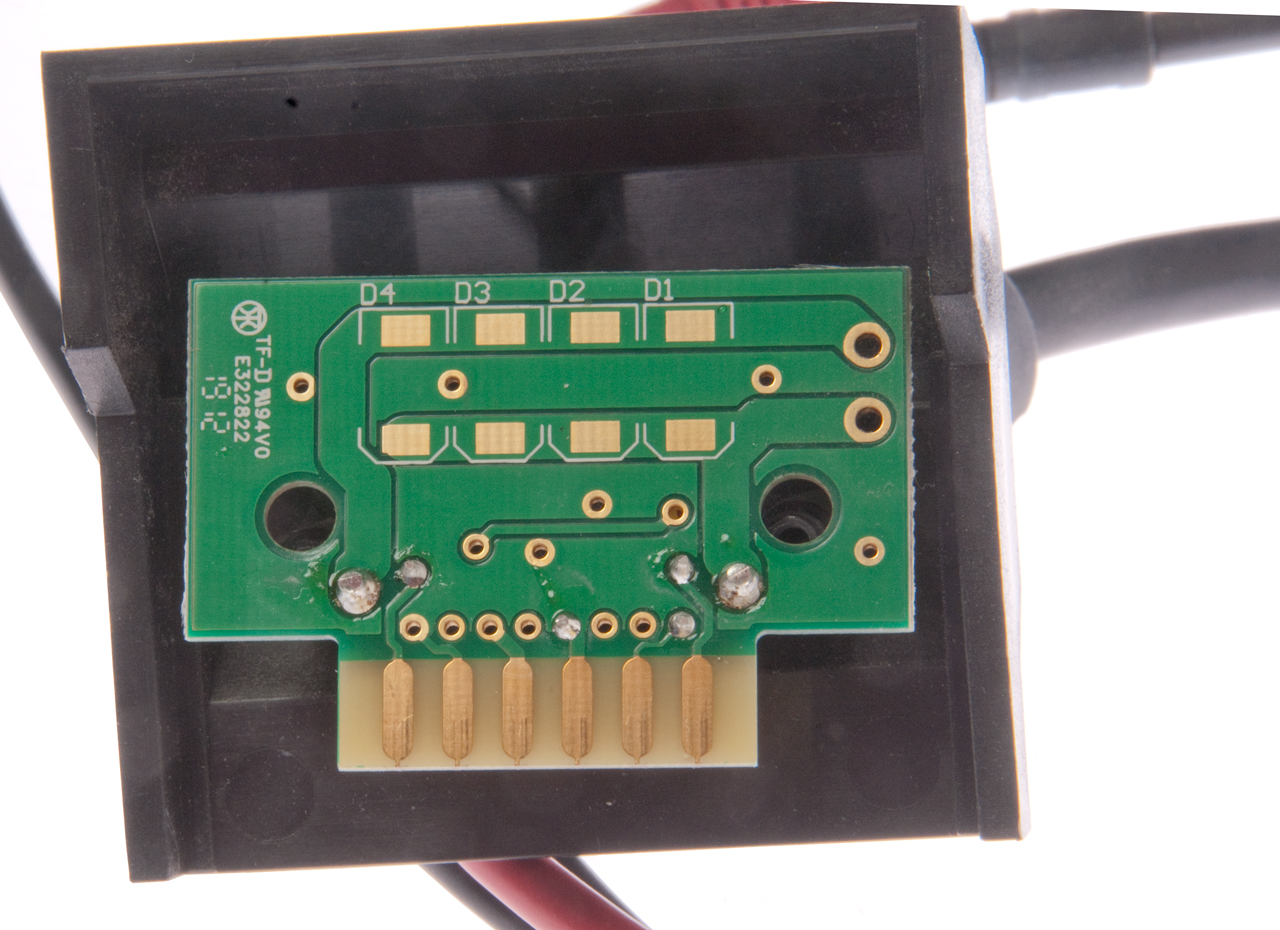

Fig 3 Smart Cable 07-110-0115
Bottom PCB view
93LC86: Microchip 16k Low Voltage EEPROM
can be either 2k x 8bits or 1k x 16bits.
To store custom settings by test fixture.
marked: 72-702-??

Cadex
                      Smart Cable 07-110-0115


Philips M3538A Adapters

This C7200 charger was used by Philips Medical to test their HeartStart defibrillator Li-Ion M3538A battery.

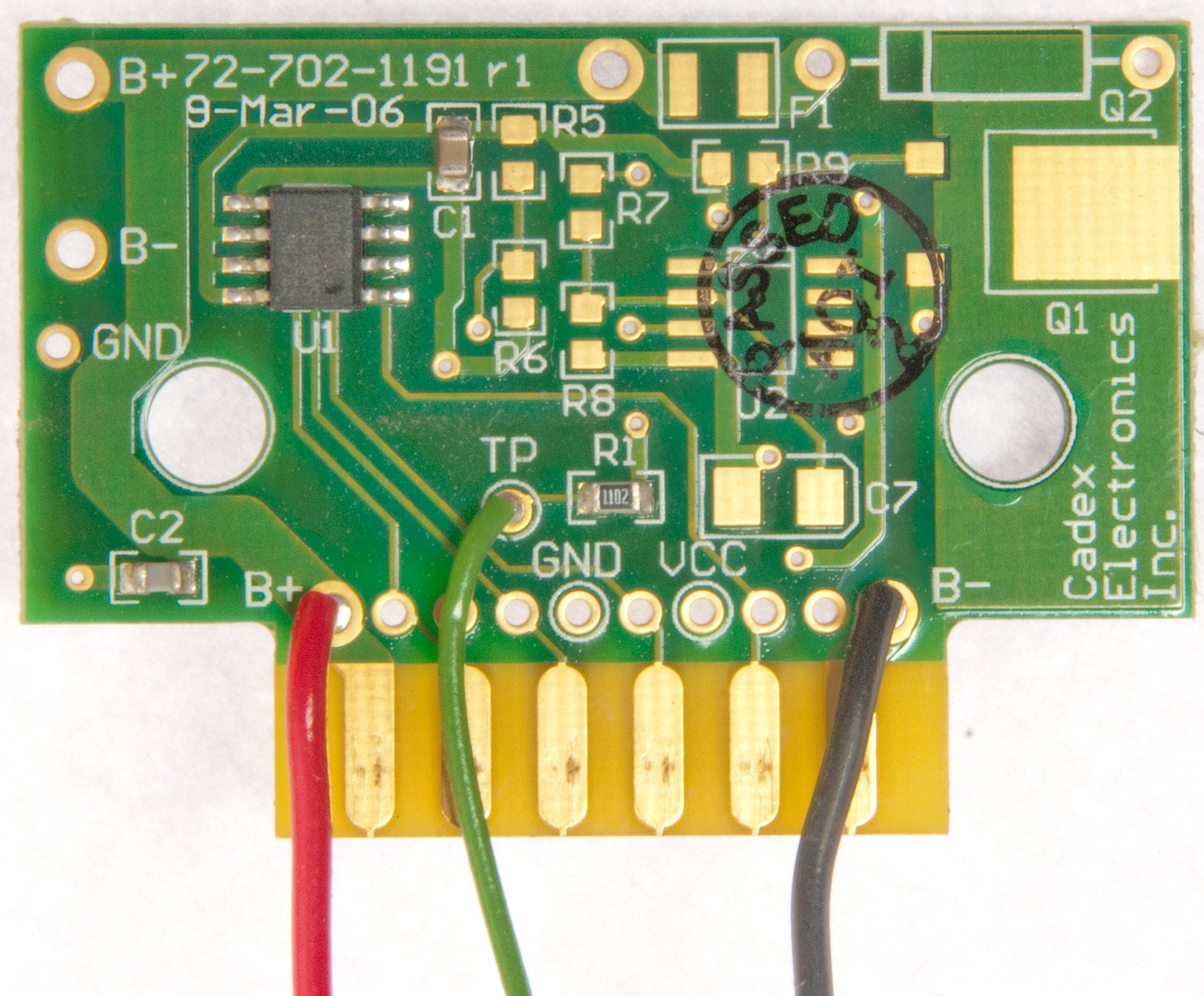

Fig 1 Top view of 72-702-1191 Rev 1
Uses 93LC86 chip with possible pads for another chip?
Also has pads for Q1 possibly a TO-220 packaged transistor.
Cadex
                      battery adatper for Philips M3538A Li-Ion battery

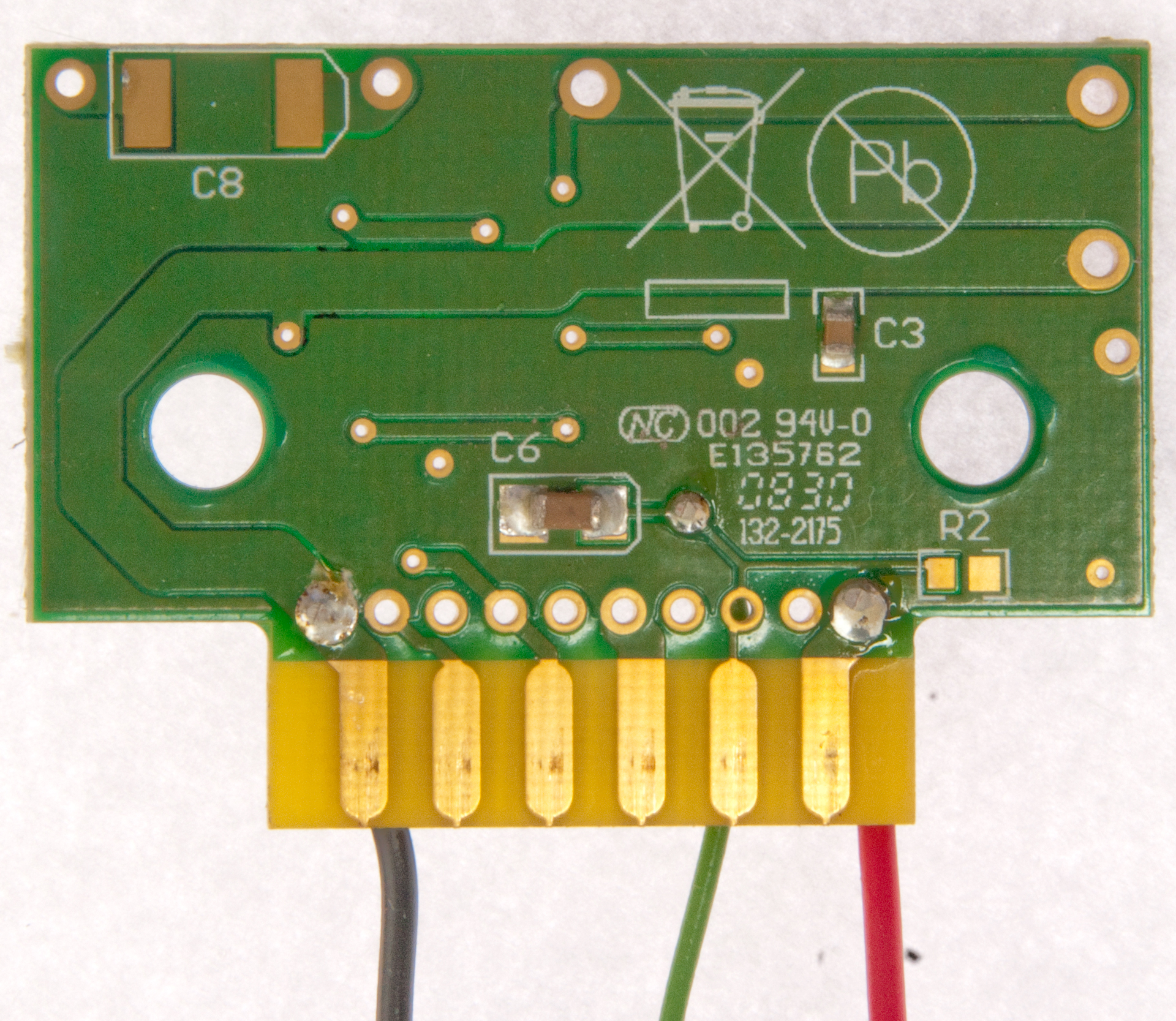

Fig 2 Bottom view of 72-702-1191 Rev 1

Cadex
                      battery adatper for Philips M3538A Li-Ion battery

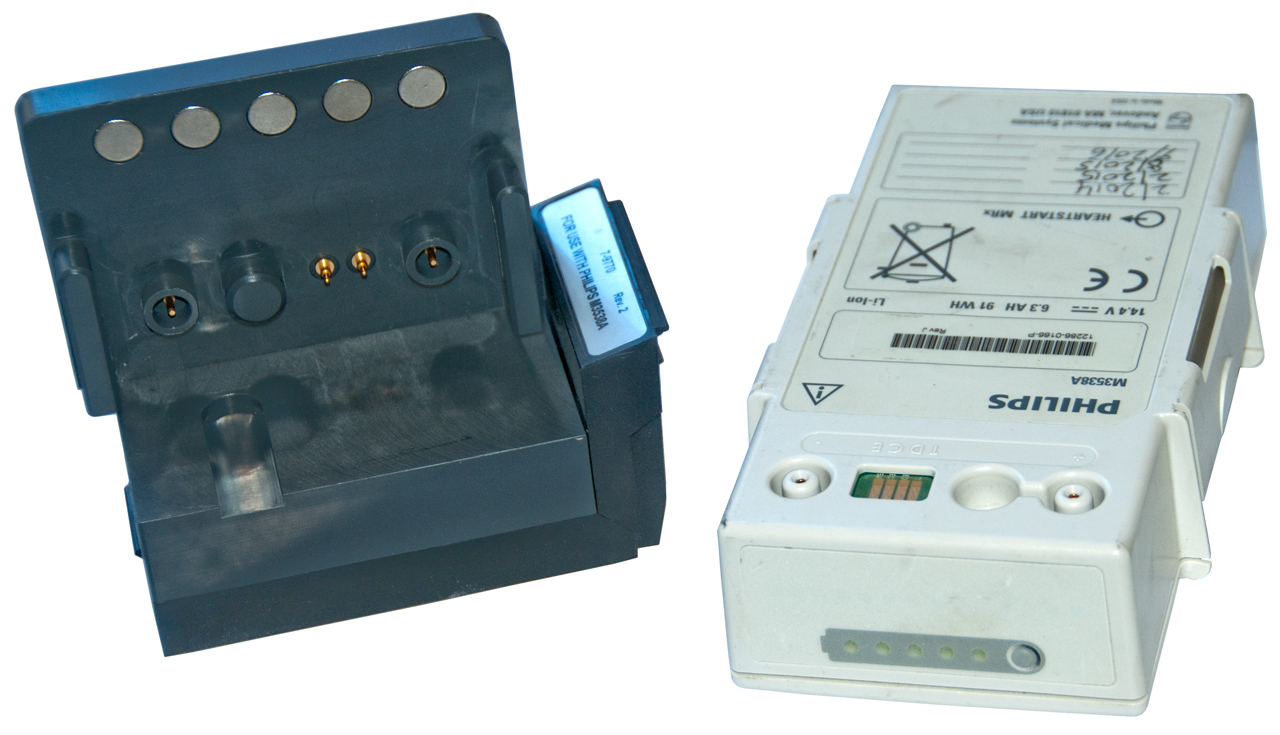

Fig 3 M3538A Battery & Cadex adapter
After running the C7200 when the button
to the right of the row of LEDs is pressed all the LED
show green.
Cadex
                      battery adatper for Philips M3538A Li-Ion battery

Ericsson Prism Adapter 7-4282

Got this as a donor unit to make my own adapter.  Chosen by low price on eBay.

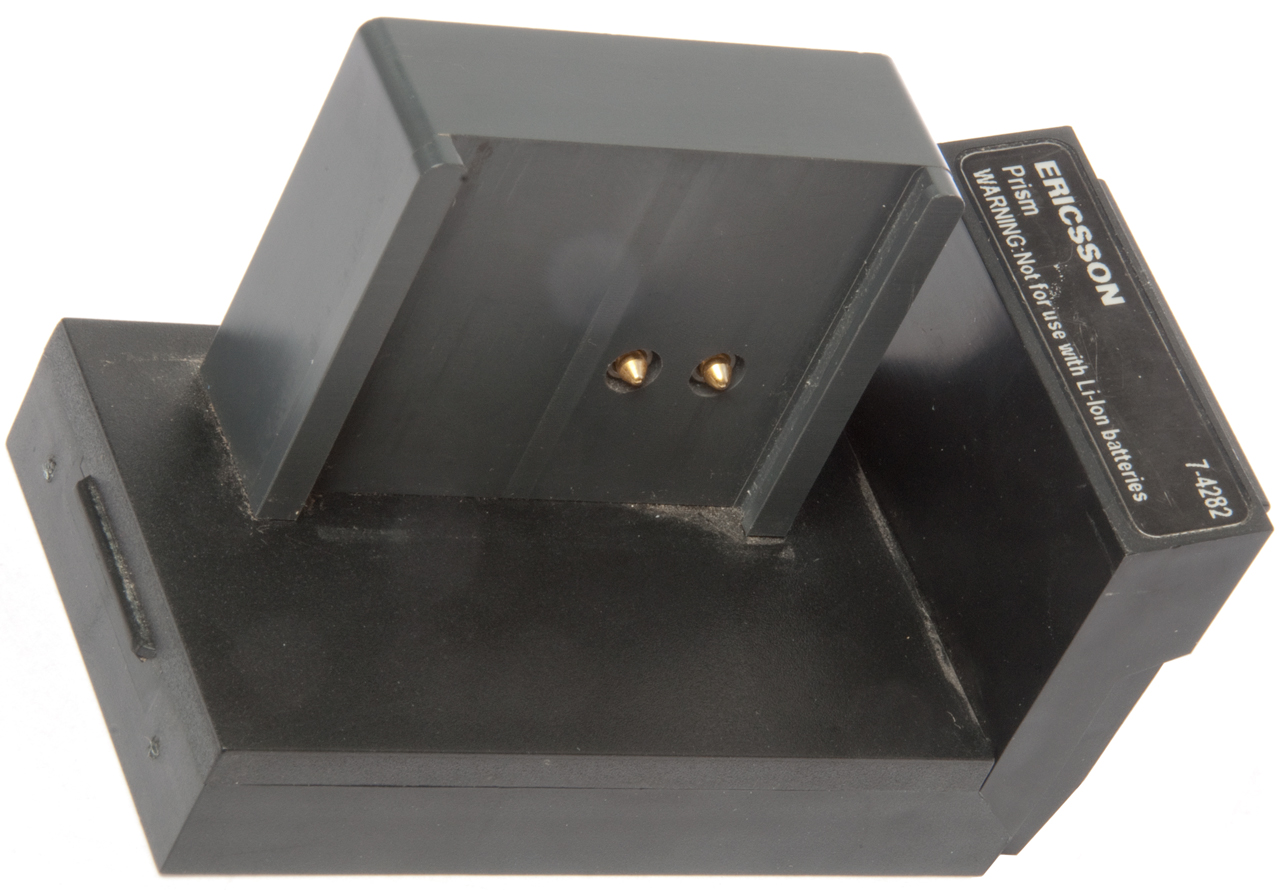

Fig 1 Ericsson Prism Adapter 7-4282
Cadex
                      battery adapter for Ericsson Prism 7-4282

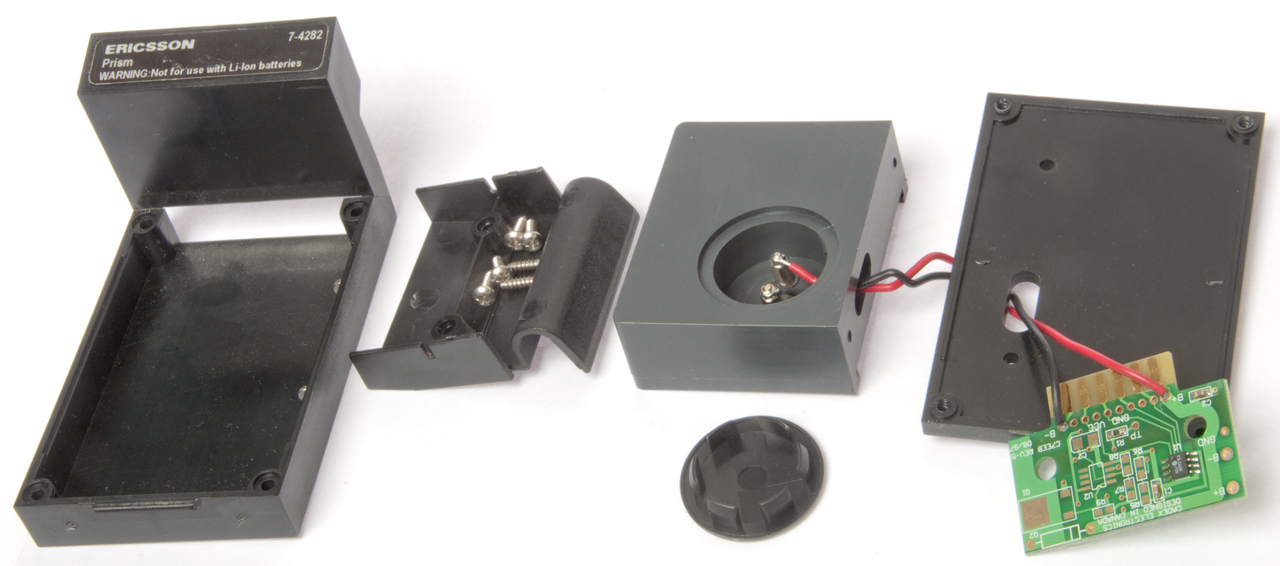

Fig 2  The tray at left and rear cover just to it's right
are common Cadex adapter parts as is the plate and
PCB on the right.  The gray block is a custom part
the the cutout and mounting holes in the plate at
the right are custom.
Cadex
                      battery adapter for Ericsson Prism 7-4282
PCB appears identical to M3538A Fig 1 above, but not marked the same way.

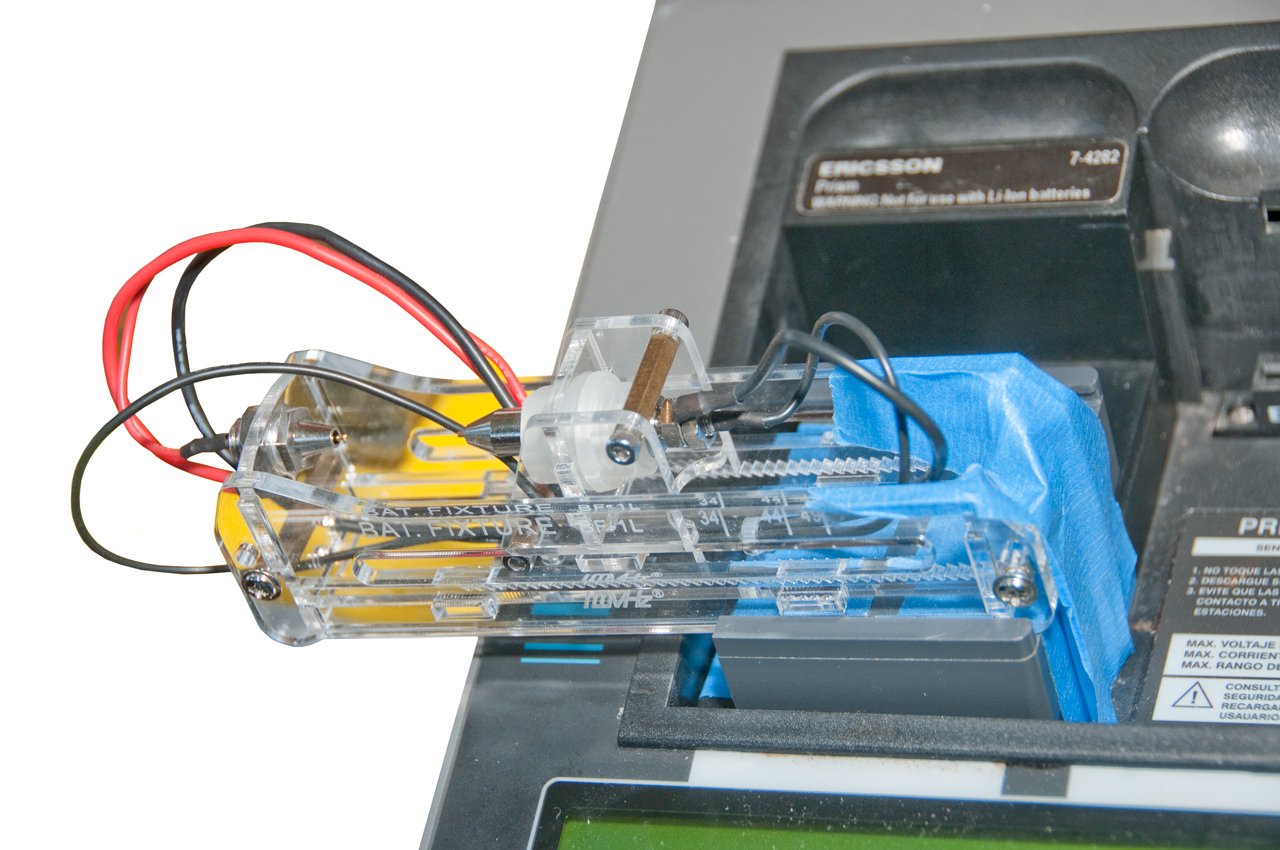

Fig 3 Rough prototype for single cell adapter
This is using the existing parts of the Prism adapter.
Maybe better would be to make a bracket so the battery holder
would stand vertically.  When using this battery holder a slight
bump will cause the battery to fall away from the contacts.
Cadex
                      battery adapter for Ericsson Prism 7-4282

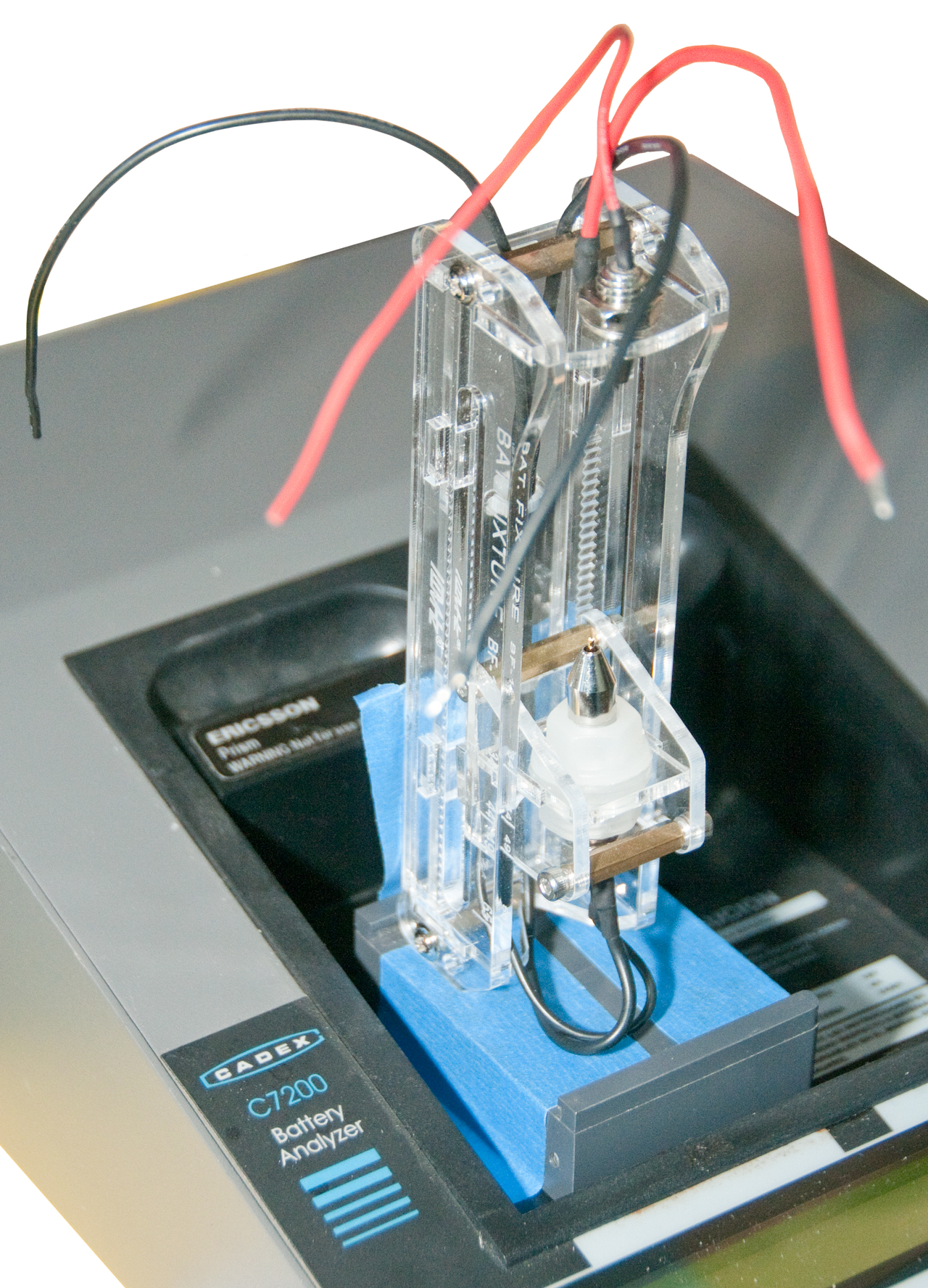

Fig 4 rough prototype for single cell adapter.
Standing with wires up.  This has two advantages over wires down:
1. the teeth that hold the spring loaded contact will grip and
2. the wires and fixed terminal do not need a big hole in the adapter.
Two of these fixtures could be installed side by side.
Cadex
                      battery adapter for Ericsson Prism 7-4282



Related

Batteries
 BA-5590 Family of batteries
Battery Chargers
WKW-7 Power Adapter (Designed for use with obsolete BB-490 lead acid battery)
5590BA Battery Adapter - batteries not included, pack to be made by customer.
BA-5590 Family Battery Eliminators
Vehicle Mounted Battery Chargers (VMBC)

Patents

7622929 Pulse-discharge battery testing methods and apparatus, Cadex Electronics Inc., Nov 24, 2009,
7072871 Fuzzy logic method and apparatus for battery state of health determination, Cadex Electronics Inc., Jul 4, 2006 - State of Health (SoH) and  matrix of Configuration Codes (C-Codes)
7019542 Method and apparatus for battery testing, Cadex Electronics Inc., Mar 28, 2006 -
6778913 Multiple model systems and methods for testing electrochemical systems, Cadex Electronics Inc.Aug 17, 2004 - Battery equivalent circuit with 6 ea R, 4 ea C & 1ea L.
