Background

This showed up on eBay listed as "ROCKWELL COLLINS PROGRAMMER NO TEK DATA FREE SHIPPING".  When I started playing with the keyboard and watching the LCD dot matrix display I discovered that this is a data loader for the USQ-113 comminucations jammer, like used on the EA-6B Prowler (Wiki).

Description

Switches

JAM or MON toggle
ON or OFF toggle

Display

The LCD dot matrix display seems to only be used as a 2 line by 16 character character display.
In many cases if you press an invalid key the display shows BAD KEY in the lower right.

Keyboard

The keyboard is a 5 row by 4 column with some keys having a yellow, green or blue shift meaning.

C-1
C-2
RUN
STOP
ZERO
TTBL
1
CTBL
2
STBL
3
RCL
RNG
TBL #
4
FMT
5
TIME
6
DEL
MODE
FM
7
CLK
8
RCD
9
-
STO
HOLD
.
FRZ
0
LD
CLR

If a correct key sequence is pressed an asterisk(*) is appended to the line and numeric and decimal point keys are active.

TTBL "TARGET EDITOR"
CTBL "COMM2 EDITOR" Baud rates can be set from a list between 300 and 9600 or can be set like 300.123.
STBL is the ??? table

TBL#: toggles between TTBL #1 and TTBL #2

Batteries

4 each AA

Photos

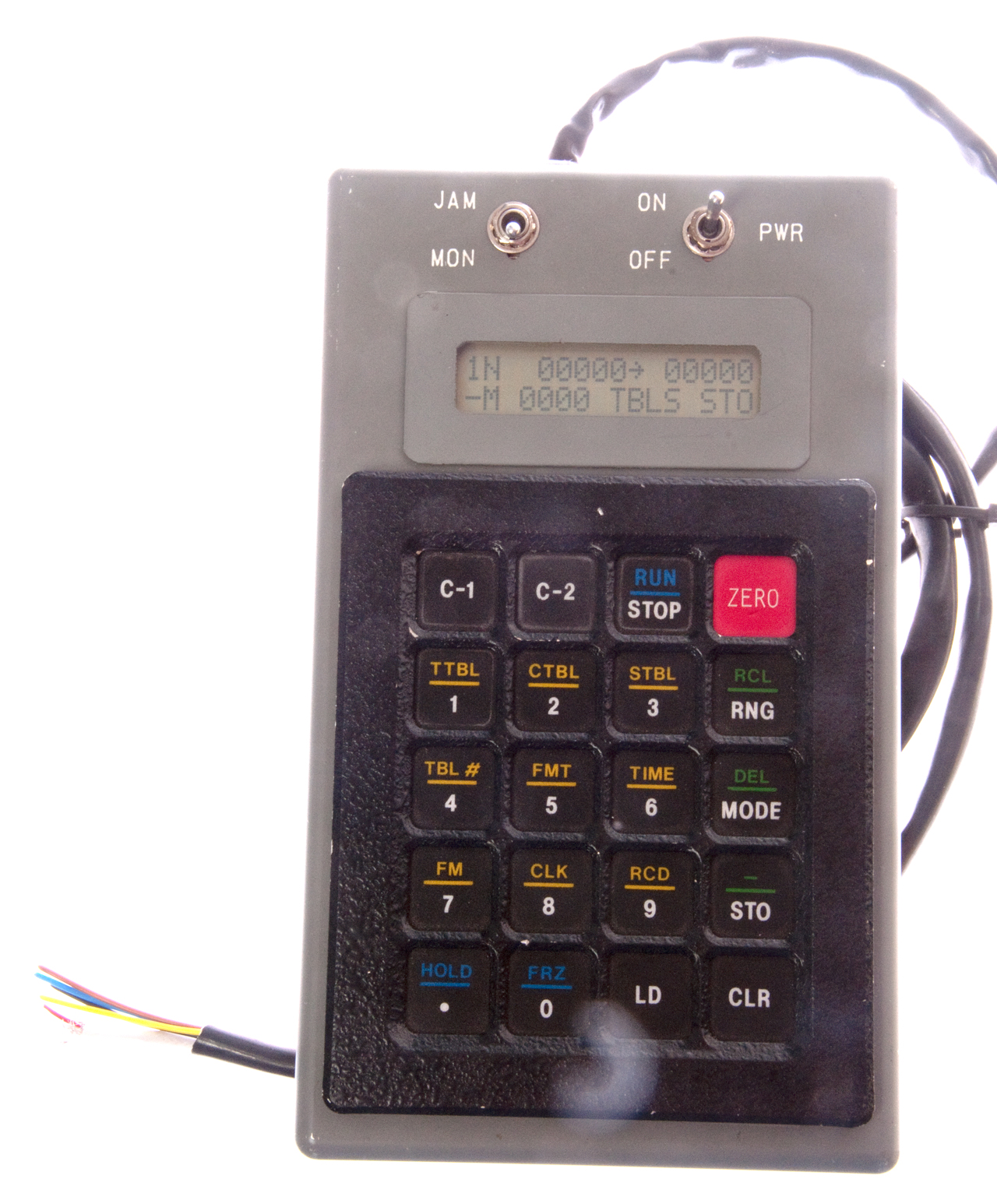

Fig 1 Front Panel showing Mode 0 (USQ-113) input screen
Keypress: Mode, 0, 0 wait after USQ-113 then this screen.
IN  00000> 00000
-M 0000 TBLS STO
USQ-113
                      Data Loader
Fig 2 Power On Screen (after TST PASS)
NO TBLS  BATT  OK
TTBL #1 >
USQ-113
                      Data Loader
Fig 3 USQ-113 screen
Keypress: Mode, 0, 0
USQ-113
                      Data Loader

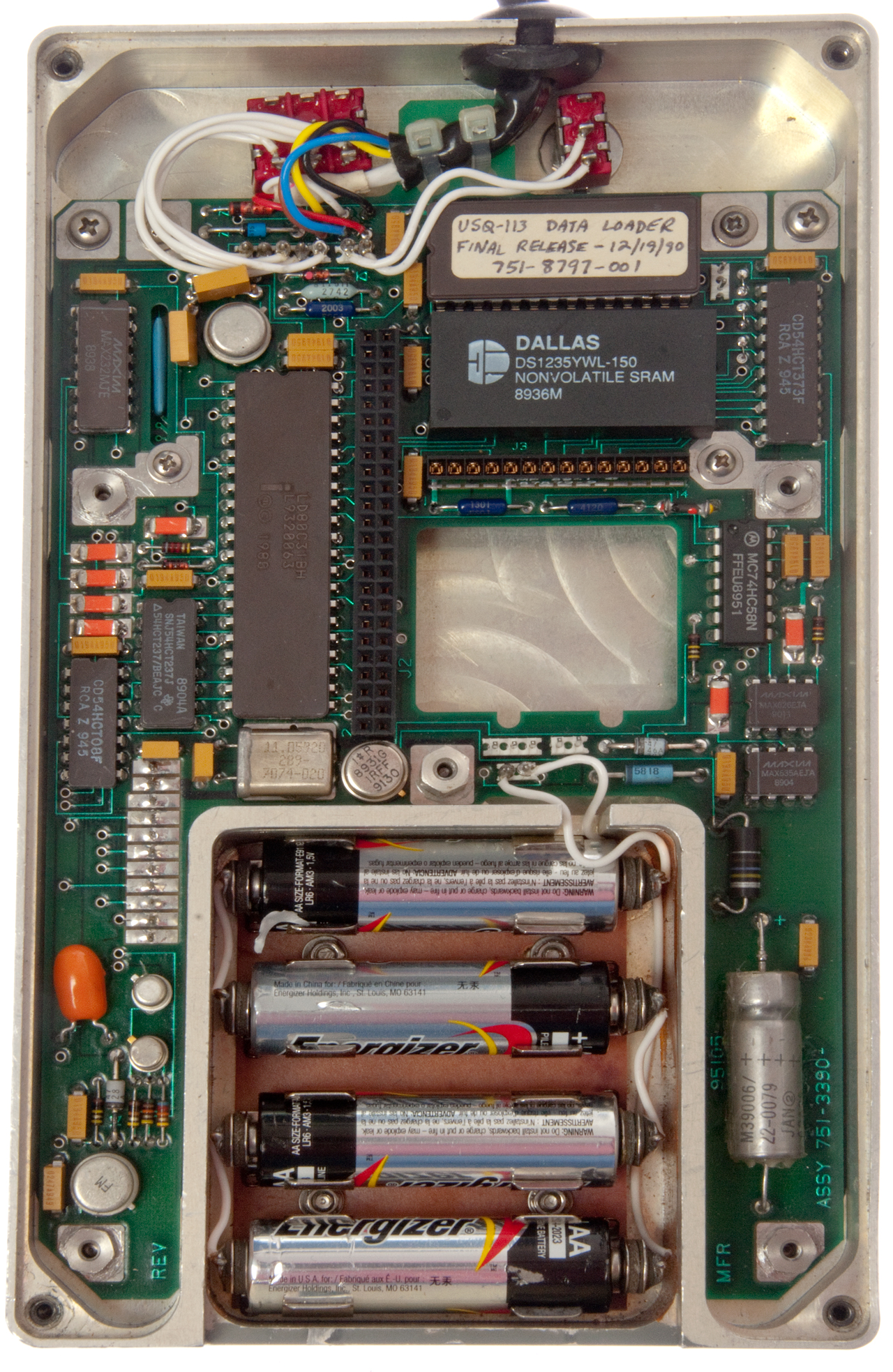

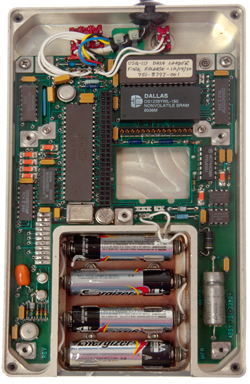

Fig 4 Inside back & battery covers removed
USQ-113
                      Data Loader
