Signal Design, Inc. 65630 Audio Recorder
RD-609/TSQ-164 Communications Recorder

General Information

Signal Design, Inc. was bought by Dynamic Instruments, San Diego, CA.
Their CR/VR Series looks like this unit.
Here is an image from the DI web page of a CR1100

CR/VR Series
The CR1102-1 & CR1104-1 are ruggedized 2 or 4 channel analog audio recorders that use a standard Phillips cassette to archive audio. The recorder has optional RS-232 & IEEE-488 communication ports for remote control capability. Physically it is a 1/3 rack configuration (3 can fit into a 19" rack by 5.25" high). The recorder runs on 115/230 VAC or 28 VDC power.

Photo Front - ON-OFF, 6-pin Headset, LCD, Keyboard, slot for tape cassette

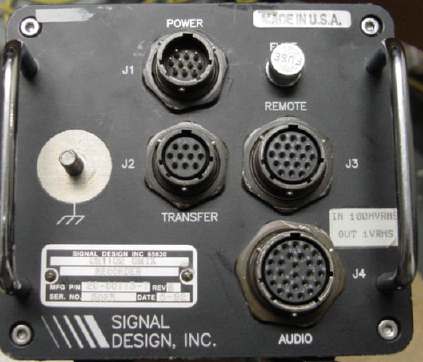

Photo Back - It has:

• J1 Power Connector that looks just like the MT1060DS Bendix 9507 PT02E-12-10S (does mate with Newark 93F3378)  The Newark p/n 93F3378 includes the ITTC  MS3116F12-10P connector and the Cannon p/n 057-3007-000 end bell assembly
• J2 Transfer (looks like the socket version of J1)
• J3 Remote, a 19 socket connector
• J4 Audio, a 26 socket connector
• J5 is U-228 (6-pin) audio connector on front panel
• J6 IEEE-488 interface option

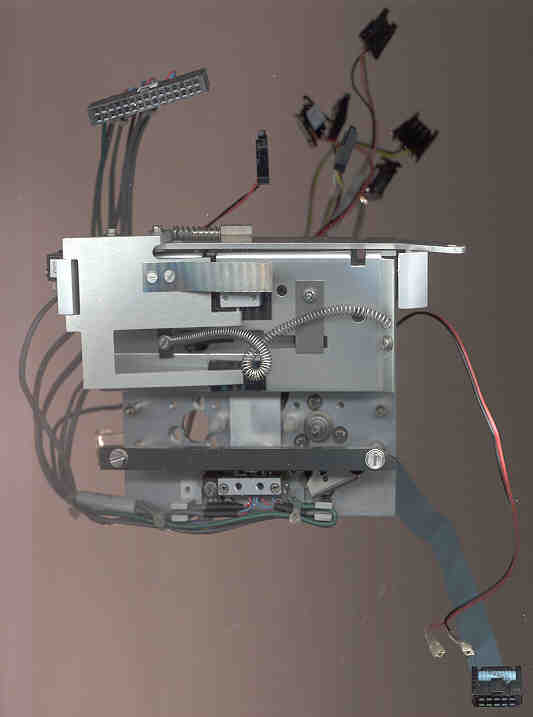

Photo of the tape transport removed from the main unit - on the left side you can see a hole with three smaller holes around it.  This would be for a second capstan motor.  I don't know if that would be for running in both directions, or an option.  For every electrical item on the deck there is a short cable with a plug.

RD-609/TSQ-164

I don't know the difference between the RD-609/TSQ-164 and the other models. Photos of the RD-609 show that it does NOT have the IEEE-488 interface.  TSQ would mean Ground Transportable, Radio, Special or Combination.
Jerry Proc has a little about the TSQ-164 on his web Masset station web page.

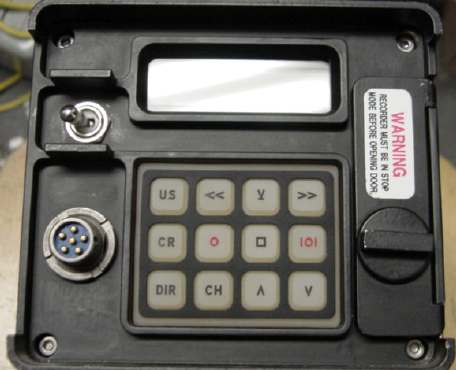

Photo Front - Looks the same as the one above
Photo Back - Looks the same EXCEPT there is no IEEE-488 interface connector

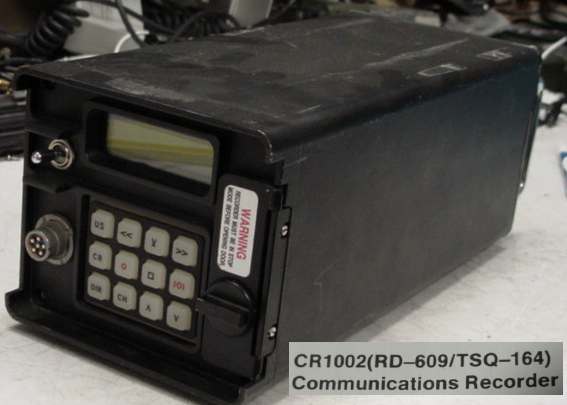

Side & Photo Label - CR1002(RD-609/TSQ-164) Communications Recorder

Spread sheet in pdf format explaining the controls

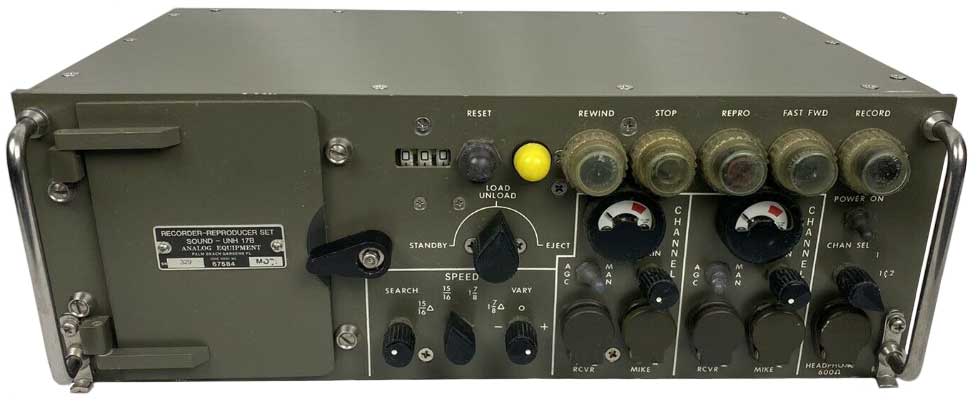

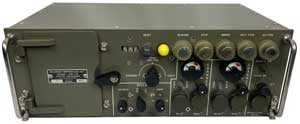

UNH-17 Recorder-Reproducer

This is a much larger cassette tape recorder.
Tape speed: 15/16 IPS or 1-7/8 IPS.
Two channels each with Line or Mike inputs. (left and right or independent)
600 Ohm headphone output. (select Chan 1, 1&2 or 2?

Manual: TM-32-5835-005-14-P, RECORDER-REPO SET, SOUND, AN/UNH-17A (NSN 5835-01-023-4332)

Foot swtich, Power & Audio connectors on rear panel 230 VAC, 115 VAC & 28 VDC fuses on rear panel
