KD-100 Key Tape Disintegrator

© Brooke Clarke 2012

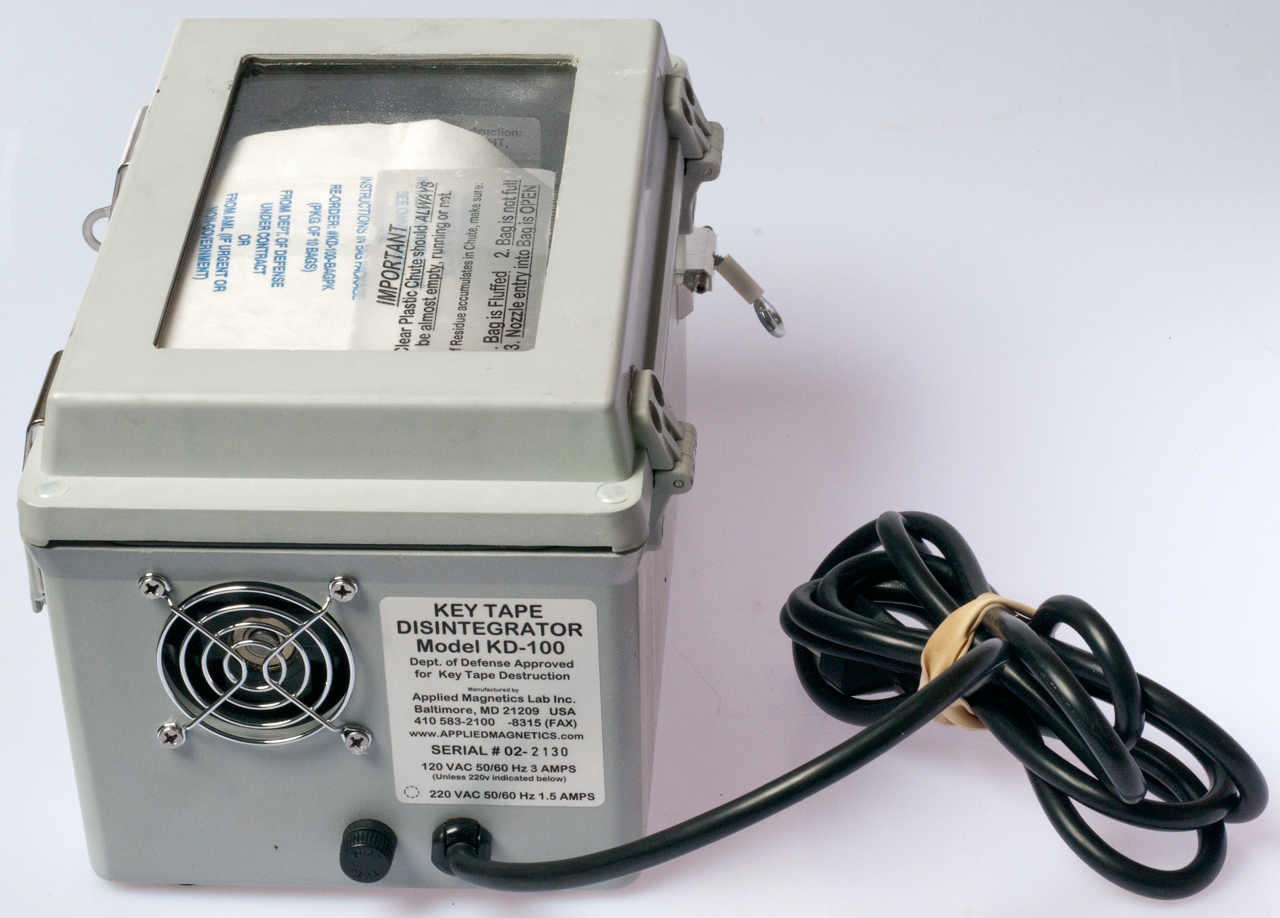

For decades cryptographic keys have been distributed on paper tape using couriers.  Once the key tapes are out of date they need to be destroyed.  This could be done by burning them or using some government approved device.  This KD-100 is an approved device for disintegrating paper, PMP (Polyester-Mylar-Polyester) or plastic key tapes.

This is a first generation machine with the brass cutting drum that's rated for 160 minutes.  The current black cutting drum is rated for 750 minutes.  The current machines are designed to work with a ShopVac which is much more practical than constantly changing the small hand vacuum type bag.

It takes 4 seconds to disintegrate a 10.2" key tape

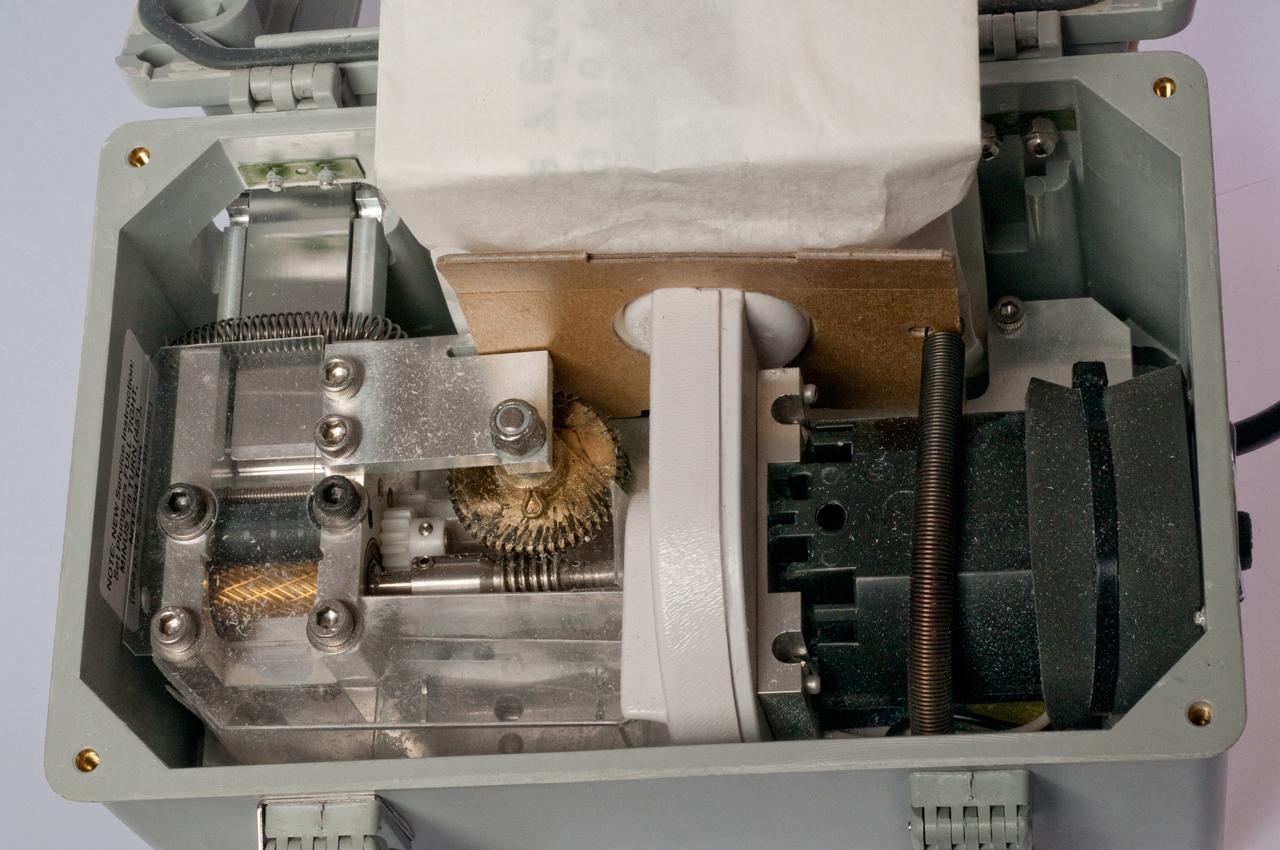

It grinds up the tape into powder and has what amounts to a vacuum cleaner bag to collect them.  Housing is a NEMA 4X enclosure.

7090156 Destroying Planar Material, C.A. Castronovo, Aug 15 2006, 241/29; 241/30; 241/260.1 - KD-100
7100852 Helical Cutting, C.A. Castronovo, Sep 5 2006,  241/60; 241/152.2; 241/242; 241/260.1; 241/285.2 - KD-100
7111801 Destroying non-homogeneous loads using zero-clearance cutting systems, Double-Secondary Shredders in Zero-Clearance Cutting Systems,
7204436 Residue Exit for Security Destruction Machines, C.A. Castronovo, Apr 17 2007, 241/29; 241/158 -
7240864 Helical Cutting, C.A. Castronovo, Jul 10 2007, 241/30; 241/89.3; 241/260.1 - KD-100
7270282 Screenless Disintegrators, C.A. Castronovo, Sep 18 2007, 241/29; 241/160 - KD-100
7334747 Destroying Planar Material into high Security Pieces, C.A. Castronovo, Feb 26 2008, 241/29; 241/30 - KD-100
7357340 Destruction Method with 45 Degree Feeding, C.A. Castronovo, Apr 15 2008, 241/30; 241/223; 241/242 - KD-100
7448562 High-security destruction including sacrificial cutting followed by Non-Sacrificial Cutting, C.A. Castronovo,  Nov 11 2008, 241/29 - KD-100
7500625 Feeding Mechanism, C.A. Castronovo, Mar 10 2009, 241/30; 241/222; 241/242 - KD-100

7871025 Feeding Mechanism Auto-Adjusting to Load for use in Automatic High-Security Destruction of a Mixed Load, and other Feeding Systems, C.A. Castronovo,

8100353 Self-Healing Cutting Apparatus and other Self-Healing Machinery, C.A. Castronovo, Jan 24 2012, 241/30; 241/242; 241/286 - KD-100
