3 D Cell with Prefocused Lamp Eveready

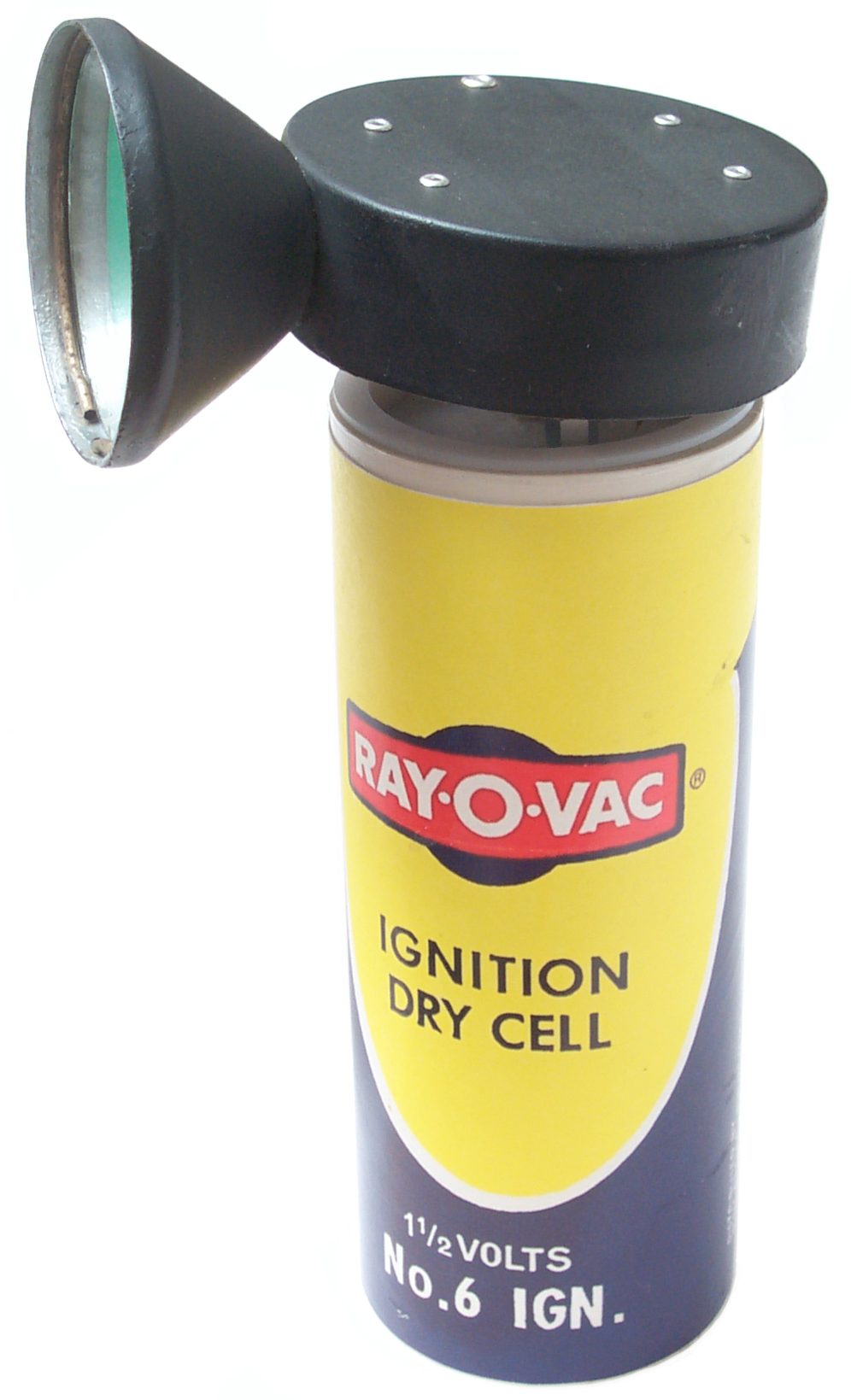

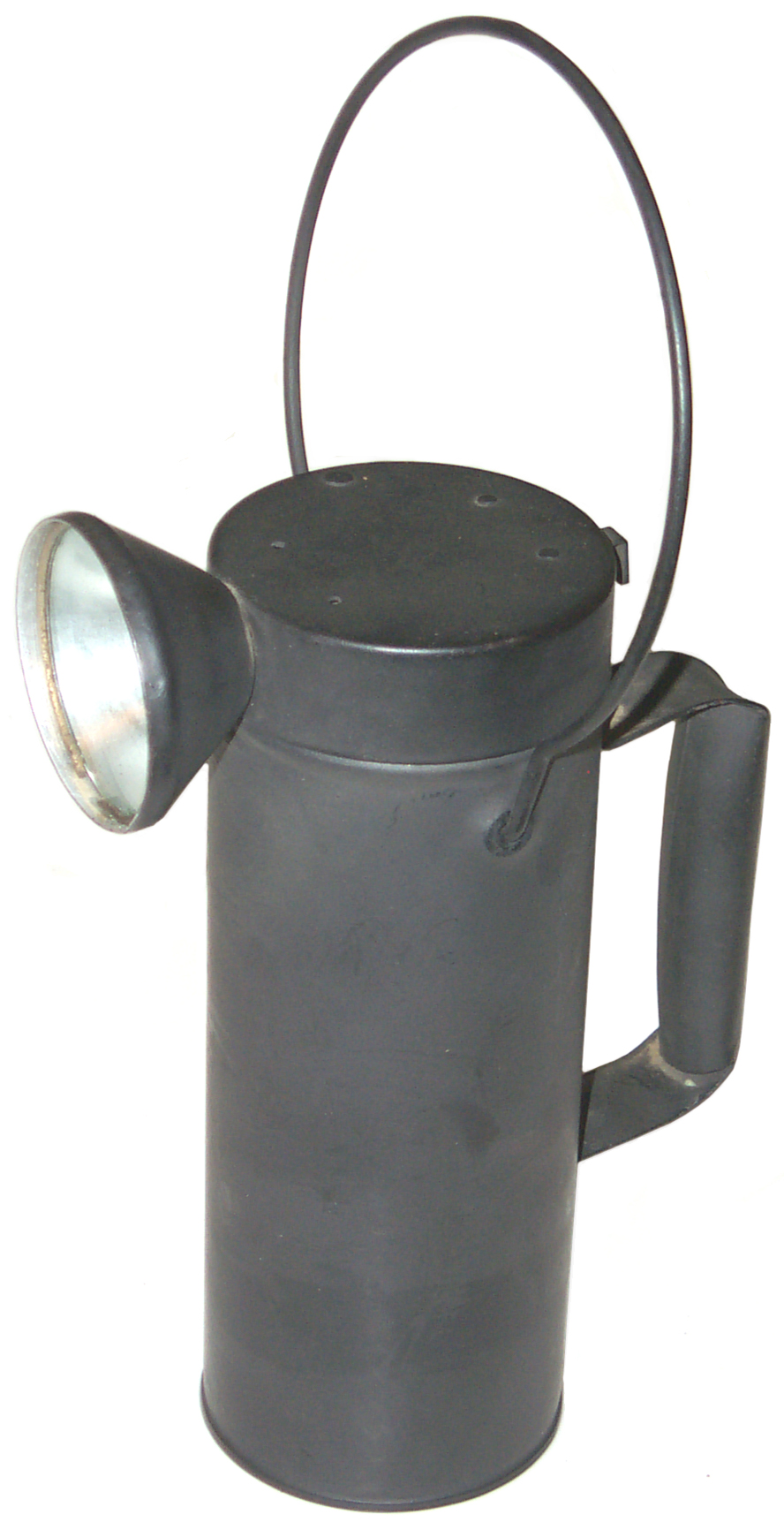

D46279 - single No. 6 dry cell
Burgess BL-6
Navy Battle Lantern

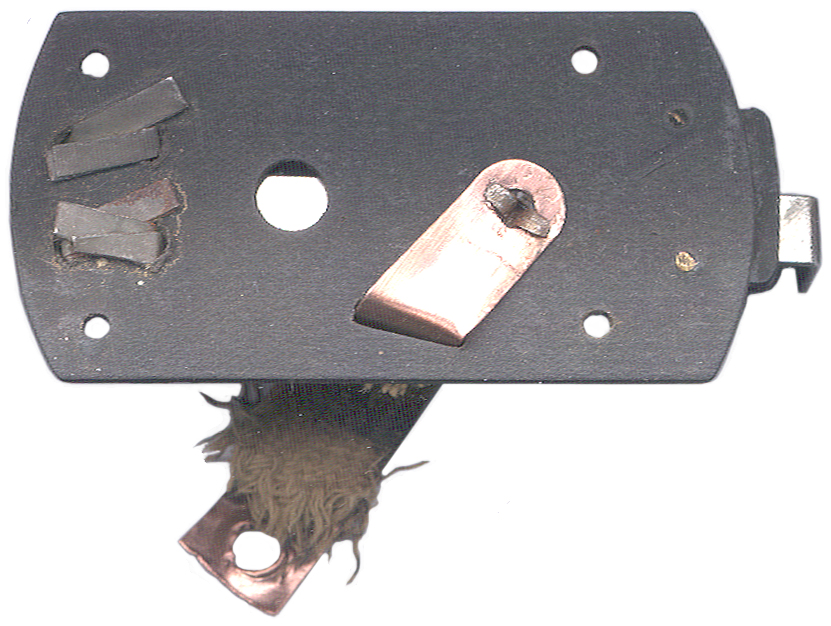

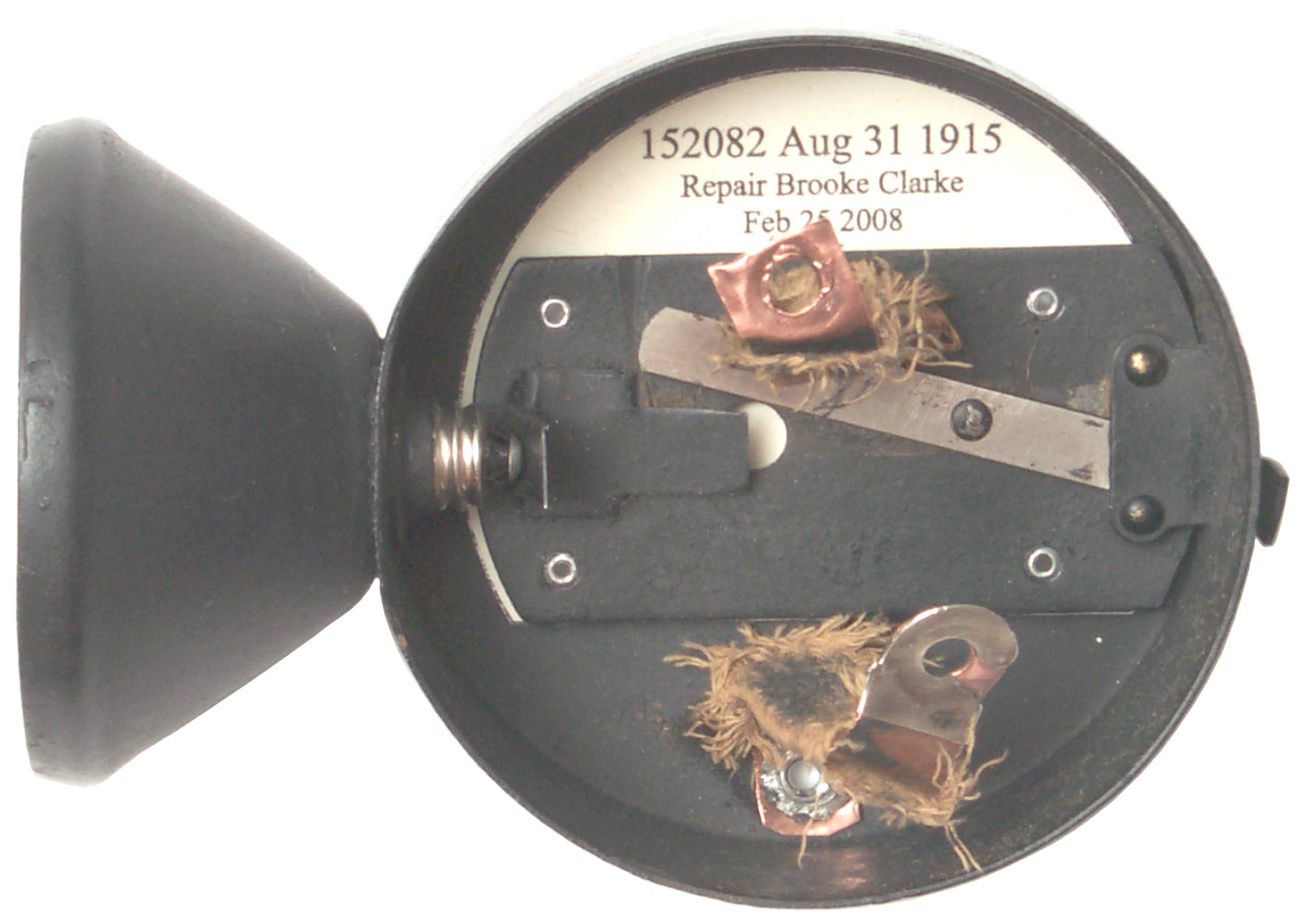

1152082 Electric Flash Lamp or Lantern

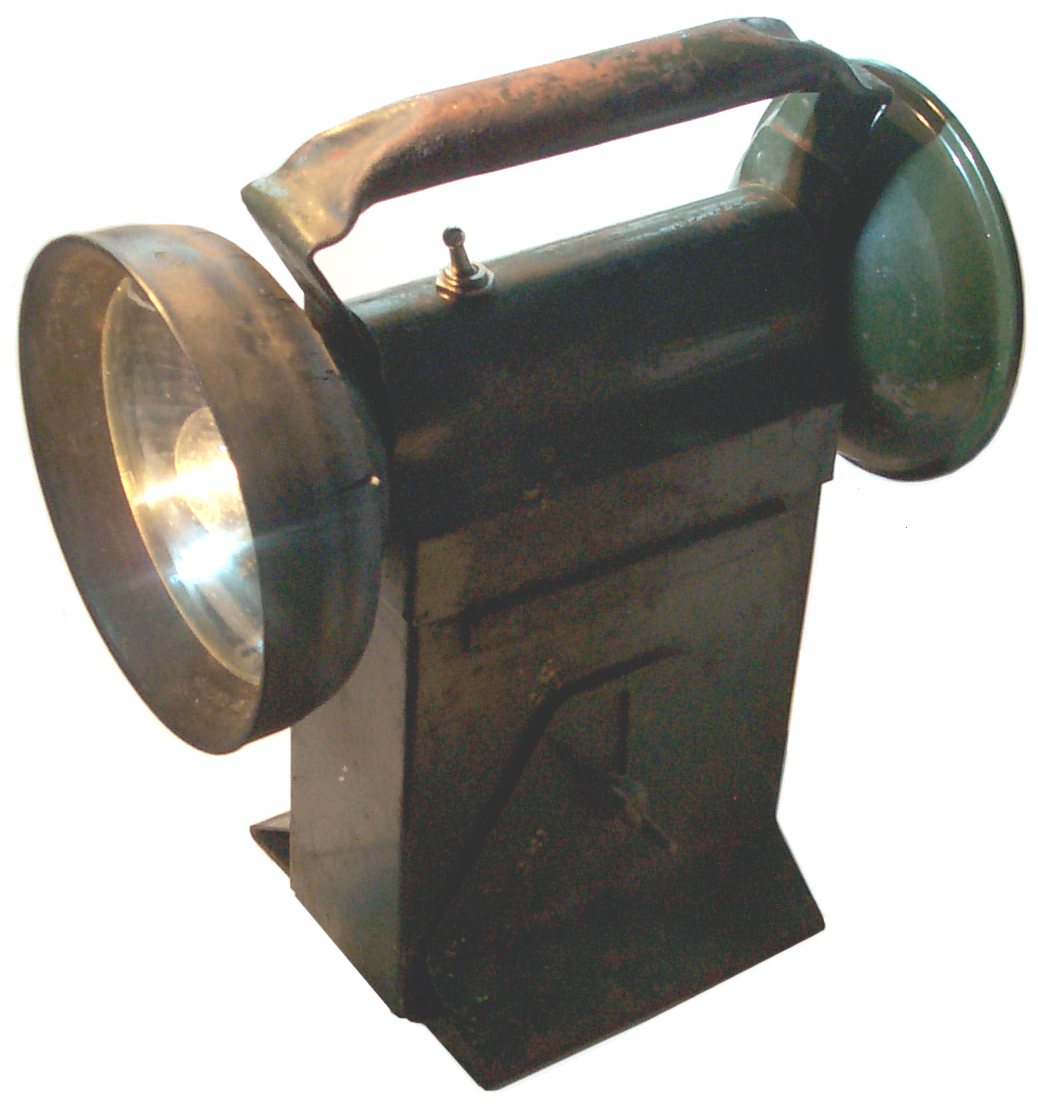

"Bell System" Dual Head Lantern
Wheeling Stamping Co

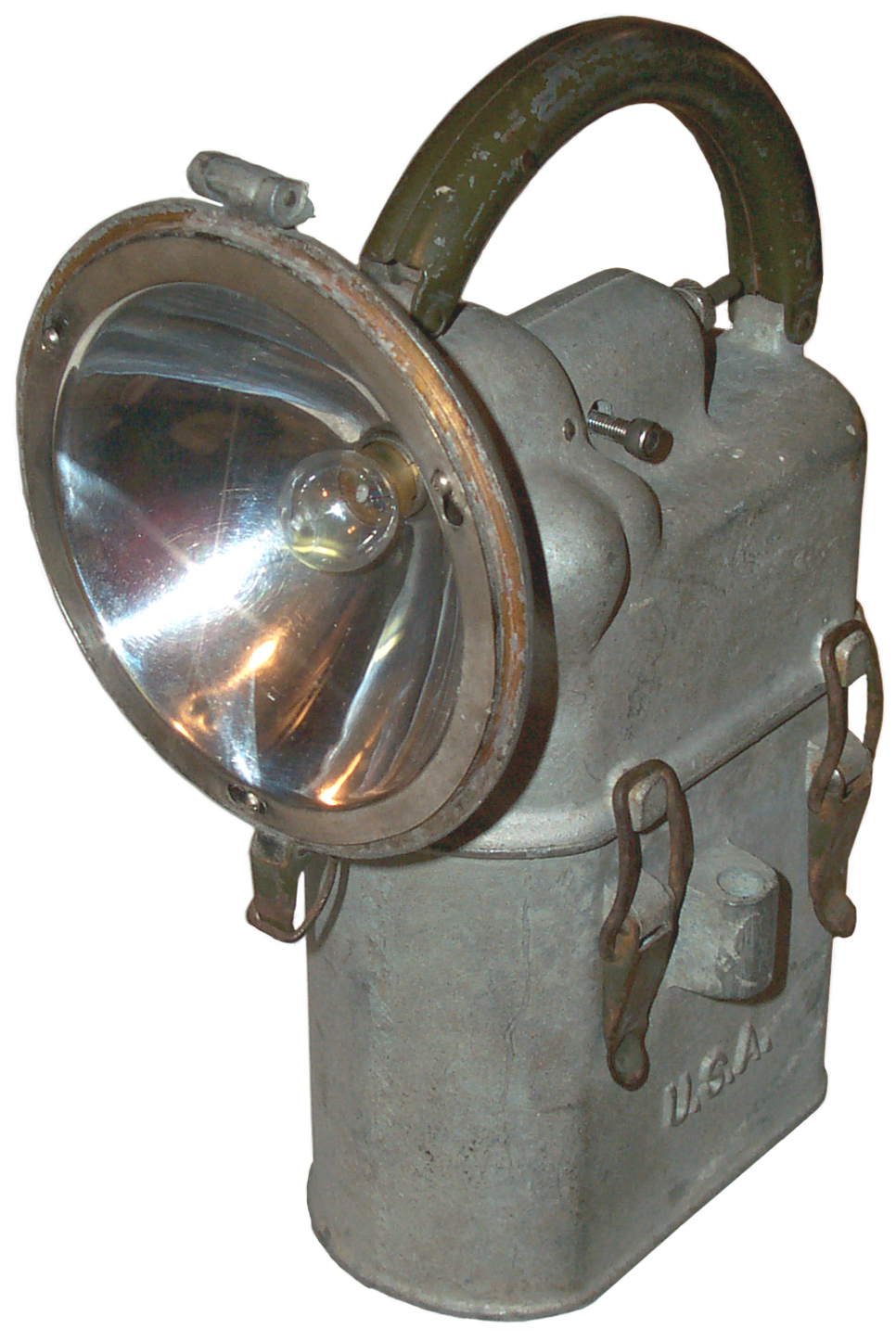

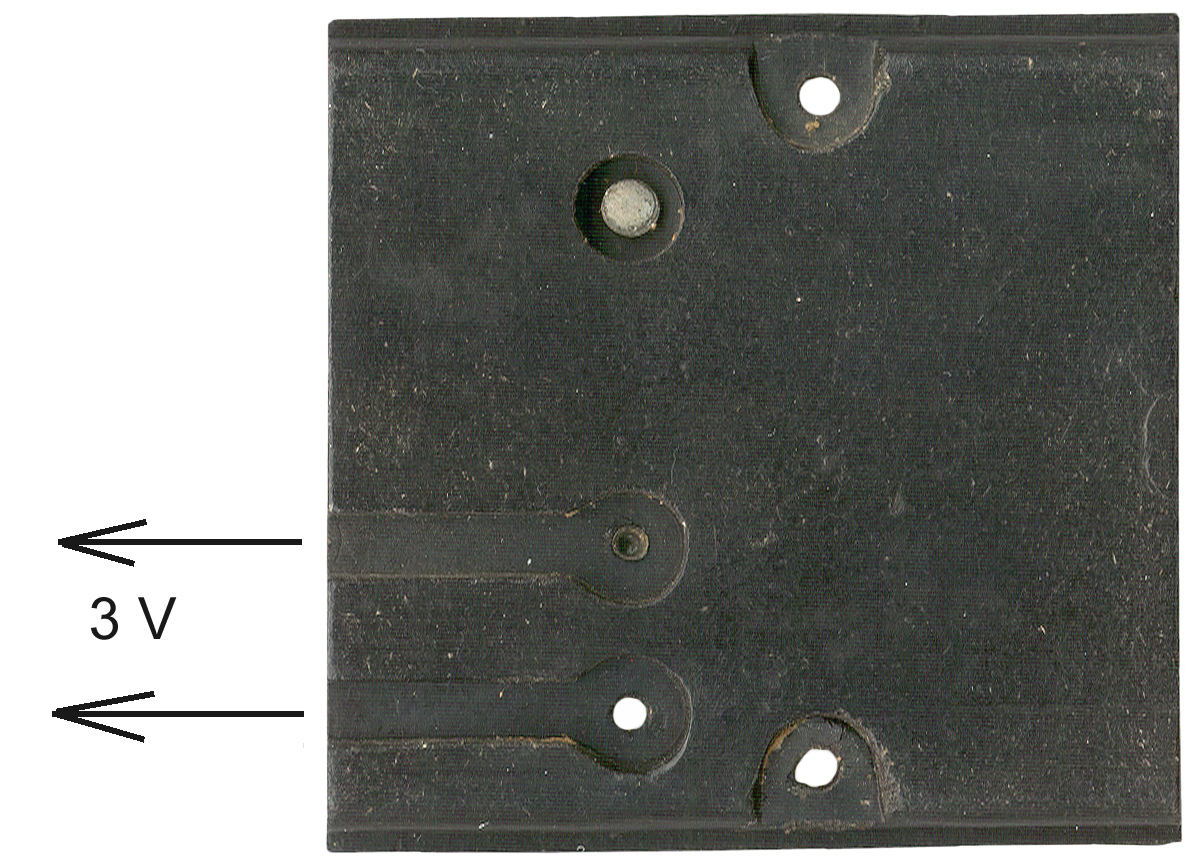

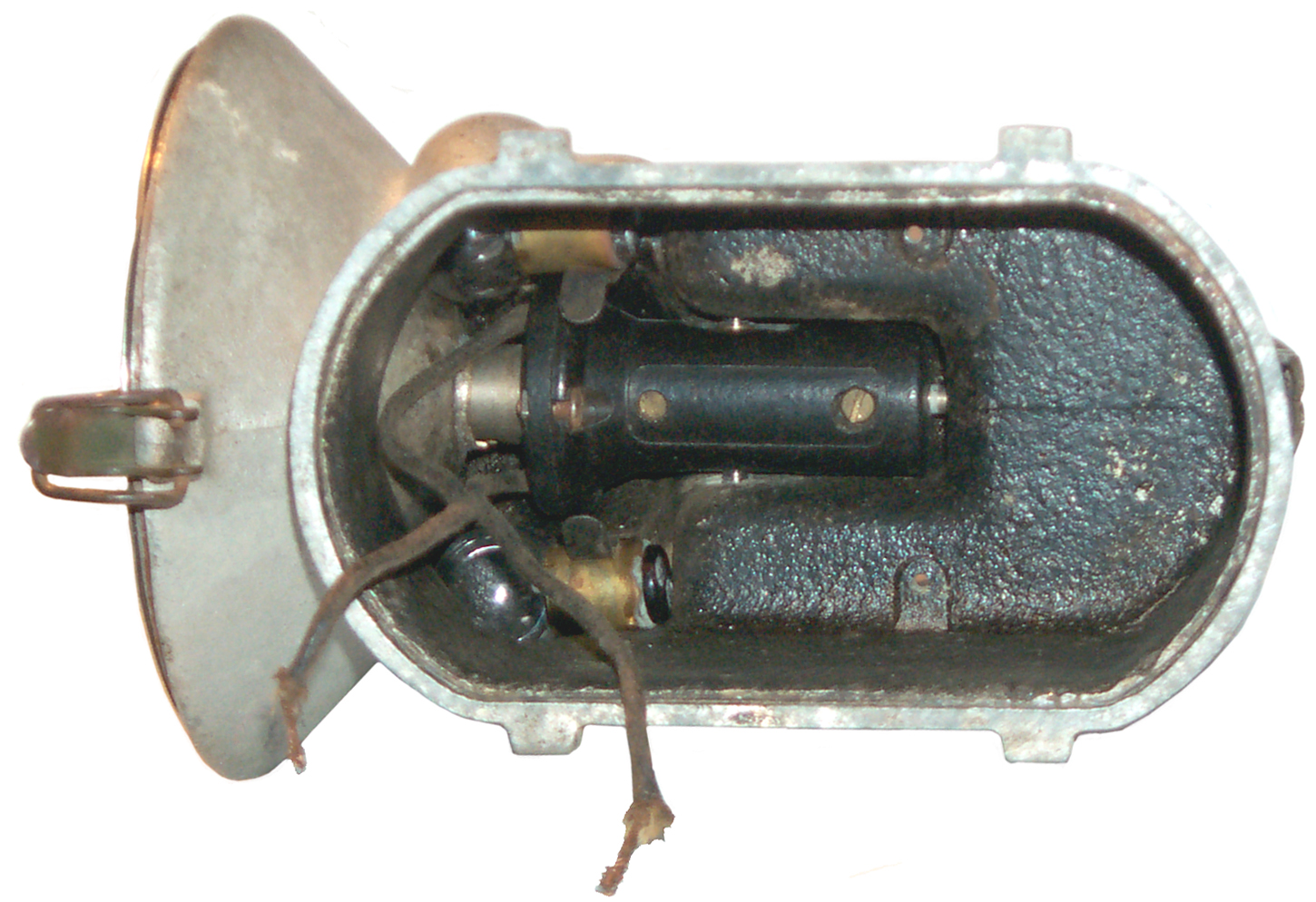

Grether Fire Lantern

A portable source of light probably started with a cave man carrying a burning stick of wood.  There have been many portable light sources based on burning something.  Once the dry cell battery became available flashlights became more popular than they were when a lead acid or other wet battery was needed.
This web page is being done by adding a section after reading something on the internet, either an eBay item or reference material.  Once an inventor name shows up then his inventions are grouped or the company the invention is assigned to has a group of related products.

I have included on this page what most people would consider a flashlight, but also any light that uses the No. 6 Dry Cell for it's power.  Also some fixed battery powered lights like used on barricades or in purses, &etc. that are battery powered.  And some closley related patents like anti reflection coatings or earlier lights.

Not on the page are patents related to Flashlights as used on cameras.

Also see my Fire web page for lights that work with fire and/or the Lighters web page.

The key components of a portable light source are: Source of power, A way to start and stop the light source, A way to convert the power into light ,A way to control the light.  For a flashlight these would be: Dry Cell battery, switch (aka circuit closer), lamp with a filament, reflector and/or lens.

Lamps

Table of Lamp Photos at 2X actual size.

# 14 T-3½ Bulb minature  screw base 2.47 V @ 300 ma 0.5 MSCP	25A like 222 prefocused TL-3 Bulb minature  screw base	# 27A  PR4 T-3½ Bulb single contact  minature flange 2.33 V @ 270 ma 0.4 MSCP 2.25 V @ 250 ma no CP rating not spherical	PR6 bulb from MX-991 angle head army F.L.	Left Pocket Flash Light is the same as the 1047525 patent. Right is slightly newer, looks like patent. Notice left GE223 lamp has white bead on filament wires and  has clear glass. Right EVEREADY MAZDA bulb has white reflector. black paing "2.5 V" As received  both of these lamps have not  wanted to come out. After soaking with Kroil a few days one was loose and the other came out with  Scotch tape bent into "U" to grip lamp.		This is a prefocused lamp like the 222 only the lens is 10.8 mm dia instead of the 5.5 mm. Markings are: VICTOR X JAPAN 2.5V used in the Victor Pocket Flashlight	GE 1491 Dual Bayonet Prefocused 2.4 V 0.8 Amp 1.9 Watts Used in Dual No. 6 Dry Cell Navy Battle Lantern
GE 407 Flasher Lamp has bi-metal strip 4.9 V 0.3 A 50 hrs 6 V lantern or baricade	LED E10 base 2 to 12 V 1 Watt see: E10LED

GE 223 Lamp is rated for 5 hours at 2.25 Volts @ 0.25 Amps. After measuring the I-V curve from 0 to 215 ma and ploting in Excel shows the first few points coming up from zero to be off the straight line you get afterwards, so eliminating them and plotting from 125 to 215 ma gives this straight line:
I(ma) = 67.259*V + 104.9 with a fit of R2 = 0.9982
solving for 2.25 volts gives I(ma) = 256 ma, matching the published data pretty well.
solving for 3.0 volts gives I(ma) = 307 ma  Would that burn out the bulb???

Testing a PR4 lamp rated 2.33 V @ 270 ma shows it's very close 2.4 V @ 271 ma.  When the voltage gets to 3.7 the current starts to decrease with time, like the resistance is going up with time which might happen is the filament is starting to boil away.

Although given for currents close to the rated current these relationships give a feel for how incandescent lamps work.
Light ~ V^3.4      Power ~ V^1.6      Life ~ 1/V^16      Color ~ V^0.42
Because of the boiling temperature of tungsten the best possible efficiency is about 52 lumens/watt.
If a lamp is rated for 5 hours of life when operated at it's rated voltage it will burn out much earlier if operated at higher voltage.  For example the GE 223 life might be described as:
Life = 2157200 / (V^16), so when V=2.25 Volts Life = 5 hr BUT at 3.0 Volts Life = 3 Minutes!  One factor that may have allowed a longer bulb life in the old falsh lights is the internal resistance of the battery and flash light.  An Ohm or two of resistance would bring the lamp voltage down to the spec for a battery with an open circuit voltage of 3.0 volts.

Edison 10 mm Miniature Screw Lamp Base (E10)

Preserving Lamps

With the advent of LED based flashlights the filament type are going obsolete.  Today most stores carry spare lamps I think in not too many years they will be harder to get and more expensive.  Even today there are flashlight lamps that are fairly hard to come by.  But being able to use the flashlight is a large part of it's appeal.

The problem is that lamps are typically specified to operate at a voltage about half way between a fresh Carbon Zinc battery (1.5 Volts) and a dead one (1.0 Volts) or 1.25 volts per cell.  You can see that in Table of Newer Lamps.  But running a lamp above it's rated voltage.  Note that a nominal lamp life is 15 hours at rated voltage.

Using modern Alkaline cells causes the lamps to burn brightly but not for very long.  Using Ni-MH rechargeable cells drops the voltage from 3.0 V for fresh alkaline to about 2.8 V for fresh Ni-MH but they soon drop to 1.2 to 1.3 V per cell or 2.4 to 2.6 Volts which is very close to the specified operating point.  So that's a rather simple way to preserve the lamp.

A better way is to use a current regulator to limit the current rather than regulate the voltage.  With current regulation any resistance in the flashlight makes no difference to the lamp.  With voltage regulation any resistance will make a big difference to the lamp.   I like this approach a lot.  It would allow adjusting the current so you could make the trade between brightness and lamp life.

Repairing Loose Bulbs

Quite a number of times the bulb has become unstuck to the base and is being held just by the two wires.  If you apply any torque the wires will snap right were they enter the glass bulb and the lamp will be ruined. I can remember these seperated bulbs going back over 50 years.

The fix is to apply Loctite 290 (290 Data sheet, MSDS)to the crack between the bulb and base.  It's designed to lock threads that are already mated.  This is a penetrating liquid and is very thin.  After cutting off the tip of the small tube the first time I used it way way more came out than I expected.  So be very careful not to waste this expensive liquid.

The strength is best when the gap it's filling is smallest so I used a rubber jaw wood clamp to hold the bulb into the base and let it sit for more than 3 days (72 hour cure time).  If repairing a lamp while it's still in a light be very careful that no thread locker gets on the base threads.

Available at Napa auto parts in 0.20 fluid ounce (6 ml)  tube.


When a keychain UV LED is used to illuminate the bulb the Loctite 290 appears as a yellowish color where it's between the glass and base.

290 Treated Lamp The glass to base area is clearly visible and an off yellow color.	stock # 1491 The glass to base area is fuzzy with no yellow color.

Lamp Patents

754251 Electric Lamp, Steinmetz (GE), Mar 1904, 362/329 ; 313/116 - home type by a key inventor
762927 Composite Incandescent
774404 Base for Incandescent Lamps, Alfred Swan (GE), Nov 8 1904, 439/662 ; 439/663; 439/672; 439/675 -
825103 Method of Manufacturing Tipless Miniature Incandescent Search Lamps, O.A. Bohm, Jul 3 1906, 65/55- scarf pins
945823 APPARATUS FOR EXHAUSTING INCANDESCENT LAMPS
963872 Lamp-Filament, W.D. Coolidge (GE), July 12 1910, - Tungsten filaments replaced carbon filaments.  One of the KEY lamp patents.
1712996 Incandescent Lamp, F. P. Hoffman (R.A. Schott), May 14 1929, 313/111 ; 220/2.1R; 313/110; 313/315; 362/296 -
1906188 Incandescent Lamp, Emamiel C. Smally, Apr 25 1933,

Osram Patents

1675229 Electric Incandescent Lamp, Franz Skaupy (GE), Jun 26, 1928, 312/305 ; 313/347; 313/45; 313/592; 313/8 - works like vacuum tube where the plate gets hot. "Osram" used in an example.
1623761 ELECTRIC LAMP, Franz Skaupy (GE), Apr 5 1927, 313/9 ; 313/276; 313/316; 313/341 -

112 and 222 Lens Type TL-3 or GTL-3 Bulb

These are Edison miniature screw (E10) based lamps with a built in lens.  Typically used in penlights.  Since the lens to filament relationship is what's critical there is no need for a flange to locate the lamp with respect to the flashlight like in the PR- series of pre focused lamps.  The support wires for the filament don't stop at the filament like on earlier lamps but instead continue upwards to a reference location.  When the glass assembly with the filament is inserted into the bulb it stops when the top of the support wires hit the inside of the bulb at which point the glass is fused.  This located the filament allowing for focus.

1983362 Electric Incandescent Lamp, W.J. Geiger (GE), Dec 4 1934, [filed Apr 24 1934]- This is THE 222  method of locating filament at specific position for 112 and 222 lens type lamps.
2053164 Incandesent Lamp and Method of Manufacture, Marvin Pipkin (GE), Sep 1, 1936, 445/27 ; 220/2.1R; 313/110; 313/315; 313/317 - adds a solid glass lens to the bulb - 222?
2060658 Method of and Apparatus for Shaping Glass, Carl A. Brown (GE), Nov 10 1936, 65/109 ; 65/271; 65/276 - method of making glass lens on bulb, 222?
2416853 Incandescent Lamp, Emamiel C. Smally, Mar 4, 1947, 362/309 - adapter allows using a small lamp in a larger socket
2159736 Electric Lamp and Method of Making Same, Alfred T. Gaskill (GE), May 23, 1939 [filed May 22, 1934], 65/109 ; 65/DIG.1- Method of forming lens by melting tube This is for the 222
2277633 Electric Lamp and Mounting, Joseph D. Ceader (GE), Mar 24 1942, 362/202 ; 362/341 - Prefocused Flashlight lamp. uses a small donut shape in the metal base next to the glass.  Notice that a lamp like the #14 shown in the photo above must be inserted from the front of the reflector, but the flanged lamps have been designed to allow inserting from the back of the reflector.
2235515 Manfacture of Miniature Lamps, Walter E. Carpenter, (Westinghouse Electric), Mar 18 1941, 174/17.08 ; 174/50.58; 220/2.2; 313/315; 313/318.03; 313/318.08; 445/27; 65/46; 65/56; 65/57 - glass blowing and stept of making PR- type pre focused lamps
2402375 Sealed Beam Flashlight Lamp, Frank B. Dadlsman, Jun 18, 1946, 362/267 ; 362/205 - 4 filaments with one common connection

1915 Catalog listing of Lamps

No.	V	Bulb	CP?
1180	2.6 / 2.3	?
1181	3.3	FE-3  3/4	0.25
1182	2.3	FE-3  3/4	0.27
1197	2.3	G-3½	0.27
1162	3.8	G-3½	0.30
1161	2.5	G-3½	0.30
1166	2.4	G-3½	0.60
1167	3.6	G-4½	0.60
1168	6.0	G-5	0.60
1163	6.2	G-4½	?
1117	2.4	G-3½	?
1135	6.3	T-3¼	?
1149	2.5	T-3¼	?
1109	5.0	G-4½	?
1173	2.3	G-3 Frosted	?
1174	2.5	GL-3½	?

# Cells	Model	Base	Bulb	Volts	Amps	Power Watts	Life hrs
2	223	E10	FE3-4/4	2.25	0.25	1/2	5

Table of Newer Lamps

5

# Cells	Model	Base	Bulb	Volts	Amps	Power Watts	Life hrs
1	112	E10	TL3	1.2	.22	1/4	5
2	14		G3-1/2	2.47	.3	3/4	15
	222		TL3	2.25	.25	1/2	5
	PR-9	P13.5s	B3-1/2	2.7	.15	1.2	45
	PR-6		B3-1/2	2.47	.3	3 1/2	30
	PR-2		B3-1/2	2.38	.5	1	15
3	13	E10	G3-1/2	3.7	.3	1	15
	PR-7	P13.5	B3-1/2	3.7	.3	1	30
	PR-3		B3-1/2	3.57	.5	1 3/4	15
	PR-30		B3-1/2	3.75	.86	3 1/4	40
4	27	E10	G4-1/2	4.9	.3	1 1/2	30
	PR-13	P13.5s	B3-1/2	4.75	.5	2 1/2	15
5	PR-12	P13.5s	B3-1/2	5.95	.5	3	15
6	PR-18	P13.5s	B3-1/2	7.2	.55	4	3
8	965	E10	T4-1/2	9.84	.5	5	15

Seeing the Light: The Physics and Materials Science of the Incandescent Light Bulb -

YouTube: Periscope Films: 1940s General Electric Documentary Manufacture of Madza Lamps & Light Bulbs PF#65784, 23:48 -

Batteries

By 1910, 11 years after flash lights were invented there were a number of batteries available from National Carbon Co. using the Columbia brand.
A Brief History of the Standardization of Portable Cells and Batteries in the United States by
My seperate Battery Patents web page.

Cylindrical

No.	dia x ht	No.  of Cells	Wt oz	Volts
1	1 3/8 x 7  1/8	3	11.5	4.5
20	1 3/8 x 9  1/2	3	15	4.5
30	1 3/8 x  11  7/8	5	18	7.5
110	1 x 4  3/4	2 or 3	8	3 or 4.5
590	1 3/8 x 4  3/4	2	3.5	3
591	1 x 3  7/8	2	3	3
1915 Catalog
935 "C batt"	1  31/32 x  1  1/32	1
950	2  13/32 x  1  11/32	1
705	7  15/64 x 1  11/32	3
706 (~2xAA)	4  1/31 x 19/32	2
710	2  31/32 x 3  9/32	5 ?
790	4  13/16 x 1  11/32	2
eBay
BB21 Rayovac	C 1  31/32> dia  > 9/16 AA	2?

Index of vintage radio battery artwork / graphics by Robert - KD4HSH

Prismatic

Dimensions exclude the metal tabs.

1910 National Carbon Co.
No.	thk x w x ht	No.  of Cells	Wt oz	Volts
032	2 5/8" x 1 3/8" x  3/4".	2		3
502	fits patent dwg Pocket F.L.	?	?	?
592	13/16 x 1  5/8 x 2  1/2	2	3	3
593	1  1/16 x 2  1/16 x 3  1/2	2	7	3
ECP	1  1/4 x 3  1/8 x 4  1/16	3	12	4.5
CP3	1  1/8 x 3  1/4 x 3  3/4	3	15	4.5
EVP	15/16 x 2  1/2 x 3  1/8	3	6	4.5
OV3	7/8 x 2  1/8 x 2  9/16	3	6	4.5
OV3 import	7/8 x 2  3/8 x 2  9/16	3	6	4.5
OVN	7/8 x 2  3/8 x 2  9/16	3	5	4.5
1915 Catalog
409	3  29/32 x 1  1/8 x 2  3/4	4
700	1  15/16 x 1  1/8 x 19/32	2
703	2  19/32 x 2  7/16 x 27/??	3
734	3.9  x 3.0  1.15	3
750	2  5/16 x 1  11/32 x 1?	3
751	2  5/16 x  2 x 11/16	3
Misc
3R25, AD28, H1176	36 x  96 x 106 1.42 x 3.78 x 4.17	3		4.5
3R12 (MN1203, 3R12G, 3LR12, 3R12R, 1289)	22 x 67 x 62 0.87 x 2.64 x 2.44	3		4.5

Batery Size¹ Table from  ASA C18.1-1954, UDC 621.352.7

omitting volume, and Mercury batteries. Ordered highest volume to lowest.

Cell	Dia in	Hi in	Vol 2 cu in
No. 6	2.5	6	29.3
J	1.25	5.875	7.2
G	1.25	4	7.92
F	1.25	3.4375	4.22
D	1.25	2.25	2.76
CD	1	3.1875	2.51
CL	0.9375	2.625	1.81
C	0.9375	1.8125	1.25
B	0.75	2.125	0.95
BR	0.75	1.5	0.66
BF	0.75	1.3125	0.58
A	0.625	1.875	0.57
AA	0.53125	1.875	0.42
AAA	0.390625	1.6875	0.20
R	0.53125	1.3125	0.292
N	0.4375	1.0625	0.169
NS	0.4375	0.75	0.113

Note : these were Zinc Carbon cells.  Alkaline cells are about the same size, BUT are made very differently.  For example the top (positive) terminal on a Zinc Carbon cell was just the small  cap on the carbon and the Zinc can was the negative terminal.  An Alkaline cell has all of the top terminal and the cylinder all connected to positive and an island at the bottom is the negative terminal.
Note 2:  The energy in a cell is to a first order approximation proportional to it's volume.  A second order approximation would subtract some constant so as the total volume decreases the useable volume decreases even faster.

Energizer E95 Alkaline "D" cell is 1  5/16" dia x 2  3/8" hi

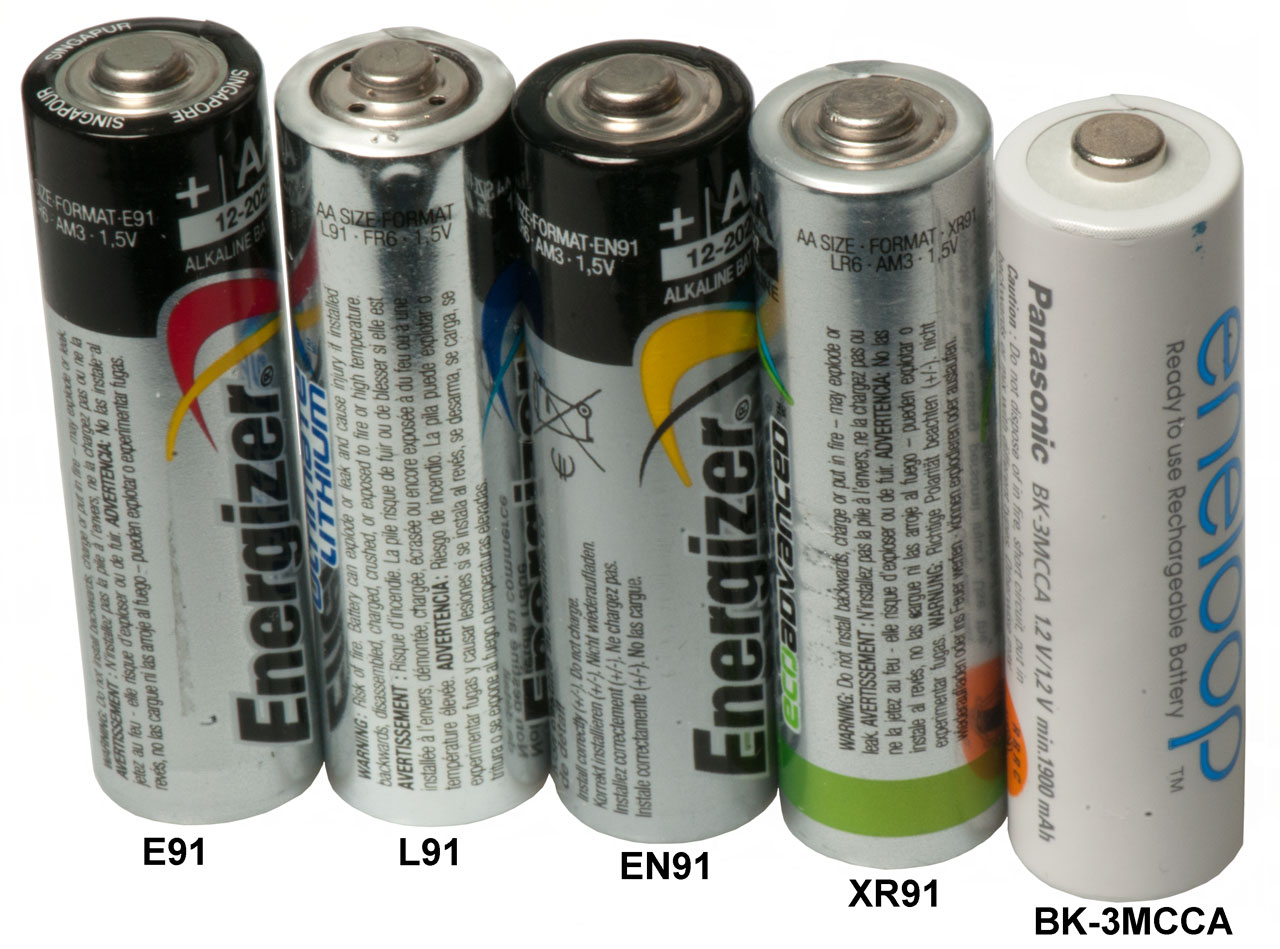

Energizer"AA" cell is 9/16" dia x 1  15/16" hi
No. 6 Dry Cell is 2 ½" dia x 6" tall
The tab unit cell for my 2AA Pocket Flash Lights needs to be less than 0.7" some fractions that would work: <= 5/8, 21/32 (23/32 very tight), 45/64.  The 700 is 19/32 which is thin enough by 1.9375" wide by 1 1/8.  If the 1 1/8 is just the body and the tabe stick up the right distance it would fiy my wide Pocket Flash Light.  But it's 2 cells which might burn out the lamp?

	This Flash Light battery is 2 5/8" x 1 3/8" x  3/4".  Note 3/4" is just the size to fit the Eveready Pocket Flash Lights.  The 1 3/8" dimension, the width in the photo would be just right for the narrow Pocket F.L..  That leaves the 2 5/8" height which would be too tall.  2 1/2" is also too tall.  2 1/4 or 2 1/8 high would work. It may be that these very early batteries had a lot of internal resistance, so although they measured 3 volts open circuit, when connected to the lamp the actual voltage across the lamp was less than 3.0 volts.  I feel that connecting two modern 3 volt Alkaline cells to the lamp would burn it out.
	This Eveready Pocket Flash Light has a No. 750 battery installed. The 750 is a three cell battery with dimensions of 2  5/16 x 1  11/32 x 1? You can see at the top left of the battery the short tab is making contact with the tab connected to the switch.  That makes a circuit to the case which in turn is connected to the threaded part of the lamp.  The tip of the lamp makes contact to the long battery tab that's folded flat across the top of the battery.  So as shown the light would be on. But the switch is shown in the up position which should be off, so either the switch tab or battery tab would need to be bent so they are not touching when the switch is all the way up. The U shape metal that's part of the switch is there to hold the battery to the right. 1053390  Galvanic Cell , Albrecht Heil (Conrad Hubret & Samuel Stern), Feb 18 1913, 429/224 ; 429/229 - Manganic Hydrate as depolarizer gives 1.6 Volt cell 1053505 Galvanic Cell, Albrecht Heil (Conrad Hubret & Samuel Stern), Feb 18 1913,  429/224 ; 429/229 -  Manganese Dioxide as depolarizer gives 1.7 Volts per cell.	Printed on Front No. 750 Eveready Tungsten Battery Highest Grade Battery in the World American Eveready Works of National Carbon Co Inc Long Island City, N.Y. Chicago   Atlanta   San Francisco Patented Feb 18 1913
	Here the battery is installed the correct way around. The switch is a little below the half way point and the circuit is open.  If the switch is pushed up the circuit will be closed. It looks like red sealing wax has been poured into the top of the battery and there's still an eighth of an inch of battery wrapper exposed.  For a battery that's probably 90 years old it's held up fairly well.	Printed on Back Guarantee We guarantee this tungsten battery to give 1 to 2 hours service when used with an Eveready Mazda bulb. IMPORTANT Bulbs are expecially designed for use with tungsten batteries and will give the highest efficiency for your protection The name eveready is stamped on the base Side: The original and only battery of quality. Other side: Guarantee expires 4  23 price 30 cents
	The carbon rods and their caps can clearly be seen. The sheet metal tabs are just soldered to the two cells.  All the wiring is at the top and both cells are installed positive end up. X-ray by my dentist Dr. John Scoggins at Park Falls Dental. The solid state X-ray makes an image that's life size and covers  36 x 25.6 mm i.e. the same size as a full frame 35mm camera negative.  The resolution is 635 pixels per inch  or 25 pixels per mm.  Each pixel is an 8 bit gray scale value.	The size is very slightly larger that two AA batteries side by side. The tabs are about 0.011" thick and very springy. The top looks like it has had sealing wax poured into it.
The symbol at right may be a Franco logo?
Eveready Shield Mark on Eveready No. 750 Pocket Flash Light. Center has overlaid E and R.
Two AA Battery Adapter to replace No. 750 This was the first try at making battery adapter patterned after the one by Bill Utley in the Flashlight Collectors Newsletter.  But instead of using a huge pop rivet I'm using an eyelet.  But a problem showed up after the first phosphor bronze spring was attached.   It's that there is nothing to keep it from turning, as shown in the image to the left.  The real batteries have both tabs well located in rotation.  Now working on a way to fix the tabs rotation.
Two AA Battery Adapter to replace No. 750 ver 2 This is the second try.  Each of the phosphor bronze spring straps is anchored in two places so they can not rotote.  All three of these pocket flash lights works by just moving the battery adapter from one to the other without any tweaking of the starps. The fit is snug but the bottom door on the eveready dec 17 1912 unit (lower left conrner) stays closed.
Eveready No. 751 Pocket Flash Light Battery
		2  1/4 hi x  5/8 thick x  1 15/16 w
You can feel three cells  under the paper. Lamp in Pocket Flash Light is marked 3.6 V		Same patent date Feb 18 1913 as No. 750 above 1053390  Galvanic Cell 1053505 Galvanic Cell
Guarantee Expires 3 27	_
	Franco No. 1041 3 AA Pocket Flash Light battery
	MN1203 aka 3R12 4.5 Volt Battery 2 3/8" wide x 2 1/2" hi x 27/32" thick.  6 ounces. The tabs are made out of a dead soft metal and do NOT have spring action and so do not make good contact with the lamp base. Because of the poor spring action this battery requires some "fiddiling" to get it to work.  Or that may be just the nature of this type of battery?
Petrix Pocket Flash Light On using MN1203 battery.		Franco Dec 29 1914  1122777 also works with MN1203.

738025 Dry-Cell Battery, Edwin R. Gill (Electric Contract Co ECCO), Sep 1, 1903, 429/166 ; 429/229 - pointed carbon allows better packing prior to inserting carbon
777457 Battery Case, Wappler, Dec 1904, 429/99 ; 429/159; 439/500 - a box to hold a number of series connected cylindrical cells
880703 Battery, George M. Wheeler, 429/159 ; 206/705; 429/178 - Pocket Flash Light, repairable
1053390  Galvanic Cell , Albrecht Heil (Conrad Hubret & Samuel Stern), Feb 18 1913, 429/224 ; 429/229 - Manganic Hydrate as depolarizer gives 1.6 Volt cell
1053505 Galvanic Cell, Albrecht Heil (Conrad Hubret & Samuel Stern), Feb 18 1913,  429/224 ; 429/229 -  Manganese Dioxide as depolarizer gives 1.7 Volts per cell.
1011992 Dry Battery, D.L. Ordway (National Carbon Co), Dec 19, 1911, 429/159 - multi-cell prismatic Ignition Battery high Watt hours/cu inch
1066280 Protective Container for Dry Batteries, Kaempfer, Jul 1913, 206/705 ; 229/102; 229/81 - a box to hole a pocket flash light battery with holes for testing and a seal so battery can not be exchanged with a dead one.
1090624 Casing for Electric Cells, I. Kaempfer, Mar 1914, - for cylindrical cells
1292764 Dry Cell and it's Method of Manufacture, Hambuechen (Burgess Battery), Jan 28 1919, 29/623.1 -
1303558 Battery Cell, Harry T. Hipwell, May 13, 1919, 429/65 ; 206/705; 429/167 - method of making cell easy to ship (used in speed flash)
1307868 Flash Light Battery, A.S. Lynne, Jun 24 1919, 429/166 ; 429/157 - one piece zinc cup, no leaks & same size
1316597 Dry Cell, Schroger (Burgess Battery), Sep 23 1919, 429/132 ; 429/137; 429/229 -
1331877 Electric Battery, O.E. Ruhoff, Feb 24 1920, -
1398518 Flashlight-Battery, H.H. Hipwell, Nov 29, 1921, 429/133 ; 429/142; 429/247 - use rubber band to hold core cover cloth in place instead of thread
1590873 Primary Cell, UNION DRY BATTERY CORP
1760090 Dry Cell
1836847 Dip for Dry Cell Cores, JOSEPH M. HENDERSON (Burgess Battery), Dec 15, 1931, 429/232-
1839498 Dry Cell, H. W. FORTH (Burgess Battery), Jan 5, 1932, 429/166 ; 429/202; 429/229-
1856386 Primary Battery, (National Carbon Co), G. W. HEISE, May 3, 1932, 429/220 ; 429/229 - High Current Applications
1858026 Battery, Schulte (Burgess Battery), May 10 1932, 429/159 ; 362/171; 429/178 - metal can for pocket flash light battery
1874376 Process of Making Dry Cells, W. D. STALEY, Aug 30, 1932, 29/623.5 ; 427/113; 427/443.2; 429/301
1214916 Lamp, Ellsworth A. Hawthorne (Hawthorne Co),  Feb 6, 1917, 362/375 - bicycle tail light
2534336 Primary galvanic cell, Nelson C Cahoon, Union Carbide Corp, 1950-12-19 - printed on No. 467     67-1/2V battery
2710887 Method of Sealing Dry Cells and Sealed Dry Cell Construction, Albert Gelardin, Jun 14, 1955, 429/172 -
2826681 Multicell Battery, H.R.C. Anthony (Electric Storage Battery Co), Mar 11 1958, 362/194 ; 429/158; 429/174 -
2879315 Vented Sealed Dry Cell Construction, Albert Gelardin, Mar 24 1959, 429/82 ; 429/172 -
3874932 Dry Cell, Yoshio Uetani William F. Hendry - many many Dry Cell patents

Optics

The light leaves the bulb in all directions.  Some may go to the reflector and where it goes next depends on if the filament is at the reflector focus.  Some light will never touch the reflector and instead goes out the end of the device.  If there's a lens then if the filament is at the focal point of the lens that light will be collimated, i.e. it will go in a parallel bundle of light.  The very common Edison 10 mm miniature screw based  (E10) lamps do not control the location of the filament and so are almost never focused as installed.  That's why there are many patents on ways to focus the light.

The very early flash lights used white paint on a parabolic reflector.  Later some used silver reflectors, these look great when silver polish is used.  Later some shiny metal (Chrome, Nickel ?) was plated on a brass reflector.  Still later metal was applied to plastic to make the reflector.

In the case of a flashlight with a reflector and flat glass or the case of the reflector and lens the light that goes froward from the lamp makes a wide beam and the light that's reflected then goes forward makes a narrow beam.  In some cases, like in smoke or fog, it's good to eliminate the wide beam which is weaker than the narrow beam so that back scattered light is reduced thus increasing visibility.  The Hipco dual lens flashlight does this.  There are other flashlights that get a similar, but not as good, effect by blocking some of the forward light with an obstruction directly in front of the lamp.  For example the Smoke Cutter made by G.T. Price.

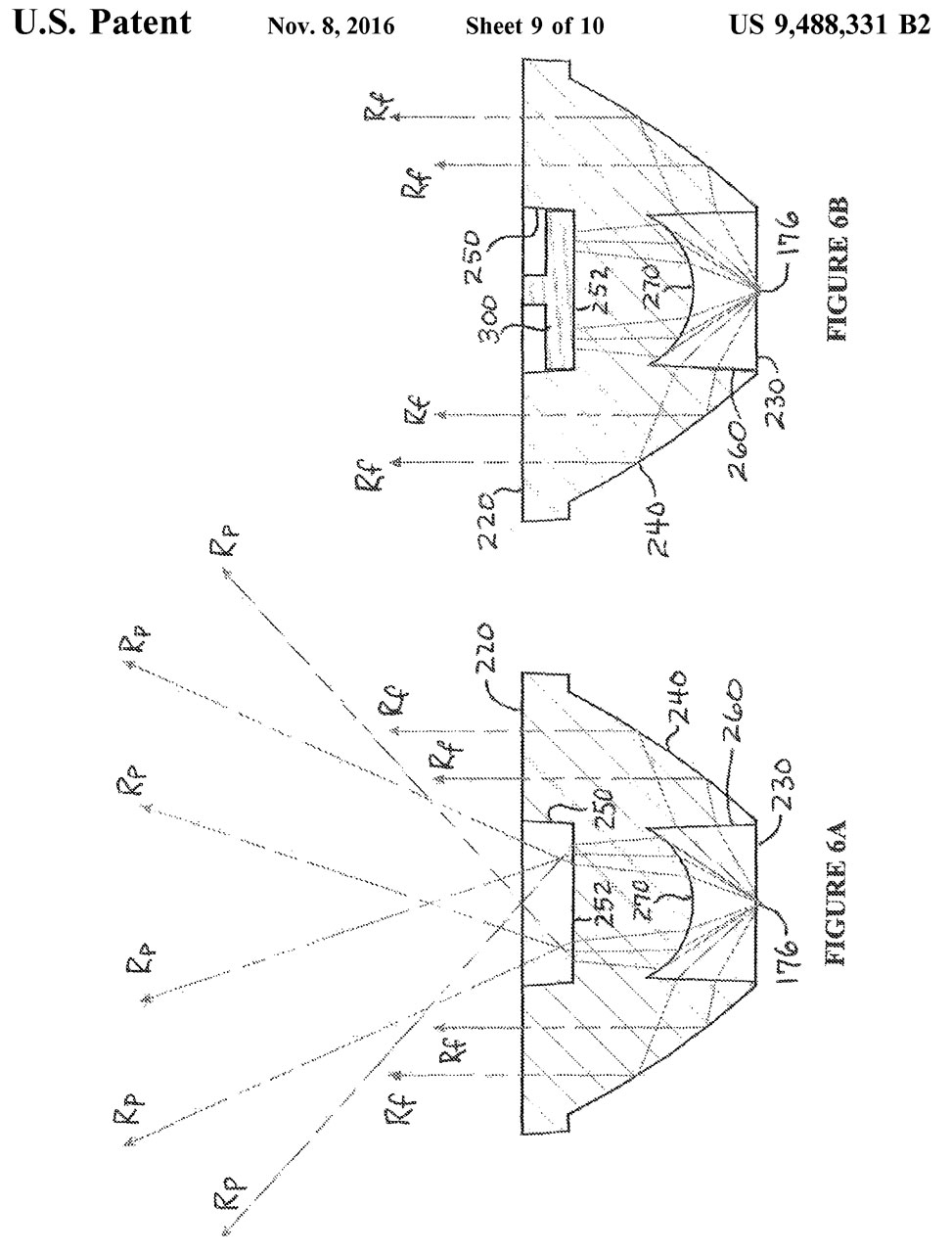

There's a good explanation of the dual lens optical system in a patent for an allergy pollen sensor.
5986555 Allergen Detector System and Method, Robert M. Hamburger, 340/627, Nov 16 1999 - two lens system and includes central obstructions to block laser beam.

524075 Reflector for Electric or Other Lamps, ERNEST TILMANN, Aug 7, 1894, 184/5 - two parabolic on common axis
1169819 Process for Preparing Metalic Filaments, ROBERT H. HENDERSON (Westinghouse), Feb 1, 1916, 219/149 ; 148/576; 72/364 - multistage drawing
1211447 Lantern Lens, L.J. Houze, Jan 9 1917, 362/333 -
2136237 Method and Apparatus for Prefocusing Lamps, D.E. Ekmendorf (GE), November 8, 1938, 445/64 ; 250/201.1; 250/234; 250/554; 318/264; 318/283; 318/480; 318/54; 356/400; 361/175; 362/296 - Vacuum tube and electric motors position filament.  Automobile headlight app.
2469080 Unitary Lens, S. Rosin, May 3 1949 362/327 ; 353/102; 359/724; 359/727; 362/336- combines reflection and refraction to make narrow beam - many patents reference this one.
D31588 Lantern Reflector, Frank Rhind, Oct 3 1890, D26/128 -

Source Geometry

Some common light sources, in sort of chronological order, are hot filaments in screw based then in flange type light bulbs, various types of electrical arcs and now LEDs.  All of these can be put into an optical integrating sphere (Wiki) and measure the total light output in all directions in Lumens (Wiki) just as Edison did with his light bulbs.  But the lumen output of a flashlight is not the key parameter.  More important is the light reflected by a distant object that you want to illuminate measured in units of Candle Power (Wiki) Candela (Wiki) or Lux (Wiki) also see luminous flux (Wiki), Luminous efficacy (300 lumens/watt max for an LED) (Wiki) and the Amprobe (Meterman) LM631A Digital Light Meter.

The light you see reflected from a distant object depends on a number of factors such as: how much light the source produces (measured in an integrating sphere and in units of Lumens), the optics that shape the light into a beam, the atmosphere between the light source and the object and you eye, how the object reflects.

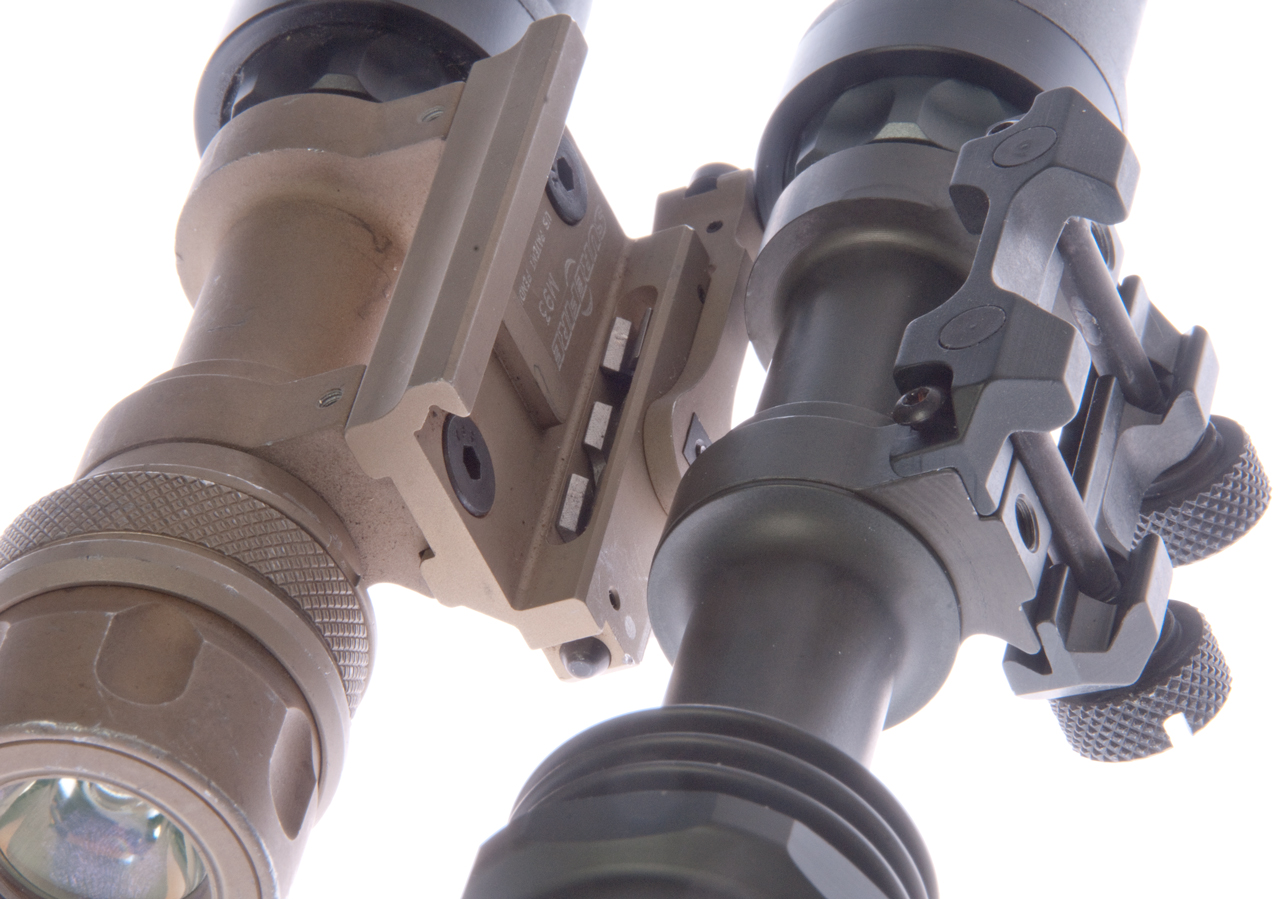

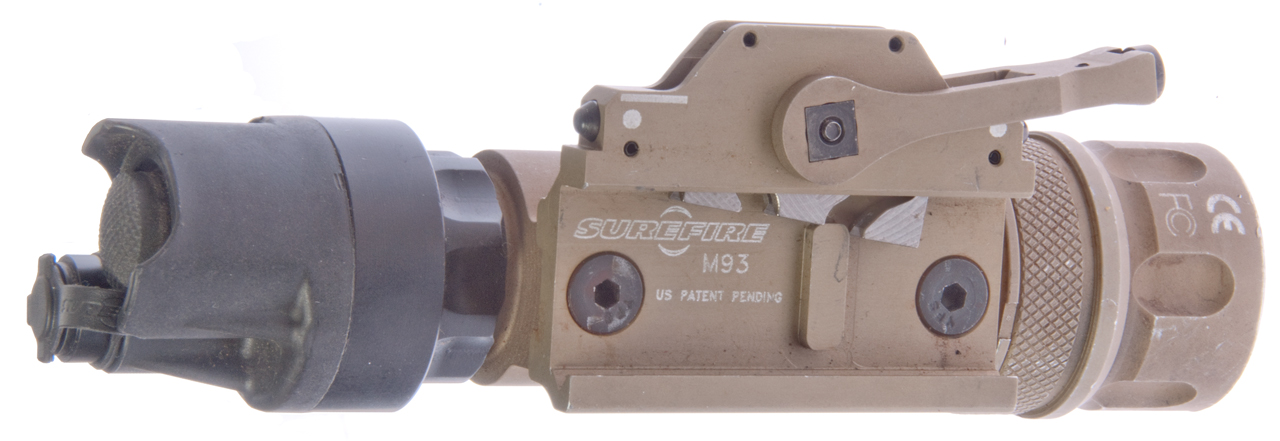

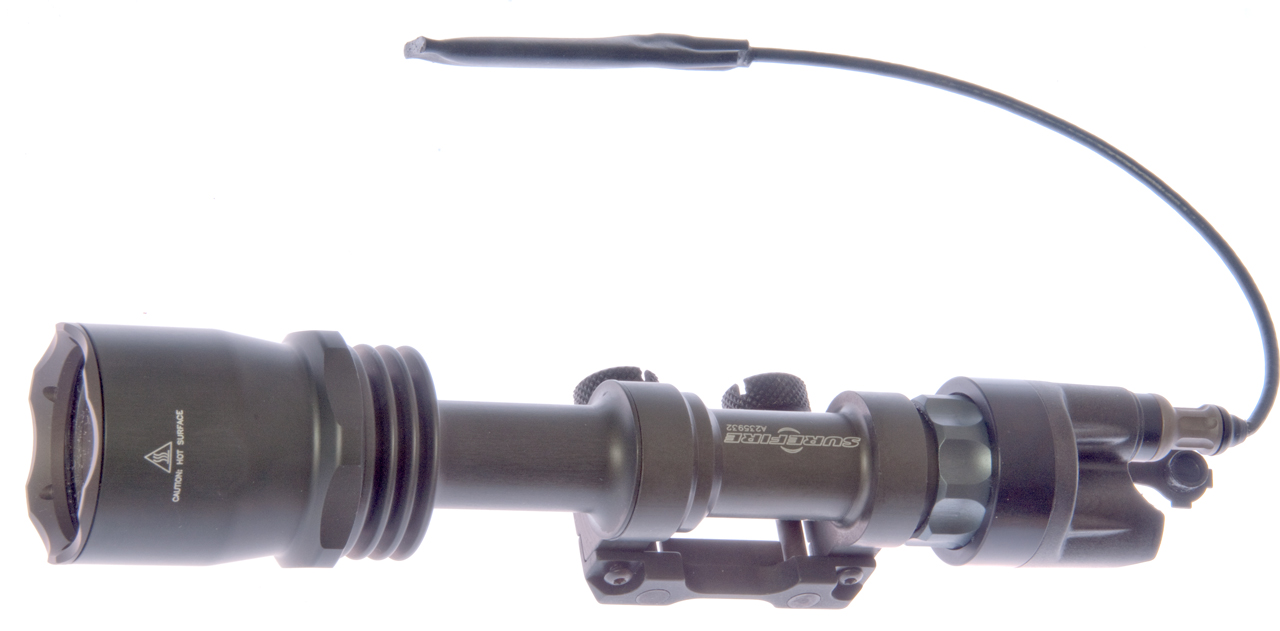

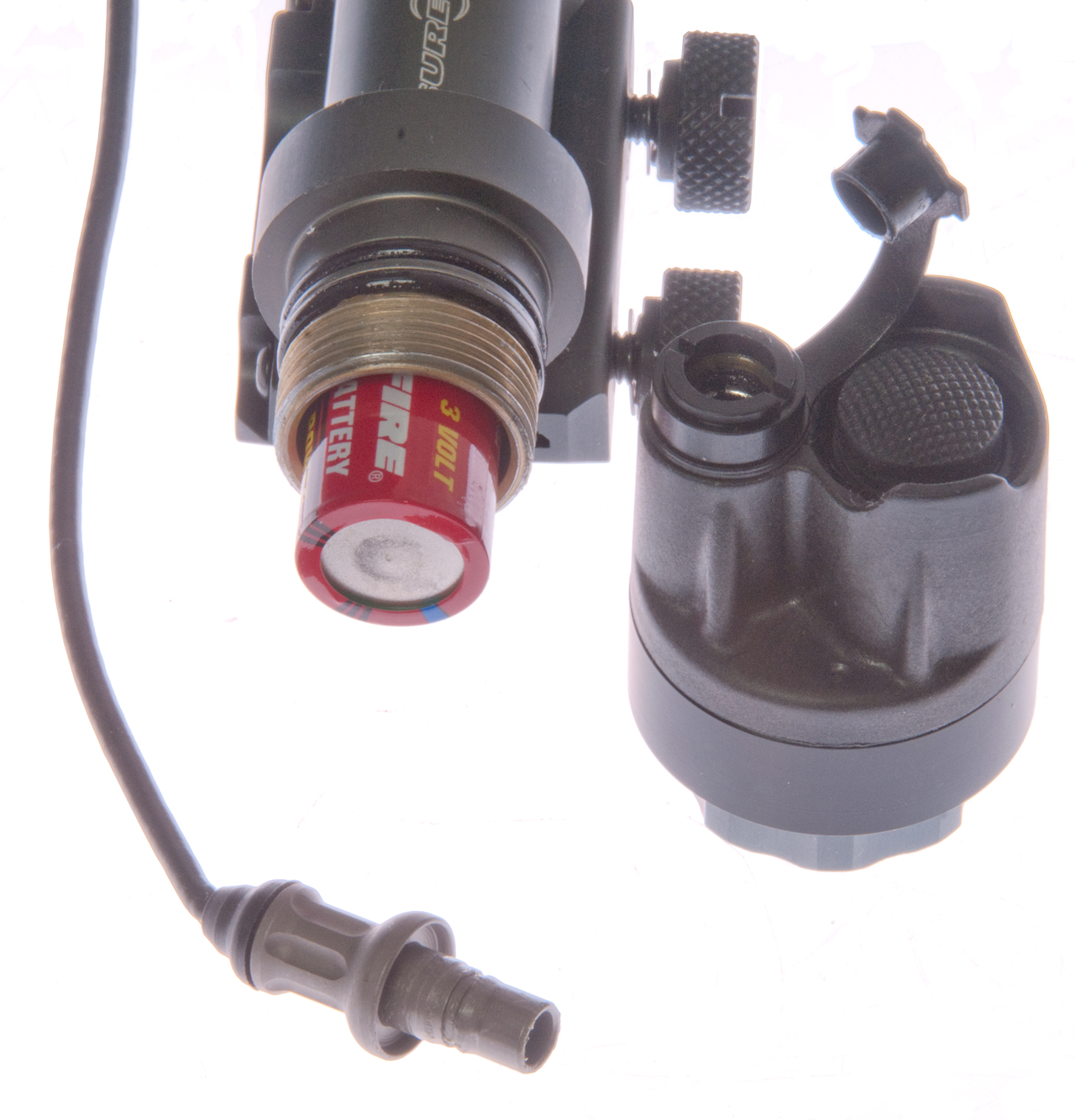

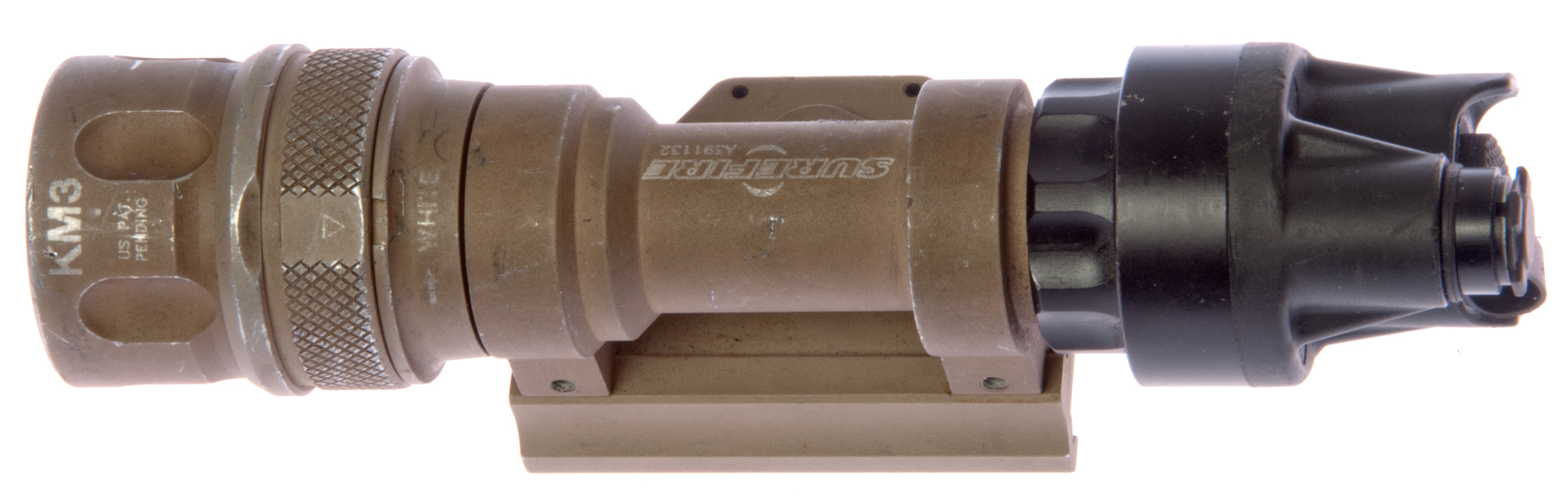

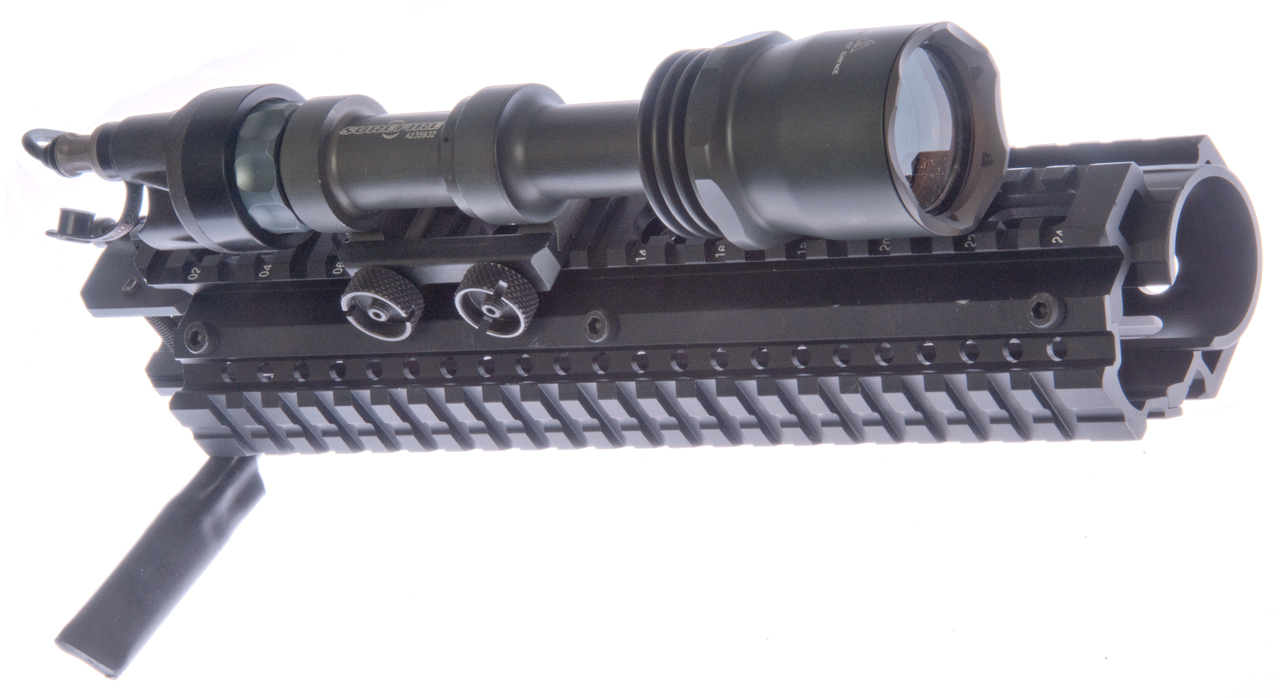

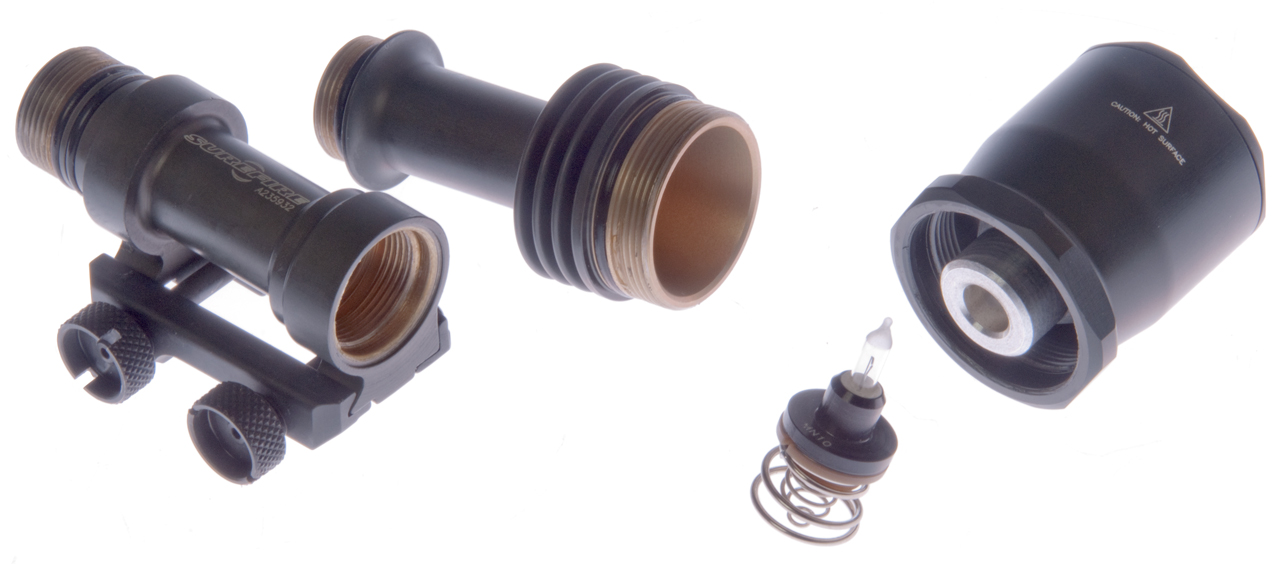

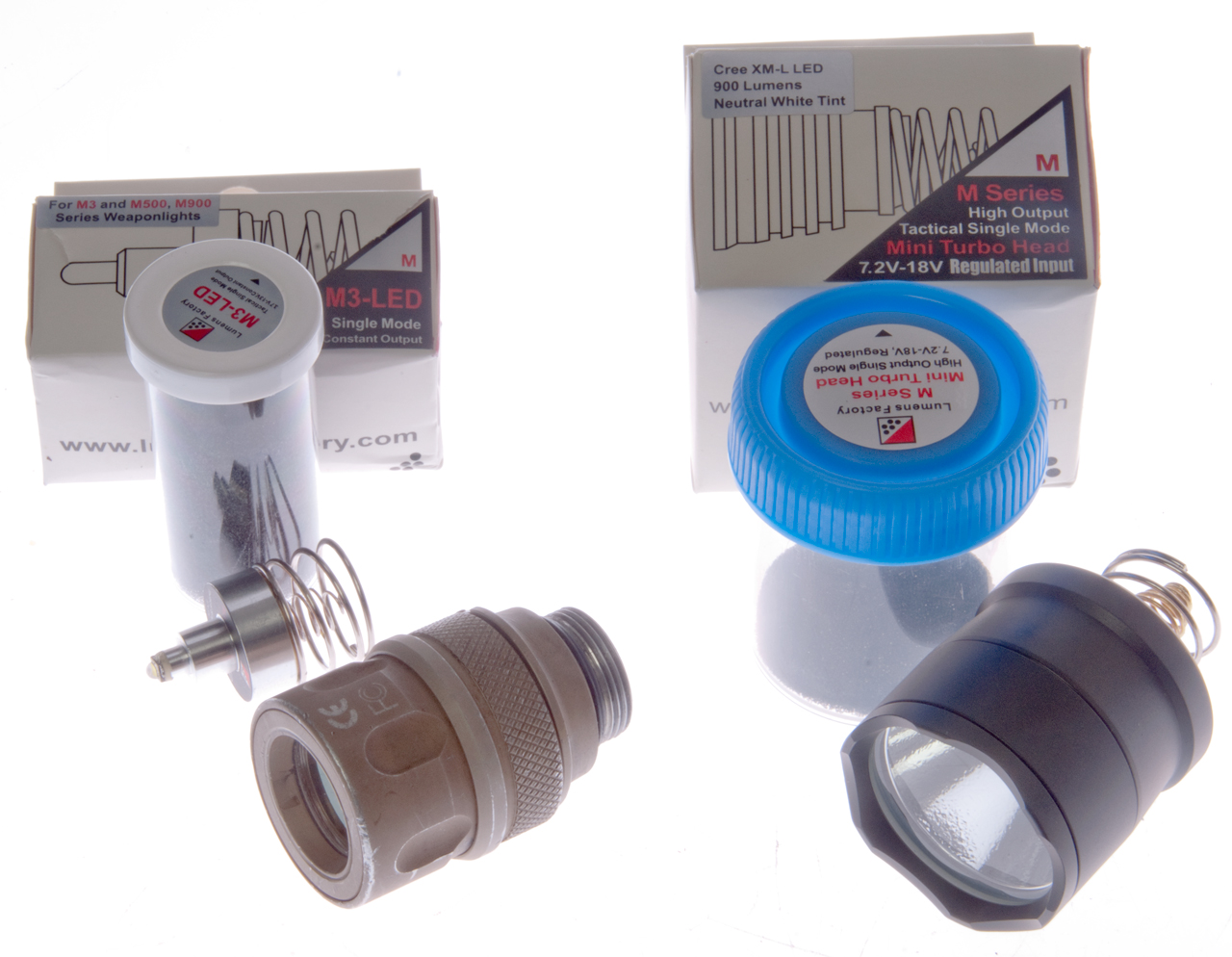

Looking at the Surefire rail mount flashlights:  they have flat glass lenses and if you turn the flashlight away from pointing at  your eye at some angle (30 to 45 deg) the LED can no longer be seen, so inside that solid angle there is no optical modification of the light output, i.e. it's the same output that you would get without a reflector or lens of any kind.  From that angle to a little less than 90 deg from the beam centerline the reflector is supposed to make a beam.  So when you shine the light on a wall you will see a large circle of light determined by the direct LED light and a brighter center spot determined by the reflector.

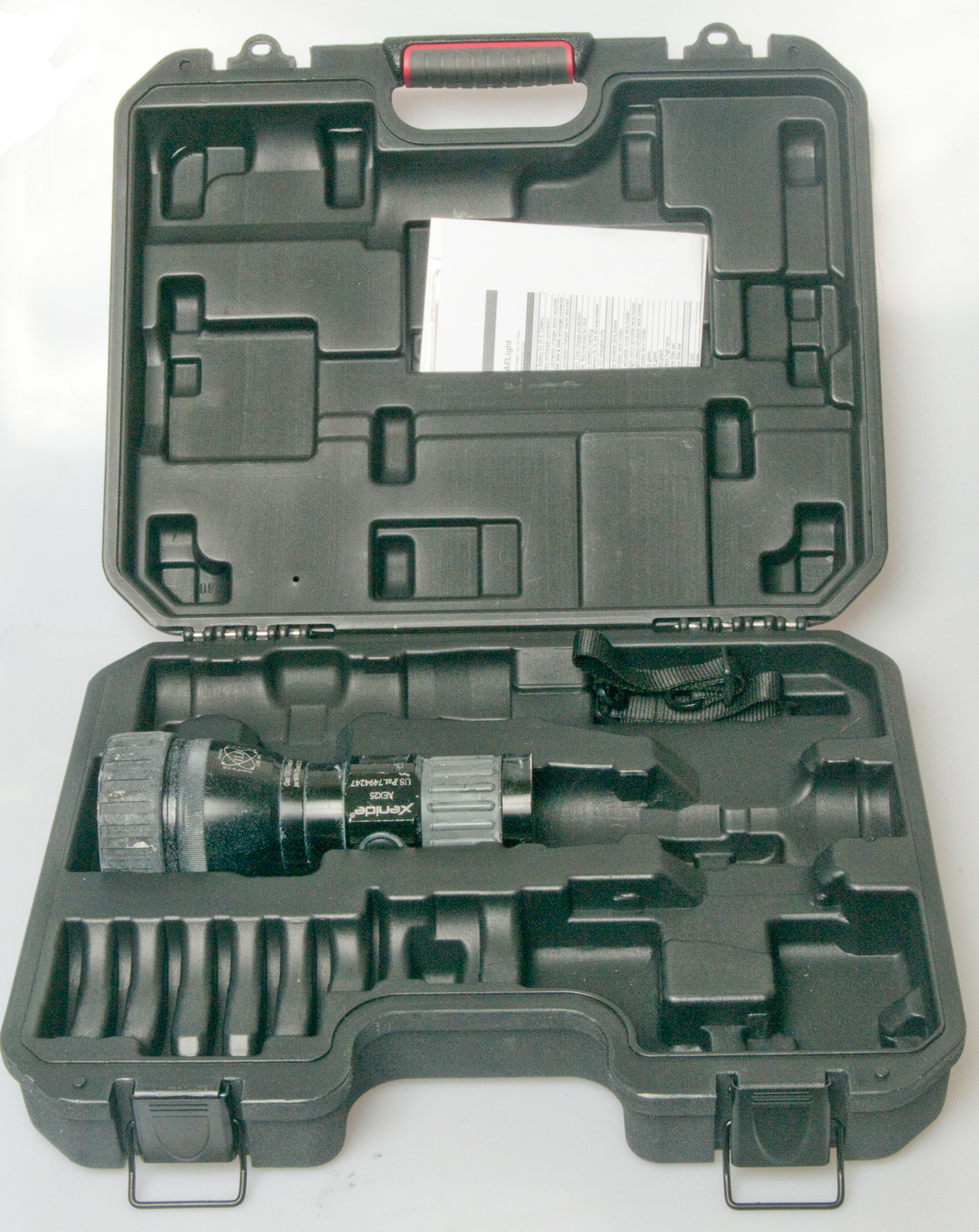

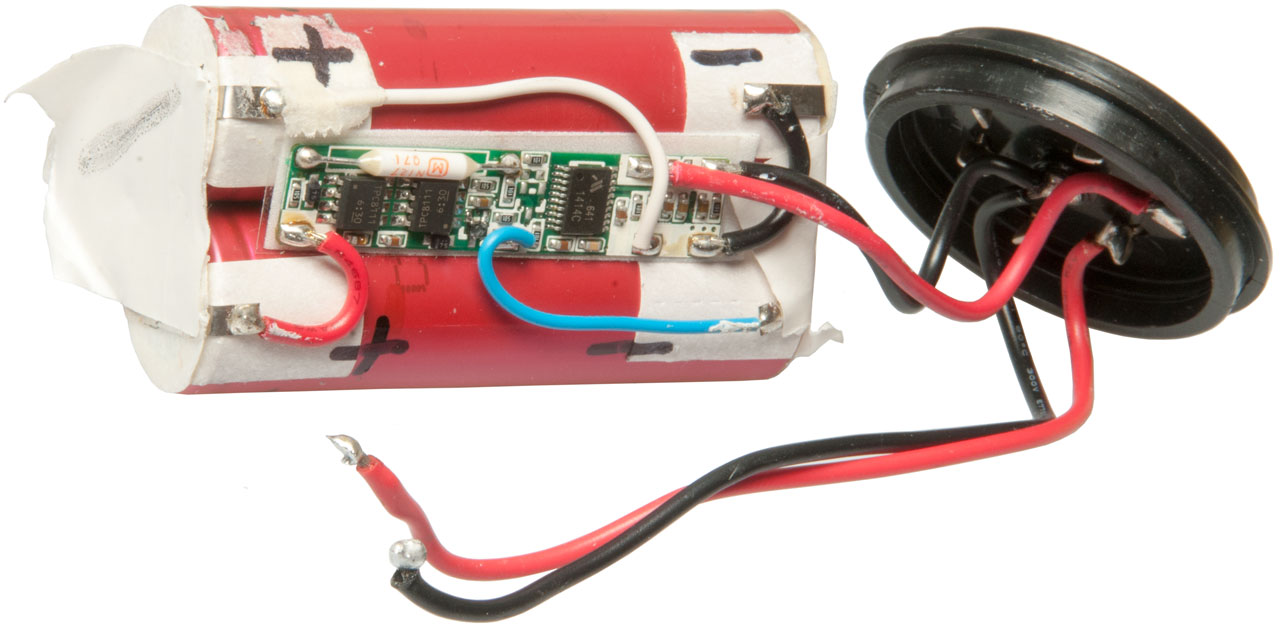

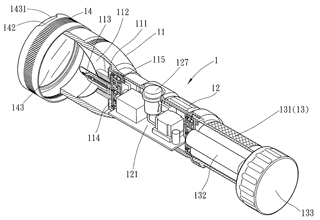

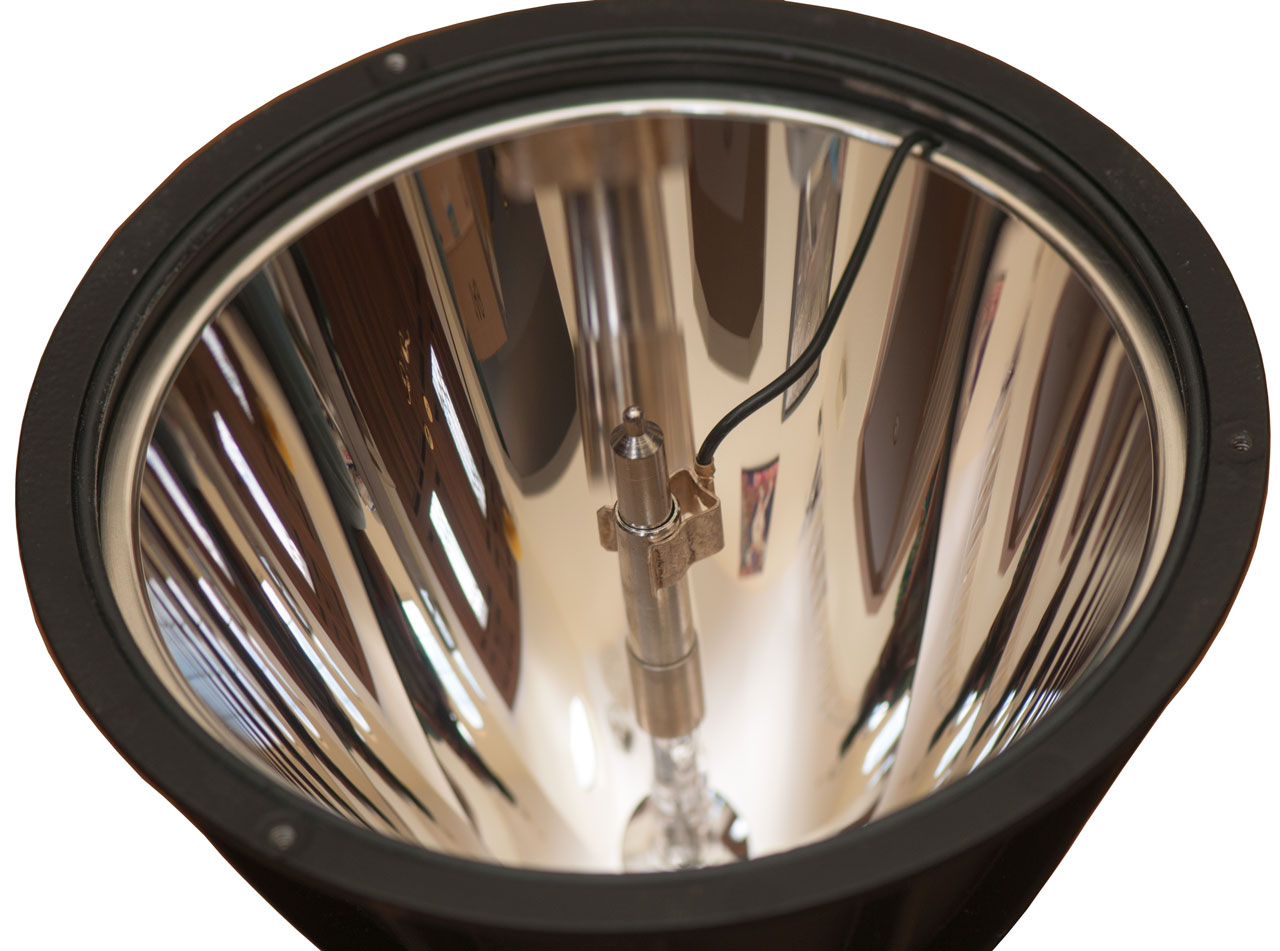

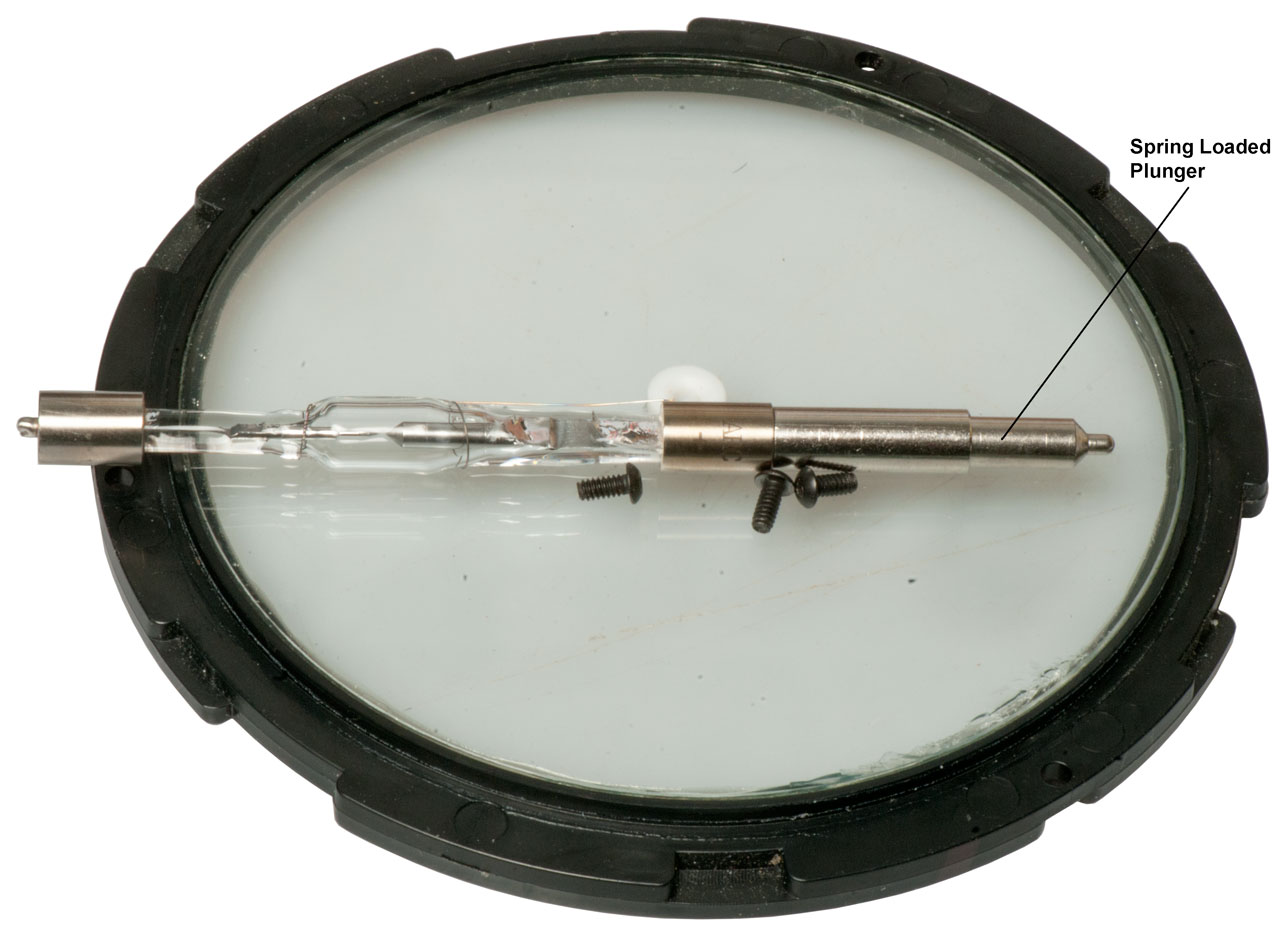

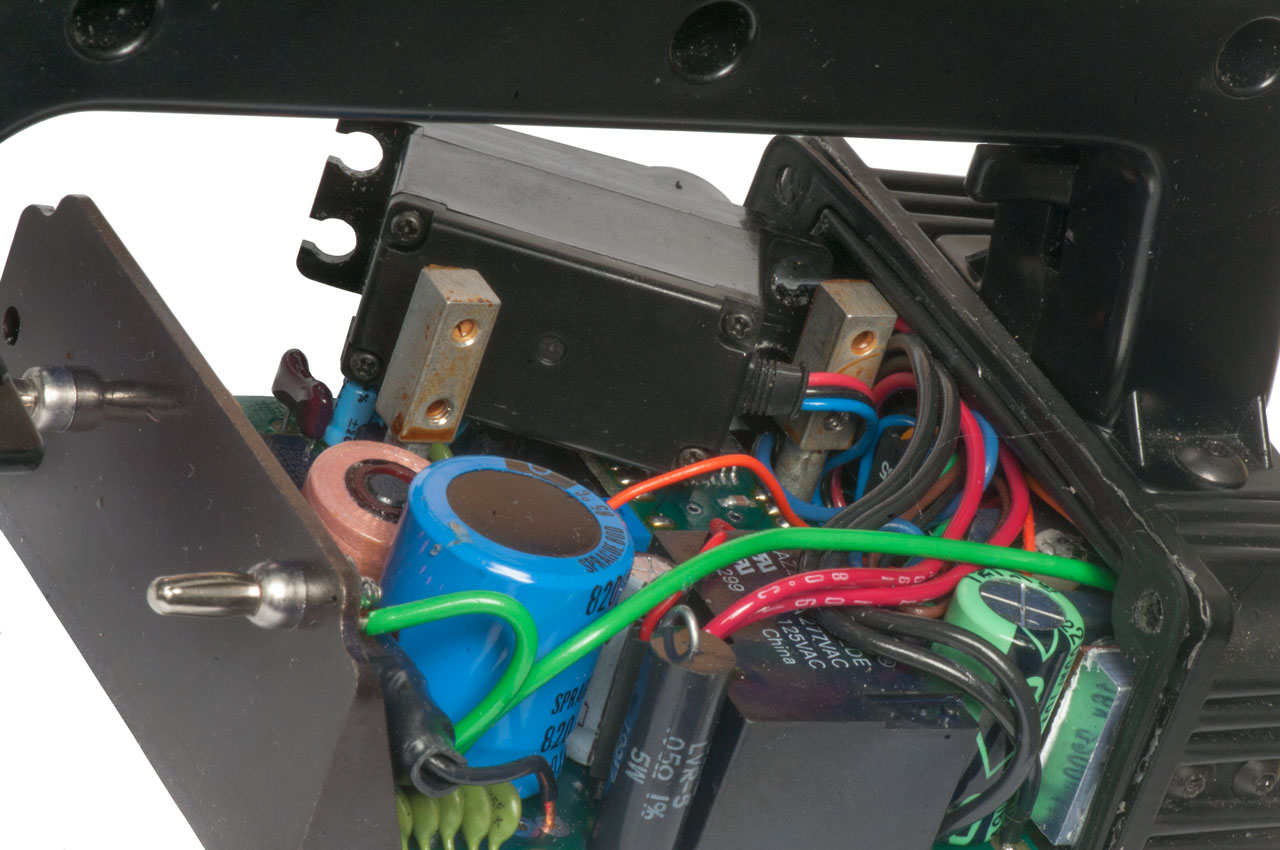

When an HID source is used, like in the AEX25,  it's a small cylinder of light allowing for a more efficient optical system.  So with more efficient optics you can get a brighter light then with a similar Lumen output LED light.

In the case of old fashioned flashlights using screw based lamps, the Hipco uses a 2 lens optical system to produce a more defined beam than the bull's eye and reflector only flashlights of the time.

I tried to use the LM631A light meter where the flashlight and light meter were both being held in my hands, but the light is way too bright for that to work.  What's needed is an outdoor test range setup so that the light does not fall on the house and is above ground maybe 5 feet so that a minimal amount of light is reflected off the surroundings and into the light meter.  Using baffles would be one way, but different baffels would be needed for each flashlight, so just open air is probably the best alternative.  There needs to be a permanent stand to hold the flashlight and a permanent  stand for the light meter so that in the future different lights can be tested under the same conditions.  On my To Do list.

Light

There are a number of ways of measuring light.
Lumens (Wiki) are a measure of all the light that a source can produce.  The measurement is made with the light source inside a reflecting sphere so that light in all directions is captured.
A Candela (Wiki - the new version of a candle power) is a measure of the visible light falling on a surface.  Note both Lumens and Candela are measures of visible light only, not IR or non visible radiation.  So these units are not applicable to IR sources.
TheWeston Model 594 Photronic Cell was designed so that it measures light with a wavelength response curve that comes very close to the human eye.
The Amprobe (Meterman) LM631A Digital Light Meter is a modern light meter that's commonly used for testing flashlights.

Although  you might think when comparing two flashlights that the one with the highest lumen rating would be the brightest, that's not the case.  For example when the Mini Mag Light has the reflector removed and used as a base, i.e. in candle mode it's putting out the same number of lumens as another Mini Mag Light with the reflector in place, but the brightness on a nearby surface will be much less.

So the key measure is what a light meter reads at some specified distance from the light source.  This reading will depend on the product of the brightness of the source (lumens) and the ability of the optics to direct all the light in a desired direction.  The same light source may be used for area illumination or as a spot light with a very narrow beam.  The surface brightness of the spot beam will be much higher than when the same light source is used for area illumination.  This is very similar to radio antennas where the gain of the antenna comes by directing the signal in a narrow beam.

Some light sources, like High Intensity Discharge (Wiki: HID) (see: AEX25) lamps are easier to design optics for than LEDs and so can have higher surface brightness than another flashlight with a higher lumen rating, but not as efficient optics.

Switch & Wiring

Care and Feeding

Often the flash light I get on eBay is very old and had rust and corrosion on some of the metal surfaces.  I don't think it's good to just leave that alone since it will continue to corrode the metal.  I have my first flashlight book on order but these lights need help so I'll present my method now.  If you know of a proven method please let me know.

Supplies needed:
VM&P Naphtha or equivalent
Window cleaner fluid in squirt bottle
Homax - OOPS! Multi-Purpose Remover -
Brasso metal polish
Kroil  made by Kano Labs, no substitute, 8 oz can will last forever if only used for flashlights

Rust remover, phosphate based, Renaissance Metal De-Corroder, or equivalent.
Wright's Silver polish
Renaissance Micro-Crystalline Wax Polish or equivalent high quality wax
Radio Shack Lube-Gel  2005-07-01 or Super Lube Gel 82003. other Silicon grease would also work, especially if made under patent 5037566




small screw driver
small fine tooth file
steel wool, No. 0000
Shop Rags, paper from box
tooth brush
tooth pick, wooden
Q-tips
tissue paper
Dust Off or compressed air
dinner plate, shallow tray, work bench, etc where the above chemicals can be used without causing a problem

Step 1 Clean and evaluate

For dust use the window cleaner and an appropriate applicator and clean.  For grease or oil residue use Varnish Makers & Painters Naphtha.  For the sticky stuff from stick on labels or paint spatter use OOPS!.

Step 2 Stabilize Rust and Corrosion

If there's raised islands of rusted metal knock them down by scraping into the island so as to not scrape the good adjacent metal using a small screwdriver or file.  Then apply the rust remover using a tooth brush and work it into the rust and corrosion areas and let it sit some time.  For very light rust that might be 5 minutes and for heavy rust for 30 minutes to longer.  An occasional reapplication of fresh rust remover and more brushing is good.  Rinse thoroughly with running water and wipe off excess water with rag and then blow dry.  Using the steel wool before and/or after using the rust remover is good.  When done you will still be able to see the spots where the rust was, but the surface will feel smooth, not gritty like when the rust is active.

Step 3 Check Function

If the flashlight is one where lamps and batteries are readily available install them and check that the light works.  When the lamp is connected to the batteries directly using wires (i.e. no part of the flashlight is being used) the brightness of the lamp should be the same as when the lamp is used in the flashlight.  If the lamp is dimmer in the flashlight then you need to clean the electrical joints.  These include:

• the mating faces of the threads on the battery cap
• the mating faces of the threads on the lens cap
• the top and bottom surfaces of the battery cap spring
• the tip of the tab on the body that points to the lamp head
• the surface on the lamp head where the body tab makes contact
• the mating surfaces between the reflector and the lens cap (for flashlights that do not use an insulating ring here)


Step 4 Reduce the change of future Corrosion

I have not gotten to this step yet.
Apply wax to outer surfaces and polish to help prevent future runt and corrosion.  Not sure what to do for inner surfaces and electrical parts.  Have not yet done this pending

Utility patents use numerical class and sub class numbers to specify the filed of the invention.  New things get invented and so new class and sub class numbers are assigned.  When new classes are assigned the classification of an older patent may change to be in line with the new numbers.  The early patents do not have any class numbers on the printed copy.
Both the Utility and Design class numbering systems are indented.  First by bold titles then by dots preceeding the numbers.

362 is the key top class number for flashlights.  The other top class numbers are in some filed related, such as electrical contacts, mechanical fastners, etc.

362   Illumination
185 Motors: Spring, Weight, or Animal Powered
186   Merchandising
200 Electricity: Circuit Makers and Breakers
429 Chemistry: Electrical Current Producing Apparatus, Product, and Process

searching for railroad electric lantern also finds these which are NOT the battery powered hand lanterns.
246 Railway Switches and Signals
353 Optics: Image Projectors
445 Electric Lamp or Space Discharge Component or Device Manufacturing
250 Radiant Energy
340 Communications: Electrical
29 Metal Working
220 Receptacles
439 Electrical Connectors
441 Bouys, Rafts, and Aquatic Devices [ is used without any 362 class number]
    .Marker
    ..with signaling device
  ...13 Illuminating
  ....16 Electric Light  -
.....17 water activated switch
.....18 water activated battery
116 Signals and Indicators [ is used without any 362 class number]
   18     Code Signaling
    22R  Periodic
    200 Indicators
    .202 Visual Light Signal
315 Electric Lamp and Discharge Devices: Systems
446 Amusement Devices: Toys [ is used without any 362 class number]
Design patents use a class identifier that's the letter "D" followed by digits for the class and after a slash the sub class.  Note a design is just that, i.e. it's how something looks.

D10 Measuring, Testing, or Signaling Instruments

D13 is Equipment for Production, Distribution, or Transformatin of Energy

D26 is Lighting

42  Firearms  [ is used without any 362 class number]

188220 Electric Lighting Apparatus for Lamps, William H. Zimmeeman, Mar 6, 1877, 361/264- using wet batteries to light lamp in kerosene type table fixture
261352 Electric Lantern, John H. Irwin, Jul 1882, 362/183 ; 362/186 - a kerosene type lantern with an electric lamp and and external storage battery
263257 Electric Lamp, William L. Voelker, Aug 22, 1882 ,307/157 ; 307/155; 307/5; 315/291; 362/186 - wall mounted lamp, battery powered
289425 Electric Light Lantern, carbon arc
296331 Portable Electric Hand Lamp, G.G. Gumpel, Apr 8 1884, 429/161 ; 307/157; 362/186; 362/191 - like 377340
363959 Transparent Dial for Watches, CHARLES HUMBERT, May 31 1887, 362/23 ; 368/227- external battery light lamp in pocket watch
377340 Galvanic Battery, D. Urquhart (New Portable Electric Lamp and Power Co), 429/49 ; 362/186; 429/158; 429/219 - very heavy secondary battery based lamp
413708 Electric Safety Lamp for Miners, Theophilits Goad, Oct 1889 - secondary battery based
423654 Coin Operated Display Apparatus, E.H. Amet, Mar 1890, 40/414 ; 40/614; 446/164; 446/477; 446/9 - includes a small battery powered electric light
436677 Electrical Head Light, J. Thorne & E.B. Burr, Sep 16 1890, - wet cells
455972 Electro-Medical Lighting Apparatus, P. Oudin, 600/249 ; 116/35R; 340/321; 362/103 - small lamp on finger mount
458279 Portable Electric (Safety) Lamp, - for miners, secondary battery
539192 Electric-Light Head-Gear for Personal Wear, Rodriguez, May 14 1895, - on hard hat
544419 Electric Wire Containing Hat or Cap Band, ALFRED M. RODRIGUEZ, Aug 13, 1895, 188/233.3 -
572805 Electric Lamp, Louis A. Jackson (Acme Electric Lamp Co), Dec 8, 1896, 362/197 ; 200/60 - Four Dry Cells powering a lamp through variable resistance
578107 Electric Lamp, M.M. Kohn, Mar 2 1897, - small screw based lamp in auto headlight housing on secondary battery
583945 Electric Light for Vehicles, ALFRED M. RODRIGUEZ, Jun 8, 1897, 310/129 ; 310/204- bicycle light with small generator driven from tire
615686 Electric Lamp, WALTER SCOTT DOE (J.H. Westell), Dec 13, 1898, 24/600.9- wood box, reflector on large face panel on top
646114 Portable Electric Lamp, A.F. Vetter (United States Battery Co), Mar 27, 1900, 362/188 ; 362/203 -
669949 Facially-Supported Lighting Device, J.B. Underwood, Mar 12 1901 - like eyeglasses with remote battery
669100 Physician's electric Lamp, Purdy Randall, Mar 5, 1901, 362/202 ; 600/249 - battery powered small lamp
689547 Illuminator for Firearms, Frank D. James, Dec 24 1901, 362/113 ; 42/146 - revolver w/ battery in grip, lamp under barrel in tube
733766 Combined Portable Electric Lamp and Battery, M. Sutherland & E. Marcuson, Jul 14, 1903 -
740671 Portable Electric Light, H. MacKaye, Oct 6 1903, - uses three No. 6 Dry Cells in base of candle like light
753138 Portable Electric Light, Harry C. Hubbell, Feb 23, 1904, 362/164 ; 429/156; 429/231 - four galvanic cells lugable but no pocket
754631 Lamp for Canes, Umbrella Sticks and the Like, J.W. Allen, Mar 15 1904, 362/102 ; 135/66; 362/186
755584 Illuminated Timepiece Holder, W. J. Shepherd 9Geore Stickney), Mar 22, 1904, 362/23 -
786040 Policeman's Mace (night stick), O. Liberman & T. Scanlon, Mar 28 1905, -
801904 Electric Torch, J.C. PERRY, Oct 17, 1905, 42/54 ; 362/112; 42/106
864957 Portable Search Light, J. Dickens, Sep 3 1907 -

Scarf  Pins

556080 Scarf Pin, H.V. Ashby, March 10 1896,446/26 ; 40/1.6; 63/20; 63/31 - uses pneumatic, mechanical or electro-magnet to move figure on pin.

Conrad Hubert

Conrad Hubert (aka Akiba Horowitz ) was the owner operator of American Novelty.  He hired David Misell who was an inventor.  Conrad wanted a cylindrical light that could be put into a pants pocket.  So what we today call a flashlight is a battery powered portable light small enough to fit into a pants pocket.  If it's larger then it's called a lantern.  If it's small enough to fit into a pocket and not be obtrusive then it's called a Pocket Flash Light, aka Vest Pocket Light, Watch Pocket Light, etc.  or a Pen Light.

D29939 Design for a Portable Lamp-Body, Gustave F. Hitzelberger (American Electrical Novelty Mfg Co.), Jan 3, 1899, D26/49
    filed Dec 3 1898
     Conrad Hubert signed as a witness -
    tubular pasteboard flash light with bulls eye lens on end.

The brand name for these Flash Lights was "ever ready".  Conrad set up a company to make the flashlight, batteries and bulbs for them.  Later the company name was changed to Ever Ready.

D31711 Design for a Lamp-Body, Conrad Hubert (not assigned), Filed 18 Aug, issued Oct 24, 1899, D26/50 ; D26/36 - three side by side  cells and reflector for lamp. clover-leaf bicycle light, Conrad Hubert ,October 24, 1899

599975 Portable Electric Lamp March 1, 1889 (3 months after the Misell/Hubert patent) by Leonard Paget appears to be the oldest patent in class 362/197 that uses cylindrical "cells" prior portable electric lights used much heavier batteries.  Class 362/197; 200/60 Same patent as 599975.pdf
595327 Electrical Igniter for Burners, S. M  Meyer, Dec. 14, 1897, 431/262 ; 429/110 - uses cylindrical "cells" in a cylindrical holder that's very similar to a flashlight case, but does not have a lamp.

644860 Electric Gas Lighter, Conrad Hubert, March 6, 1900, 219/201 ; 219/267; 219/268; 219/269; 361/264; 362/253 - This is like a three "D" cell flashlight with a long stalk and at the end is an exposed lamp filament that gets hot enough to light gas when powered.
700650 Electric Lamp, C. Hubret, 362/208 - Clover leaf bicycle lamp
729906 Electric Lamp, G. Stein, Jun 2 1903, 362/208 ; 313/51; 439/476.1; 439/613 - for doctor or dentist.  probe with lamp at end, separate battery box
737107 Electric Circuit-Closer, Conrad Hubert, Aug 25, 1903, 200/60 ; 362/205 - Switch like a small mouse trap that can be used for a momentary contact or when pressed firmly the fabric snap (he called it a Glove fastener) makes and holds the electrical circuit.   Uses a lens like on the Winchester flashlight below.
741245 Electric Lamp or Candle, Conrad Hubert, Oct 13, 1903, 362/190 ; 200/60; D26/96 - button on base handle
812710 Portable Electric Lamp Outfit, A. Wilson, Feb 13, 1906, 362/208 ; 315/33 - lugable lamp, cord and battery box
818449 Portable Electric Light, Conrad Hubert, Apr 24 1906, 362/200 ; 200/60 - Pocket Flash Lights of small size
835529 Portable Electric Light, Conrad Hubert, Nov 132 1906, 362/201 ; 200/52R; D26/37 - whisky flask Pocket Flash Light
857599 Engine Starter, Clyde J. Coleman  (Conrad Hubert), Jun 25, 1907, 185/41R - a combined spring, planetary gear and clutch to start a car engine.
867797 Engine Starter, Clyde J. Coleman  (Conrad Hubert), Oct 8, 1907, 123/179.7 ; 123/179.5; 123/434; 123/576; 261/18.3 - this one uses compressed air
1047525 Portable Electrical Light, Conrad Hubert, December 17, 1912, 362/208 ; 200/60; 362/201 - Pocket Flash Light
1056971 Method of Making Vacuum Jacketed Vessels, Clyde J. Coleman  (Conrad Hubert), Mar 25, 1913, 65/34 ; 215/12.2; 65/42 - Thermos bottle (Wiki)
1035879 Portable Electric Light, Conrad Hubert, Aug 20, 1912, 362/201 ; 200/60 - uses a bare flattened bulb and a battery that might be a couple of  AA cells side by side with projecting sheet metal contacts, one longer than the other.  There was a flashlight on eBay shaped like a pistol that used the same battery which is no longer available.

---

1157395 Portable Electric Light, Conrad Hubert, Oct 19, 1915, 362/208 - The circuit between lamp socket (1) and the metallic reflector (2) is broken by the insulating sleeve (3) disk (5).  Lamp socket (1) is electrically connected to contact plate (6).  This patent covers the insulating disk (5) and contact plate (6) showing a movable tab (20).

Brooke's Note: The actual switching action can be between a movable tab (20) and the contact plate (6) or the tab (20) can be stationary and the actual switching is done at the swith 19.

1220634 Portable Electric Light, Conrad Hubert, Mar 27, 1917, 200/60 ; 362/205; 362/310 -
calls 1157395 for the insulating disk and contact plate configuration.
Although this patent is a couple of years older than the Oct 19, 1915 date stamped into the switch on this flashlight, it shows the push button switch (non sliding).  Inside it does use the insulating disk and contact plate from the Oct 19, 1915 patent.

---

1186197 Portable Electric Light, Conrad Hubert, Jun 6, 1916, 362/205 ; 200/60- uses single No. 6 Dry Cell, handle on side, reflector & lens on top
1186198 Portable Electric Light, Conrad Hubert, Jun 6 1916, - House Lamp, sort of like bicycle lamp, three horizontal cylindrical cells reflector - lens on side
1205628 Portable Electric Light, G.F. Hitzelberger (American Eveready Co), Nov 21 1916, 200/60 ; 200/542; 340/321; 362/195; 362/206; 362/810- Candlestick cylindrical batteries in stem, push push on/off
1205629 Circuit Controller for Portable Electric Lights, G.F. Hitzelberger (American Eveready Co), Nov 21 1916, - rotary switch
1205633 Portable Electric Light, C. Hubert, Nov 21 1916 362/186- looks like kerosene hurricane lamp
1220634 Portable Electric Light, Conrad Hubert, Mar 27, 1917, 200/60 ; 362/205; 362/310 - big cylindrical battery, switch details, reflector and lens
1246876 Battery Capping Machine, Conrad Hubert, Nov 20, 1917, 29/623.1 ; 144/245.1; 144/250.24; 29/730; 29/790 - replaced hand operation.  Used to apply the small brass cap to the carbon rod.  <--------------- Dry Cell Battery patent

National Carbon Co.

1212907 Battery Lamp, W. R. Clymer (National Carbon Co.), Jan 16, 1917, 362/201 ; 362/295 - resistance in series with battery that can be shorted out
1241077 Portable Electric Light,  W. Bauer, Sep 25 1917, 362/197 ; 200/60; 340/321 - the side mounted reflector and top bail like a RR lantern
1264520 Flash Light Battery, M.E. Holmes (National Carbon Co), Apr 30 1918, 362/206 ; 200/60; 338/101; 338/71; 429/97 - uses rheostat "From this it will be evident that the incandescent lamp is subjected to a considerable excess voltage when used in combination with a new battery."
1363698 Portable Electric Light, Wacker (National Carbon Co), Dec 1920 - bicycle lamp
1388850 Storage battery, Thomas R Cook, Westinghouse Union Battery Co, 1921-08-30, - cylindrical lead acid battery shipped dry for use in a flashlight.
1490448 Dry Cell of the Flat Type and Battery Formed Therefrom, Raymond C. Benner, Apr 15, 1924, 429/155 ; 429/160 - flat cell
1508987 Battery of Day Cells and Process of Assembling Same, C.S. Rider, Sep 16 1924, 429/149 ; 429/162; 429/210 - replaces cylindrical cells in B batteries.
1540372 Flash-light holder, Clarence M Sears, 1925-06-02, - headband, but classical shape flashlight points towards feet. (not Sears Co related)
1788575 Battery Hand Lamp, H.W. Jones (National Carbon Co), Jan 13 1931, 362/208 362/207 -
1797161 Battery of Dry Cells and Process of Assembling the Like, E.J. Strohl, Mar 17 1931, 429/149 ; 429/162; 429/210 - flat cell battery
1820620 Focusing Flash Light, H.W. Jones (National Carbon Co), Aug 25 1931, - single hand focus flood or spot screw base bulb
1909278 Battery Lantern, HOMER W. JONES, May 16, 1933, 362/197 - thre cell rectangular. one across top and one on either side of the side mounted reflector, similar to the watchmans.
2323312 Electric torch, William C Crimmins, Sears Roebuck and Co, 1943-07-06, - bicycle headlight

---

3 D Cell with Prefocused Lamp Eveready A National Carbon Company Product

This 3 D cell flash light uses a prefocused lamp with a flange.  These were patented by GE starting in 1934.
The parabolic reflector appears to be chrome plated unlike the silver plated reflector on the vulcanite bodied 2 D Cell Eveready Flashlight.  This light uses a flat glass lens, not the walleye lens.  When you shine the beam on a wall the image of the filament coil is easy to see.

I would expect a patent or two to cover this light dated 1930 something but have not found them.

	The photo was taken after cleaning and steel wooling both the inside and outside. The light came from eBay missing the lamp.  I used a radio shack 272-1158 lamp labeled KPR103 Krypton Flashlight Lamp.  And mis labeled "for "C" and "D" 2-cell flashlights".  Clearly a two cell flashlight using the highest voltage cells (Alkaline) can only produce 3.0 volts maximum, yet this lamp is rated 3.6 Volts, 800 ma, bulb type B-3½ Base: Single-contact miniature Flange Ave Life 15 hours.  This really is a lamp for a three cell flashlight where the peak voltage with fresh alkaline cells would be 4.5 V and when they were dead of about 3.0.  Half way between those voltages is about 3.75 which is very close to the 3.6 V for this lamp.
	This shows the back side of the reflector with the lamp assembly installed correctly.  There are a bunch of ways it can be installed improperly. Although not clear in this photo, there is an insulating gasket between the reflector and the cap.  Battery negative is on the cap.  Battery negative is on the tab coming from the body when the switch is on and the battery is disconnected when the switch is off.  The tab is fixed in position, i.e. it's not a sliding tab.  The lamp center contact is always on the battery positive terminal.
	The can on the right has a leaf spring in the bottom that contacts the tip of the lamp. The cap on the left screws onto the can trapping the lamp and allowing the lamp to make contact on the flange.  The outside diameter of the cap is a snug fit into the hole in the reflector and a slight clearance fit in the hole is the small parabolic metal part. The purpose of the small parabolic part is not clear.  Maybe to fix a mistake in the focus? This is a much more complex way of holding a PR series pre focused lamp than the more modern flashlights and is probably one of the first flash lights made to use the pre focused lamps.  A 2 D cell light most likely was the first.

---

Ever Ready (Eveready)

Most patents are from the 1980s onward.

Conrad Hubert, National Carbon Co (Wiki) and Ever Ready (later Eveready) are all related companies.

966421 Portable Electrical Measuring Instrument, Walter E. Beede, Aug 9, 1910, 324/145 - pocket watch case 0 - 30 Amp meter.  See my No. 6 Dry Cell web page and the Flash Amps section.
1828778 Electric Torch, J. Lister (Ever Ready UK), Oct 27 1931, 362/158 ; 362/187 - explosive atmosphere flashlight
3020396 Flashlight Optical System, Arthar Frederick Worboys (Ever Ready UK), Feb 6 1962, 362/331 ; D26/49 - two lens elements adjust the beam from spot to wide

Union Carbide

2166682 Flashlight, H.G. Graubner (Union Carbide), Jul 18 1939, 362/157 220/304 362/208  -
2886664 Flashlight and Switch, Herman G. Graubner (Union Carbids), May 1959, - switch has magnet

Burgess Battery Co.

March 1917 company formed.
University of Wisconson - page about Ray-O-Vac, Burgess, French Battery Co, etc.
1082887 Contact Device for Hand Lamps, Lorenz Maisel (Northern Chemical Eng Labs), Dec 30 1913, 362/204 ; 200/60; 362/187; 362/205 - adjustable focus
1084926 Hand Lamp, Charles F. Burgess (Burgess Batt Co), Jan 20, 1914, 362/187 ; 362/204; 429/97 - focusing lens, bayonet battery cap

                "    RE15022 Hand Lamp, Charles F. Burgess, Jan 11, 1921

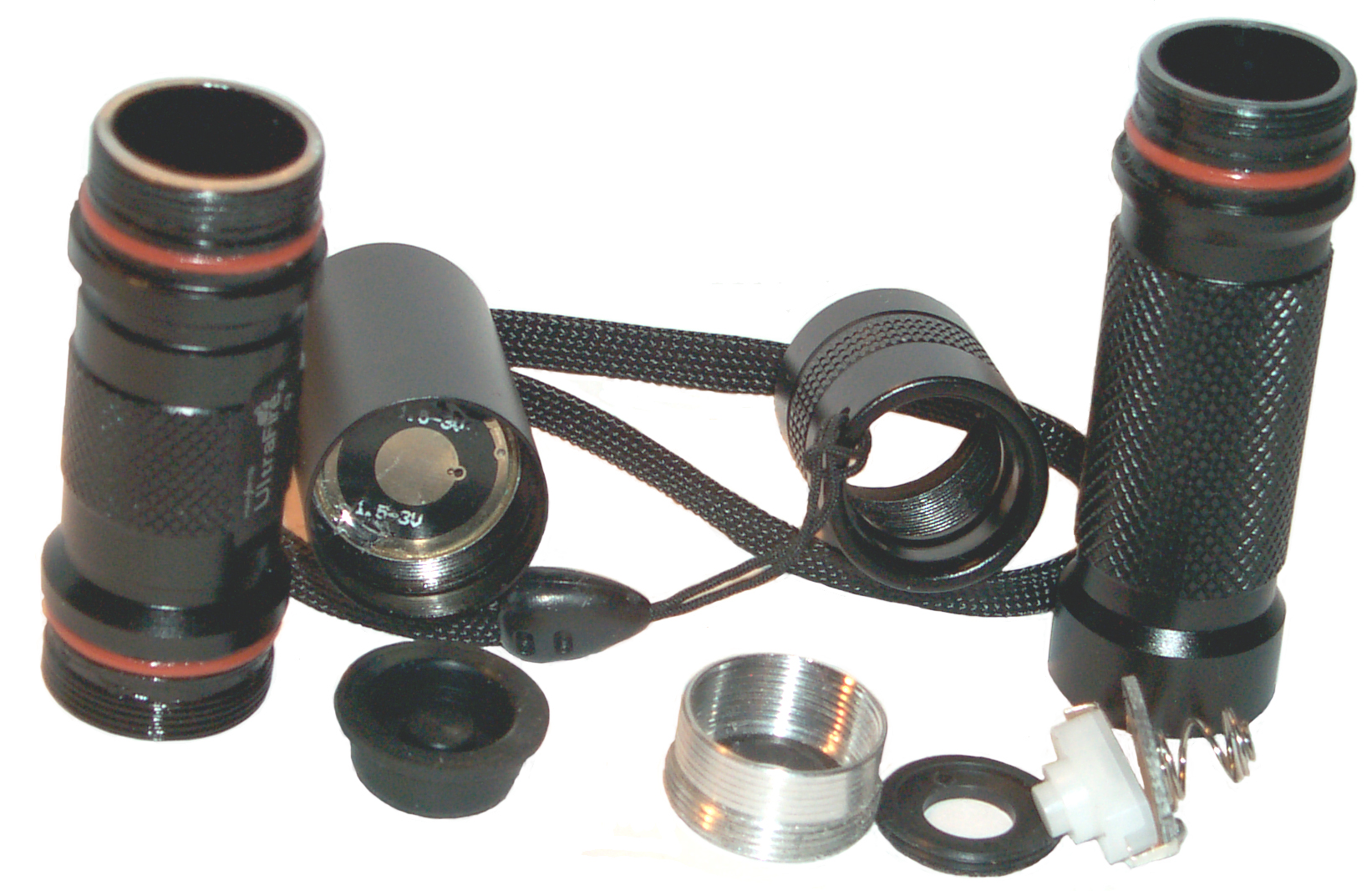

The Chinese copy of the Cree UltraFire Hwa Wys single AA battery LED flashlight has a sliding lens that works as described in this patent.
When the slide is pulled out the image of the LED is collimated light and you can see the details of the LED chip.

1284583 Apparatus for Making Battery Wrappers, Charles F. Burgess, Nob 12, 1918, 493/175 ; 493/153 <-----Dry Cell Battery patent
1305250 Manufacture of Dry Cells, Charles F. Burgess (Burgess Batt Co), June 3, 1919,
1305251 Manufacture of Dry Cells, Charles F. Burgess (Burgess Batt Co), June 3, 1919
1342001 Dry Cell, Walter B. Schulte, June 1, 1920, 429/121 ; 429/181; 429/229; 439/766 - No. 6 <--------------- Dry Cell Battery patent
1354323 Battery Hand Lamp, Lorenz Maisel, Sep 28, 1920, 362/204 ; 200/60 - a nut that looks like a lighter flint wheel is turned on a screw to make or break the electrical connection.
1403538 Battery Hand Lamp, Charles F. Burgess (Burgess Batt Co), Jan 17, 1922, 362/187 ; 200/60; 340/321 -
1606286 Dry Battery, John S. Zook, Nov 9, 1926, 429/151 ; 429/160 - 2.5" square "B" battery with cells slopped
1637711 Apparatus for Inserting Dry Cell Cores into Cans, H.A. Ring, Aug 2, 1927, 53/239 ; 53/248; 53/255- <--------------- Dry Cell Battery patent
1669054 Apparatus for Assembling Galvanic Cells, H. D. Hodge, May 8, 1928, 53/239 ; 429/122; 53/240; 53/250 <--------------- Dry Cell Battery patent
1763874 Battery Hand Lamp, John S. Zook (Burgess Battery Co),June 17, 1930, 362/199 ; 429/97
1778568 Hand Lamp Holder, Walter B. Schulte, Oct 14, 1930, 248/226.11 ; 248/224.8; 248/231.21; 248/314; 362/24; 362/396
1792185 Battery Hand Lamp, Feb 10, 1931, 362/199 ; 439/667- bulb-socket assy is rotated as switch
1916709 Dry Battery, (Burgess Batt Co), JAMES GARFIELD ZIMMERMAN, Jul 4, 1933, 429/149 ; 429/162 - small cells to make B batteries.
1945016 Battery Hand Lamp, John S. Zook, Jan 30, 1934, 362/186 - Railroad Type
1986281 Hand Lamp, Halyard F. Nygard, Jan 1, 1935, 362/197 ; 200/551; 200/60 - 45 deg swivel allows straight or angle head operation
D100199 Design for a Dry Cell Battery, Charles F. Burgess, June 30, 1936, D13/103- hexagon with spring contacts on each end, why?
2134856 Flashlight, Charles F. Burgess (Burgess Batt Co), Nov 1, 1938, 362/205 ; 362/191
2134857 Hand Lamp Switch, Charles F. Burgess (Burgess Batt Co), Nov 1, 1938, 200/60 ; 200/293.1
2231320 Dry Cell, Charles F. Burgess (Burgess Batt Co), Feb 11, 1941, 429/166 ; 429/133; 429/94 - No. 6 <--------------- Dry Cell Battery patent
2279575 Dry Cell, H.E. Lawson, Apr 14, 1942, 429/166 ; 429/134; 429/199 - wood balsam slows down corrosion of the zinc and extends shelf life
2390890 Method of Soldering, Allison M. MacFarland, Dec 11, 1945 228/179.1 ; 219/85.15; 228/246; 228/56.3; 228/58- combine 4 "F" cells to make 6 V Lantern Battery <--------- Dry Cell Battery patent
D143358 Design for Flashlight, Earl L. Schofield, Dec 25, 1945, D26/46 - not symetrical about the long axis
2416978 Capillary Transducer, Charles F. Burgess (Burgess Batt Co), March 4, 1947,310/300 ; 367/143 - liquid pressure to/from electrical energy
"    RE22971 Capillary Transducer, Charles F. Burgess (deceased), Feb 10, 1948, 310/300 ; 367/143
2637756 Deferred Action Battery, J.J. Coleman, et al, May 5, 1953, 429/119 -
2666803 Battery with Conductive Wax Intercell Connections, Sam Kurlandsky, (Burgess Batt Co), Jan 19, 1954, 429/159 ; 174/126.2; 252/514; 429/160; 429/162; 429/163 - I remember taking apart a 9 volt battery and finding this wax type substance inside.  Didn't know at the time that it was mostly silver.
2705253 Primary Battery, F. J. Kirkman, March 29, 1955, 429/133 ; 429/153; 429/209
2706214 Battery Having a Seal-Closure, Ray D. Arbogast, Apr 12, 1955, 429/66 ; 429/162; 429/185
2708684 Primary Cell, John I. Grieve, May 17, 1955, 429/133 ; 429/162; 53/227 - stackable button cells to make small higher voltage batteries.
D177955 Bracket for a Flashlight or the Like, Ray D. Arbogast, June 12, 1956, D8/355 ; D8/354; D8/396 -
2826626 Electric Battery, Milton E. Wilke, Mar 11, 1958, 429/118 ; 429/162 - deffered action
2829188 Deferred Action Battery, Harrison M. Mcdonald, Apr 1, 1958, 429/115

711624 Candle Holder, MORITZ HAMMERSTEIN (Max Blau), Oct 21, 1902, 362/190 ; 200/52R - Alladan's Lamp w/pop up electric lamp
741245 Electric Lamp or Candle, Conrad Hubert, Oct 13, 1903, 362/190 ; 200/60; D26/96 - button on base handle
744530 Portable Electric-Lighting Apparatus, Edwin E. Gill (Electric Contract Co ECCO), Nov 17, 1903, 362/190 -
1152580 Electric Switch, Louis Weidlich, Sep 7, 1915 - bar switch used on an electric candle.
1196913 Electric Candle-Lamp, Louis Weidlich, Sep 5, 1916, - uses a pointed thumb screw to pierce the cardboard battery jacket as switch
1205628 Portable Electric Light, G.F. Hitzelberger (American Eveready Co), Nov 21 1016, 200/60 ; 200/542; 340/321; 362/195; 362/206; 362/810- Candlestick cylindrical batteries in stem, push push on/off
1335644 Portable Electric Light, B. Benedict (Beacon Minature Co), Mar 30 1920, 362/190 ; 429/99- Candle type cells in stem, Electric Candle
1421561 Battery Candle, July 4, 1922 , 362/189 ; 429/99 -
1474451 Electric Candle, T. Stuckelberger, Nov 20, 1923,



1477875 Electric Candle, M. L. Kaplan, Dec 18 1923, 362/194 362/189  - no metal case around candle, just the battery
1477876 Electric Battery Lamp, M. L. Kaplan (not assigned), Dec 18 1923, 362/194 -
1477877 Electric Battery Lamp, M. L. Kaplan, Dec 18 1923, 362/194 429/96 -
1477878 Electric Battery Lamp, M. L. Kaplan, Dec 18 1923, 362/194
1479860 Electric Candle,G.M. Lewis, Jan 8 1924, 362/190 ; 362/186; 362/203 - has tapered bottom to fit candle holders
1518530 Electric Lamp, CLABENCE LIPPER, Dec 9, 1924, 362/190 ; 362/203; D26/96 - candle type lifting disk turns on lamp
1916472 Candle Flash Light, ISAAC X. FERRIS (Bridgeport Metal Goods Mfg Co), Jul 1933, 362/190 ; 362/186; D26/40 -
2031507 Electric Candle, Gloekler (H.Hyman),  Feb 1936, 362/190 -
1901589 PICK-UP CANDLE LIGHT
1980040 CANDLE LIGHT (Bond)
2002602 Flash Light of Candle Type, H.G. Graubner (National Carbon Co), May 28 1935, 362/190 ; 200/60- easy to form light metal outer shell with internal weight for stability
2049762 Portable Electric Lamp, Roy L. Darling (Bond), Aug 4, 1936, - Candle type with lamp at top and another at bottom
2704322 BATTERY OPERATED CANDLE
3233093 PROCESSIONAL CANDLE
3194955 ARTIFICIAL CANDLE
3373274 ELECTRICAL CANDLE APPARATUS
3340391 BATTERY-OPERATED DECORATIVE CANDLE LIGHT
3355582 Battery Powered Lighting Device, Eugene A. Swee (Miner Ind), Nov 1967, 362/190 ; 362/203 - candle light with decorative globe
3586320 POP-UP CANDLE AMUSEMENT DEVICE
3762857 CANDLE INTERNAL ILLUMINATOR AND MOUNT BASE
3761702 INTERNALLY ILLUMINATED CANDLE
3890085 ILLUMINATED CANDLE STRUCTURE
4187532 Electronic candle
4399496 Battery powered lamp device
4568269 Musical candle
4680683 Battery and bulb conversion cartridge for self-feeding candle holder
4755135 Candle device
4839780 Simulative candle
5057005 Candle device
4983119 Musical candle actuated by thermistor switch
5097180 Flickering candle lamp
5015175 Melodic candle assembly
5069617 Wax-accumulated musical candle
5174645 Electric candle with sound producing means
5419527 Candle holder
5487658 Safety device for novelty candle holders
5683239 Candle holder
5601272 Candle holder
5622490 Candle holder
5673802 Rotatable cake candle holder
5600209 Electronic candle simulator
5807096 Decorative candle assembly
D406379 Electronic candle
6066924  Candle emulation
6017139 Electronic candle
RE37168 Electronic candle simulator
6267584 Prayer candle device
6273710 Prayer candle device
6270339 Prayer candle device
6439471 Candle fountain
6468071 Prayer candle device
6520770 Prayer candle device
6616308 Imitation candle
6808297 Decorative candle lamp
7029146 Flameless candle
6685345 Convertible candle lamp and method
6685337 Combination flashlight and candle lantern
6880958 Electric lighting device in the form of a candle
6981786 Electrical candle lamp
6929381 Solar powered electric candle
6926423 Light with simulated candle flicker
7011426 Modular electronic candle
7063526 Refillable melody candle
7098600 Candle with internal illumination
7178939 Electronic simulation candle
7201500 Candle with LED simulated flame
7121686 Candle light-diversifying device
7182489 Electrical candle lamp
D85929 Portable Electric Lamp, George Graff (Dura Co), Aug 23 1960, D26/41 ; D26/96 -
D29955 Electric candle
D188691 Portable Electric Lamp, Albert Gelardin, Aug 23 1960, D26/41 ; D26/96 -







Got this on eBay for 99¢ hopping that the lamp would work in the Eveready 1653, but it uses a 12 mm Edison screw base, not the 10 mm.
Uses a couple of "C" cells for power.  The brass lamp socket works as the switch. 7" tall w/o lamp and 9 1/2" tall w' lamp.

Made in Taiwan
"Solid Brass Battery Lamp"
Item No. 6817
The box shows a red stick, this one has a white stick.

Eveready No. 2238 Table Masterlite

The model 2238 is part of the Art Deco Masterlite series and is a table light, not a wallite.  In 1935 they sold new for $2.50. At 6% per year inflation that would be $176 in 2008.
When sitting on a table it's pleasing to look at.  If you grab the milk glass globe and lift it very gently the light does not turn on, but if lifted normally it turns on.
When sitting on the table a soft light comes from the milk glass globe, similar to a candle light, but much nicer since it's diffused and is a warm color.  On the bottom there are 4 rivet heads that it sits on so there's a small gap that lets out a little light from the reflector.

When lifted up there is a reflector and it can be operated like a normal flashlight.   The lamp is mounted "backwards" in the reflector, i.e. the bulb is facing the reflector not the front like in normal flashlights.  This allows light to reach the globe and the reflector.  But it makes it harder to adjust the focus of the lamp in the reflector which requires opening the case, turning the brass knob, closing the case testing the beam shape, and repeating a number of times.

The base is marked:
Eveready Masterlilte Made in U.S.A. Pat. Pend.   <--------Turn To Open

The 1 7/8" diameter glass globe is made with very thick glass and is very strong.  I wonder if it's also used on walking canes?
Uses  a couple of "C" cells.  Weighs 1 pound 3 ounces a substantial heft.  4" diameter x 3 1/2" overall height.

The four vertical ribs are formed leaving a slight gap behind each.  If a flat blade screwdriver is placed in two of these gaps (after rotating the base counterclockwise, there is a recess in the base to make it easy to remove.  The slots to use are the ones NOT adjacent to the two outer rivets that hold the reflector.
Brass sheet metal is used for the wiring and is trapped by wrapping an insulator around it then wrapping other sheet metal.  The same method as used for the Art Deco Pocket light.
A box 4" x 4" x 4" will hold the table masterlite.
Bill Utley's page 224 has a photo of Evenlyn Kelley on the set of "Anything Goes" with the table masterlite on a bedside stand along with a Western Electric 202 telephone.

2152187 Flashlight, Herman G. Graubner (Union Carbide),  (filing: Oct 25, 1935) Mar 28, 1939, 362/186 ; 200/60; 250/462.1; 362/187 -	D100074 Herman G. Graubner (Union Carbide), (filing: Oct 21, 1935) Jun 16 1936, D26/40

This is a table light of the wood box type but instead of the battery compartment holding three "F" cells like most of these (see the Eveready Projection Clock for example) this one came with what looks like the original working lamp marked ph. 2.5V 0.2A which implies a two cell battery.  The inside of the battery box measures 3 1/2 x 2 5/8 x 1, but the battery contacts limit the length to 3".
The MN1203 4.5 Volt battery seems like a good fit so I don't understand the two cell lamp?
No markings or makers name or patent dates.  Unknown vintage.

  641463 Portable Electric Light, HERMANN J. MULLER, Jan 16 1900, 362/190 ; 200/60 - wood box four cells
  642648 Electric Lighting Device, W. VAN DUZER (M. Munson Shearing), Feb 6 1900, 362/198 ; 340/321 - made to be used sitting on table
1516128 Electric Boudoir Lamp, CHARLES WACHTEL (Leo Schlesinger & Co), Nov 18, 1924, 362/190 ; 200/60; 200/81R -
1655746 Electric Boudoir Lamp, CHARLES WACHTEL (not assigned), Jan 10 1928,200/4 ; 200/60; 200/85R; 362/392 -
1665867 Electric Boudoir Lamp, CHARLES WACHTEL (not assigned), Apr 10 1928, 362/190 -
2177337 Automatic Illuminated Glass Holder, Alexander Stein, Oct 24 1939, 362/154 ; 219/433; 362/101; 362/802 similar to candlestick but with fingers to hold glass which is illuminated from below.

These are very similar applications and it's common for a patent to mention both.

Unknown Walking Cane Flashlight 33"

The sheet metal part holds a single "C" cell.  The tab above the lamp hooks over the lip of the wood cane so the lamp is down from the top but not seated in the bottom of the hole.  The metal cap fits nicely. A theory of operation is that a (missing) spring pushes the battery and sheetmetal part up slightly which pushes up the metal cap.  When the metal cap is pressed down the sheet metal part comes in contact with either the spring or a metal part holding the spring completing the circuit.  The red O-ring in the cap would hold a glass lens.

  24718 Walking Cane, Ansel Cain, Jul 12, 1859, 362/102 ; 135/66 - has flame type lamp surrounded by glass cylinder
  754631 Lamp for Canes, Umbrella Sticks and the Like, J.W. Allen, Mar 15 1904, 362/102 ; 135/66; 362/186
wire connects to terminal on top of long cylindrical battery
 465949 Electric Cane, Alfred W. Roovers, Dec 29, 1891,  607/115 ; 135/65; 200/520; 336/107; 336/66; 336/92; 361/232; 361/268 -
484618 Electric Appliance for Canes, Stephen D. Smith, Oct 18, 1892, 607/115 ; 135/65; 336/66; 361/232; 361/268; 362/102 -
575332 Electrically-Illuminated Jugglery Apparatus, Morris Cronin, Jan 19, 1897, 362/102 ; 362/185 - Indian Club
639690 Electric Cane, Walter N. Sherman, Dec 19, 1899, 361/268 ; 135/65; 200/520; 200/60; 340/321; 362/102 -
744348 Illuminated Indian Club, M.M. Hurst, Nov 17, 1903, 482/1 ; 340/321; 362/102; 473/220; 482/109 -
754631 Lamp for Canes, Umbrella Sticks or the Like, James W. Allen, Mar 15 1904, 362/102 ; 135/66; 362/186 - forward or upward facing
786040 Policeman's Mace, O. Liberman, Mar 28 1905, 362/102 ; 362/109; 463/47.4 - many cells and lamp at end
879640 Campaign Cane, C. Hockenberry, Feb 18 1908
1051370 Novelty Cane or Umbrella, Tobias Hertz (Brooklen Wireless Electrical Novelty), Jan 21 1913, 362/102 ; 135/910
1067646 Search Light for Unbrella Handles, Downey, Jul 15 1913, 362/157 ; 135/910; 56/307 - long cylindrical battery
1079088 Flash-Light, F. Wysocki, Nov 18 1913, - cane or unbrella handle
1151114 Flash-Light, G. Matthies, Aug 24 1915, 362/157 ; 135/910; 340/321- umbrella or cane handle
1166272 Electric Umbrella, W. Smithing, Dec 28 1915, 362/102 ; 135/66; 135/910 - lamp at bottom of pole, above fabric and at the end of each rib
1177241 Search Light for Unbrella or Cane Handle, Samuel S.Gay, Mar 28 1916, 362/157 ; 135/910; 362/102 -
1227012 Flash-Light or Electric Torch, M.H. Spielman, May 22 1917, - Cane with screw cap switch
1227013 Flash-Light or Electric Torch, M.H. Spielman,May 22 1917, - single AA screw cap is switch
1427138 Umbrella Handle Lighting Device, Walicki, Aug 29 1922, 362/157 ; 135/910; 362/102 - "T" handle, switch has point that grounds battery
1659346 Light for Umbrellas or Canes, J.H. Beatty, Feb 14 1928, 362/102 ; 135/910- light is in pole above umbrellaw/ 360 deg coverage
1720228 Combined Flashlight and Umbrella, FRABTK DAVID MALUM, Jul 9 1929, 362/202 ; 362/102; 43/17 - grip w/light swivles
1795268 Umbrella, I. tomases, Mar 3 1931, 362/102 ; 135/65; 135/910; 340/321; 340/815.75- light above fabric
1807501 Flash Light Holder, J.R. Alexander, May 26 1931, 248/229.14 ; 362/396 -  like for bicycle handlebar or cane, umbrella etc
1824449 Cane, Sjoberg, Sep 22 1931, 135/66 ; 135/910; 362/102- with light
2104340 SIGNAL UMBRELLA Jan 1938
2201602 Mercury Switch, C. N. Wiles, May 21 1940, - Mercury switch in umbrella pole turns on light when pointing up
2245349 Illuminating Cane, Lombardi, Jun 10 1941, 362/577 ; 135/66; 135/910; 340/321; 362/102 - translucent section above tip
2246836, Illuminated Stick of Umbrella, Anna L. Campbell,Jun 24 1941, 362/577 ; 135/910; 340/321; 362/102 -
2259443 Illuminating Cane and Umbrella Handle, Frank A. Geier, Oct 21 1941, 362/102 ; 200/60; 340/321 - optional shape translucent lamp caps
2271190 Walking Stick or the Like, Giaimo, Jan 27 1942, 362/102 ; 135/910 - lamp near tip. removable tip to replace lamp
2372471 Illuminated Umbrella, Anna L. Campbell, Mar 27 1945, 135/66 ; 135/910; 362/102 - plastic light pipe
2435650 Illuminated Walking Stick, J.H. Greene, Feb 10 1948, 362/102 ; 135/66; 135/910; 340/321; D3/7 - translucent tip
2478325 Illuminating Attachment for Canes and the Like, A.P. Russell, Aug 9 1949, 362/102 ; 135/910; 362/197 - horizontal handle with down facing reflector
2507919 Umbrella, Frank J.mazzeo, May 16 1950, 135/41 ; 135/910; 15/236.06; 211/197; 362/102 - lamp above fabric
2597172 ILLUMINATING CANE, Jejro Parker, May 20 1952, 362/102 ; 135/66; 135/910; 16/111.1; 16/903; D26/38 -
2642519 Luminous Cane, Caustin, Jun 16 1953, 362/577 ; 135/910; 340/321; 362/102 - translucent section above tip
2734124 Illuminated Umbrella Handle, Marfow J. Funk, Feb 1956, 362/102 ; 135/910 -
2966578 Flashlight Umbrella or Cane, D.J. Coffey, Dec 27 1960, 362/102 ; 135/910; 362/191; D26/38 - flashlight can be removed
3016549 LIFE SAVING EQUIPMENT, R.J. Finn, Jan 16 1962, 441/85 ; 362/102 - combined police night stick and light that floats and has lanyard
3227867 First Aid Umbrella, C. F. BAKER, Jan 4 1966, 362/102 ; 135/16; 206/440; 206/570; 206/803; 206/811; 312/209; 362/109 - first aid kit in umbrella w/light
3275815 Protective Device such as Umbrrella, Sun Shade or the Like, Petroff, Sep 27 1966, 362/577 ; 135/910; 362/102
3281586 Umbrella Light, R. Gonzalez, Oct 25 1966, 362/102 ; 135/16; 135/910; 362/184; 362/269- detachable FL
3777136 Umbrella having an Electric Lamp, Shigekazu Okuda, Dec 4 1973, 362/102 ; 439/842 - beacon above fabric crimp connections
4013881Safety signal cane, Otto E. Sargent, Mar 22, 1977, 240/642; 240/103R - flashing translucent above tip
4020858 Safety umbrella, Inez F. Wilson, May 3, 1977, 135/20R; 135/66; 135DIG10; 240/642 - lamp above fabric
4031381 Illuminatable umbrella, Phyllis Carver, Jun 21, 1977, 240/642; 135DIG10 - flasher
4062371 Walking cane, Lawrence A. Bolen, Dec 13, 1977, 135/66; 135DIG10; 320/3; 320/48; 362/102 - marker light for blind person
4099535 Light emitting walking cane, Louis H. Hubachek, Jul 11, 1978, 135/66; 135DIG10; 362/102 - marker light for blind person
4625742 Multi-function lighted walking cane, Jerry G. Phillips, Dec 2, 1986, 135/66; 135DIG10; 362/102 - marker light-grounjd illumination
4860179 Iluminated Umbrella, Paul Y. H. Mui, Rosa Y. M. Tso, Aug 22, 1989, 362/102; 362/800 - selectable steady or blink light
4872468 Safety umbrella, Ronald S. Cole, Oct 10, 1989, 135/16; 135DIG10; 135/33R; 135/34; 362/102; 362/32 -
5126922 Illuminated umbrella or parasol, R. Andreasen, Jun 30, 1992, 362/32; 362/102 - two different fiberoptic circuits
5219402 Stick usable at daytime and night, Yoshio Kondo, Mitsuru Kobayashi, Jun 15, 1993, 135/66; 135/910; 362/102 - invalid cane
5280799 Umbrella with two-way flashlight, Philip M. Alajajian, Jan 25, 1994, 135/16; 135/254.1; 135/910; 362/102 - forward or downward
5307251 Pedestrian crossing safety device, Terry L. Shaffer, Apr 26, 1994, 362/102; 362/84; 362/158; 362/186; 405/42 -strobe for crossing guard use
5323798 Flashing umbrella, Chiu-Hsiung Yang, Jun 28, 1994, 135/16; 135/910; 362/102 - LEDs
5463536 Umbrella with a light source and light refracting means, Luk Chou, Oct 31, 1995, 362/102; 362/32 - light pipe rod
5493480 Illuminated umbrella, Tien-Tsai Huang, Feb 20, 1996, 362/102; 362/32; 135/910 - hollow tube passes light
5584564 Battery operated lighting apparatus, Charles E. Phyle, Dec 17, 1996, 362/102; 362/191; 362/234; 362/431; 135/910 - illuminated patio umbrella
5960805 Luminous umbrella, Sean Murphy, Oct 5, 1999, 135/16; 135/910; 362/102 - under side of fabric is reflector aiming light at ground
6068006 Luminous umbrella
6145993 Illuminated cane tip
6959996 Lighting apparatus with convenient and concealed mounting mechanism and a
7287538 Illuminating umbrella grip
D207764 COMBINED WALKING CANE AND LIGHT
D278387 Illuminated cane
D96050 Combined Flash Light and Umbrella Handle or Similar Article, Samuel Osterman, Jun 25 1935, D3/13 ; D26/49- stick coming from battery cap
D96051 Combined Flash Light and Umbrella Handle or Similar Article, Samuel Osterman, Jun 25 1935, D3/13 ; D26/46- stick coming from battery cap

Patent Number	Title	Issue date
D287191	Umbrella handle	Dec 16, 1986
4872468	Safety umbrella	Oct 10, 1989
4881154	Illuminating umbrella handle	Nov 14, 1989
D393539	Illuminated umbrella with safety alarm	Apr 21, 1998
D415299	Combined flashlight and umbrella handle	Oct 12, 1999
D422784	Umbrella with twin lights	Apr 18, 2000
D430726	Umbrella handle with flashlight	Sep 12, 2000
6126291	Umbrella having detachable illuminative grip	Oct 3, 2000

Prior to being one of the founders of Delta Electric John J. Brownrigg worked in the telephone business.  One of the first products of Delta Electric was a Coin Collector.
1198005 Toll Telephone System, (Delta Electric Co)
1205150 Coin-Collector for Telephone Systems, J.J. Brownrigg, Harry Henderson & Arthur E. Case (Delta Electric Co), [filed: Jan 26, 1914], Nov 21, 1916, 194/243 ; 232/58- single slot multi denomination coins
1250960 Portable Electric Lamp, Arthur E. Case (Delta Electric), Dec 25, 1917, 362/370 - bicycle headlight.  No. 6 Dry Cell, wires ending in tip pins plug into back of light
1295497 Portable Electric Lamp, Henderson & Arthur E. Case (Delta Electric Co), Feb 25 1919, 362/206 ; 362/202 - regular cylindrical FL but dovetailed sheetmetal

Candle Power Forums - A Short History of the Delta Electric Company

D46427 Portable Electric Lamp, J.J. Brownrigg (Delta Electric), [Filed Aug 1 1914], Sep 22, 1914, D26/50 - based on the No. 6 Dry Cell

This is very similar to 1152082 issued Aug 31 1915, see below.

D53568 Electric Lamp, Arthur E. Case (Delta Electric),  Jul 15, 1919, D26/34 - combined Lamp & rear view mirror
D59301 Flashlight, Walter B. Stepehenson, Oct 4 1921, D26/49 - big bulging glass lens
D95943 Electric Lantern, L.M. Wiley, Jun 11 1935, D26/37 ; D10/114 - vertical cylinder with two way horizontal facing lamps (like a RR signal)
D99755 Lamp, L.M. Wiley, May 19, 1936,  - bicycle Rocket with tail fin (before the spacd age, maybe Flash Gordon or a movie?
D110832 Lamp, W.C.Crimmins, Aug 9 1938, D26/28 - bicycle square cross scetion but streamlined
D111955 Lamp, William C. Crimmins, Nov 1, 1938, D26/36 - bicycle square cross scetion but streamlined
D111956 Lamp, William C. Crimmins, Nov 1, 1938, D26/36 - bicycle square cross scetion but streamlined
D116730 Lamp, William C. Crimmins, Sep 19, 1939, D26/36 - bicycle cylinder with ball ends maybe 1 "D" cell
D118553 Lamp, William C. Crimmins, Jan 16, 1940 - bicycle streamlined
D184378 Cicycle Taillight, John Sinaltz, Feb 3, 1959 - bicycle fins streamlined
D184379 Bicycle Headlight, John Sinaltz, Feb 3, 1959 - bicycle fins streamlined

1428755 Electric Lamp, Arthur E. Case (Delta Electric), Sep 12, 1922, 362/285 ; 362/278; 362/289; 362/396; 362/419 -
1430939 Portable Electric Lamp, Arthur E. Case (Delta Electric), Oct 3, 1922 362/206 ; 200/60 - glass lens cylinder type
1549749 Spotlight, Clarence P. Davey, Aug 18, 1925, 362/424 - automobile sucured in windshield frame
1740535 Electrical Switch, CARL BRAMMING, Dec 24, 1929, 200/16D ; 200/16R; 200/550 - SPDT slide switch
1848812 Reflector Assembly, L.M. Wiley, March 8 1932, 362/208 ; 362/187; 362/341; 439/544 - for screw in bulb
1857993 Electric Lantern, L.M. Wiley, May 10 1932, 362/197 - 2 "D" cells rectangular case
1913696 Self Contained Lighting Unit, Wiley (Delta Electric), Nov 13 1933, 362/186 ; 429/97 - similar to the Eveready Wallite
2053591 Electric Lantern, L.M. Wiley (Delta), Sep 8 1936, 362/21 ; 340/815.76; 362/208; 429/96 - 4 "D" cells, can sit on either end many features


2106231 Bicycle Lamp, L.M. Wiley, Jan 25, 1938, - 362/191 ; 220/DIG.13; 340/432; 340/815.75; 362/208 - bicycle Rocket with tail fin (before the space age, maybe Flash Gordon or a movie?
2191932 Bicycle Lamp Structure, William C. Crimmins, Feb 27, 1940, 362/196 ; 200/60; 220/DIG.13; 340/815.75 - bicycle streamlined
2418759 Flashlight, William C. Crimmins, Apr 8 1947, 200/60 ; 200/302.1; 362/204 - cylindrical
3073949 Bicycle Lamp, John D. Smoltz, Jan 15, 1963, 362/191 - head contains a couple of AA cells
3116025 Lantern with Signal Lamp (Delta Electric), J.D. Smaltz, Dec 31, 1963 - no case, attaches to top of battery with screw on post terminals has swing up

Patent 2013380	Little Stream Line Lantern	Patent 2013380
William M. Moxley - Light Weight Lantern Co. Streamline 2 D cell flashlight. This is the same design as the original Moxley except it's for "D" cells instead of "F" cells. This light (and the Star 222, Conger)was owned by Jack Dale Lewis.  He worked for 40 years on the Northwestern Pacific Railroad, which is a subsidiary of the Southern Pacific Railroad.  He was the "Road Foreman" and "Trainmaster" for the railroad lines from Eureka to San Rafael.  A 24-hour a day, 7 days a week, always on call position, which is why he was stationed in Willits, being it is half-way.  As an "Official" he was not part of the union, received a salary and travel expenses, and was required to wear a suit and tie.  Even so, he did oversee many night time travesties, like train wrecks, etc.  His wife was continually ironing and washing when he would come home full of mud and grease.  Usually his excuse was he couldn't see in the dark and had slipped or fallen in the mud.

Becuase of their reliability were adopted for railroad signaling.  Very important that train engineer see the signal at night.

This "Little Stream Line Lantern" was made by the Light Weight Lantern Co., 916 Wyandotte St., K.C. Mo.
under the patents marked * below.  It takes a couple of batteries the same diameter as the common "D" cell but longer called "F" cells.   For more on "F" cells see my No. 6 Dry Cell page.  The center off switch selects one of the two bulbs.  Since the bulbs appear to be the same this must be a spare bulb system that can be brought into play very quickley.   Made from sheet brass.  Iron or steel wires used for the stand at the bottom.

Hand stamped in the side NH 332.

One lamp might say T11N and the other 2.5?.  0.37" dia screw base with 0.43" dia spherical bulb

*2096349 Lantern Base Support, W.M. Moxley, October 19, 1937, 362/186 ; 220/628; 248/153; 362/185
*2013380 Multipule Bulb Electric Lantern, J.H. Easley, Sep 3, 1935, 362/185 -
*2113159 Bail, W.M. Moxley, April 5, 1938, 220/775 ; 29/512; 29/522.1; 29/526.2; 403/235; 403/247; 411/427

controled friction between bail and latern.

*2127133 Latern Base Support and Lamp Socket, W.M. Moxley, August 16, 1938, 362/185 ; 362/186; 439/665
2280343 Battery Retaining and Tensioning Means for Hand Laterns, W.M. Moxley, Apr 21, 1942, 362/186 ; 362/185
2283384 Battery Retainer for Electric Hand Lanterns, W.M. Moxley, May 19, 1942 ,362/185 ; 429/96
2285045 Bulb Carrying Compartment for Handles of Electric Lanterns, June 2, 1942, 362/191 ; 16/111.1; 16/903; 220/756; 362/207
2286685 Combined Battery Retainer and Bulb Carrier for Electric Lanterns, W.M. Moxley, June 16, 1942, 362/185 ; 362/207; 429/96
2300304 Colored Globe Support for Electric Lanterns, W.M. Moxley, October 27, 1942, 362/185
2308821 Switchless Multiple Bulb Electric Lantern, W.M. Moxley, January 19, 1943, 362/185 - ICC mandated 3 bulb no switch latenr that must not fail to be able to signal a train.  bulbs unscrew and are held in place with spring.
2312843 Closure for Receptacles, W.M. Moxley, March 2, 1943, 429/163 - new battery cover that rotates on/off, not threads
2312844 Combined Switch and Spare Bulb Carrier for Electric Hand Lanterns, W.M. Moxley, March 2, 1943, 362/185 ; 362/207 - Railroad signaling latern, now has round case (what battery is used?)
2315726 Combined Battery and Cover Retaning Means for Electric Hand Lanterns, W.M. Moxley, April 6, 1943, 362/184 ; 220/293 - cover will keep batteries in contact even if latern is inverted or is swinging back and forth. (railroad use mentioned again) maybe 4 "D" or "F" cells?
2324715 Multiple Switch, Multiple Bulb Electric Lantenrs, W.M. Moxley, July 20, 1943, 362/185 ; 200/60; 362/186 - uses two switches wired like a hall light so either switch can turn lantern on or off.  Uses a single battery, most likley a 6 volt "Lantern Battery".
2383337 Extensible Battery Cell Holder for Electric Lanterns, W.M. Moxley, August 21, 1945, 362/185 ; 429/99 - takes cells of different length.  1945 must be when the "D" cell became the standard "Flashlight" battery and the "F" cells became hard to get.  Although W.W. II flashlights used "D" cells.

D193204 Lantern - swivel head electric (6 volt) - attachment for 6 volt battery
D174287 Portable Hand Lantern, Charles S. Packer, Mar 22, 1955
D174288 Portable Hand Lantern - two position handle, angle head
D174287 Portable Hand Latern - why?
D224839 Carbide Lamp - why?
D46905 Design for Acetylene-lamp Body - why?

Electric

Although marked USN, Empire, The Metal Ware Corp, Two Rivers, Wis, the features have the feel of Justrite 1900906. Two wide, two high battery box very similar to the Justrite Light Stick.  Slide switch on top of battery box.  Belt clip on back of battery box. Screw on head unit both can remove reflector to change E10 based lamp and focus it. If you know more about this headlamp or Metal Ware Corp, let me know. 1900906 Portable Electric Illuminating Apparatus, LeRoy O. Brown, Mar 14 1933, 362/197 ; 340/321; 362/105; 362/157; 362/486; 429/97 - 4 "D" head worn light

This is called the Light-Stick and is a 4 "D" cell flashlight. On the back is a belt clip and on the bottom is a bail allowing it to be supported in many ways. These were used by the phone company among others. Uses a No. 27 lamp (5 V 0.3 A).  Focus by turning the lens ring.  Spare lamp inside head. 3084248 Pivoted reflector holder for a hand lantern, Nicholas W Keller, Charles S Packer, William B Rosinski, Justrite Manufacturing Co, Apr 2, 1963,  362/199, 200/60, D26/44 -

2164898 Electric Lantern, LeRoy O. Brown - Miner's electric lantern, batteries behind head lamp in front.
2245707 Electric Lantern, C.S. Packer, Justrite Mfg Co., - triple lamp railroad lantern, 6v battery
2385639 Flashlight - minimum volume 3 cell light about as high as a 2 cell light.
2502169 Portable Electric Lantern Charles S. Packer (Justrite) Mar 28, 1950, 362/184 - aimed at ICC railroad application
D111626 Design for an Electric Lantern, LeRoy O. Brown, Oct 4, 1938 - Miners, lamp attaches to battery box

Carbide

311583 Inextinguishable Lamp for Marine and Land Purposes, J.R. Holmes, Feb 3, 1885, 441/15 ; 48/4 - UK patent 1884
552099 Apparatus for Generating Gas, W.C. Clarke (relation?), Dec 31, 1895, 48/59 ; 48/4 -

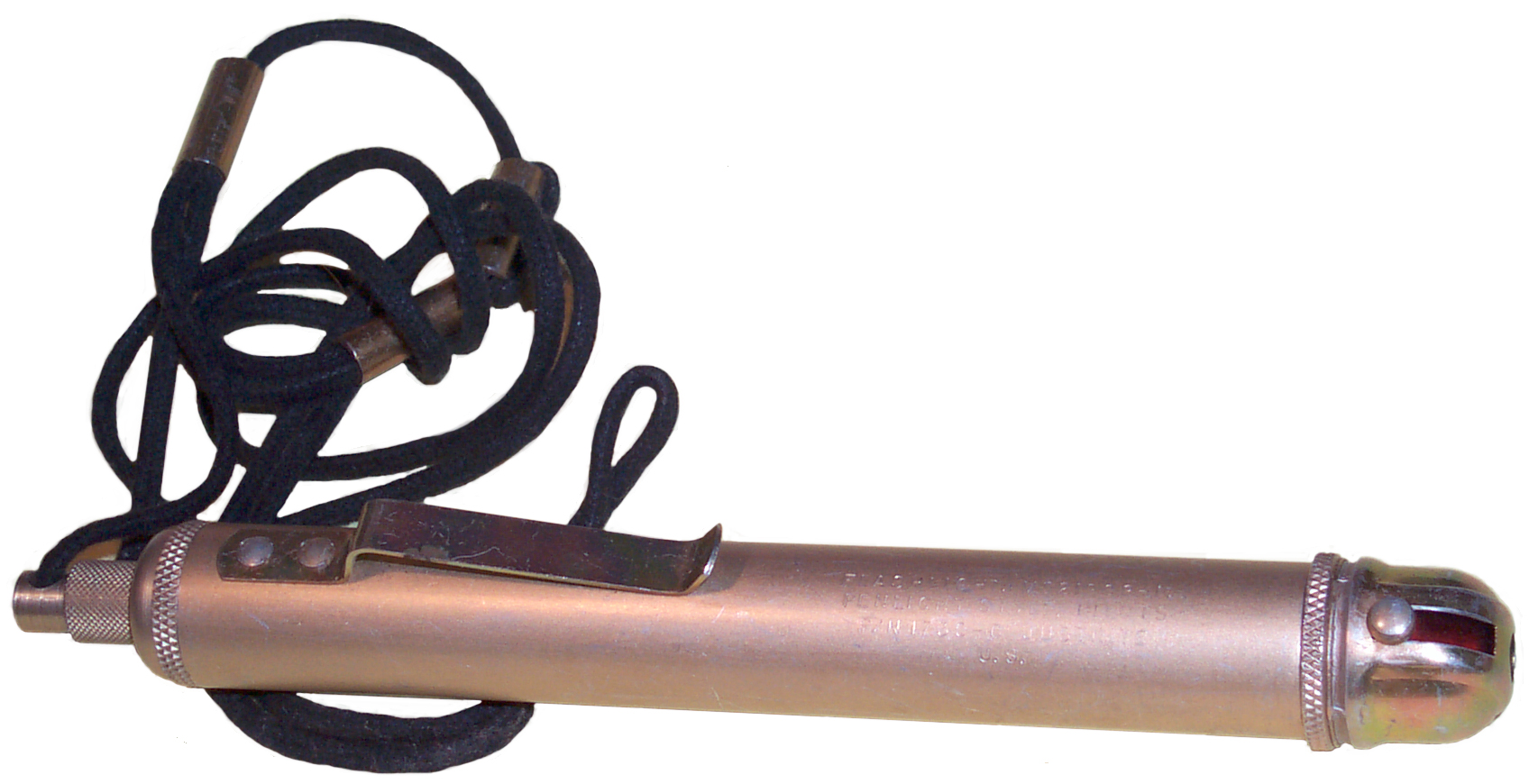

Justrite

1137755 Multiple Carbide Container, May 4, 1915
1161209 Portable Acetylene-Lamp, Nov 23, 1915
1224537 Acetylene-Lamp, May 1, 1917
1230892 Acetylene Lamp, Jun 26, 1917
1295744 Acetylene Lamp, Feb 25, 1919
1296507 Methods of Bruning Acetylene and Similar Hydrocarbon Gasses for Illuminating Purposes, March 4, 1919
1344299 Spark Wheel Toothing Machine - rotary machine can make wheels in volume, Jun 22, 1920
1429420 Spark-producing Mechanism, W.J. Frisbie, Sep 19, 1922
1476962 Spark-producing Mechanism, Dec 11, 1923
1968369 Lamp Attaching Clamp (Carbide Lamp), LeRoy O. Brown, July 31, 1934
3735120 Modularly Constructed Plastic Carbide Lamp, May 22, 1973
3953723 Plastic Carbide Lamp, Apr 27, 1976

Carbon is a key ingredient of both gunpowder and dry cell batteries.  Both dry cells and metallic cartridge ammunition are metal cans that hold the carbon based chemicals.  So a company that makes black powder ammunition would already have some of the technology in place.  So it's logical for Winchester Repeating Arms Co. to also be in the dry cell business, and the flashlight business to go with it , just like ammunition and guns.

A flashlight with the cap marked:
E. C. Simmons, STEDY-LITE, Trade Mark, Made in U.S.A.
and the switch marked:
Patents: Jun 29 20, Aug 17 20
Those dates match patents 1344735 & 1349860 and the design of the flashlight also matches.
But the assignee is the Winchester Repeating Arms Co. so Simmons was making these under their patents.

D55571 Battery Hand Lamp, Jun 29, 1920, D26/49 - A cylindrical flashlight with  lens
1344735 Hand Lamp Switch, Jun 29, 1920, 200/60 ; 340/321; 362/205; 362/310
1349860 Hand Lamp Switch, Aug 17, 1920, 200/60 ; 362/205; 362/310
1358839 Battery Hand Lantern, Nov 16, 1920, 362/205 ; 200/60- cylindrical lens & reflector
1361846 Battery Hand Lamp, Dec 14, 1920, 362/204 - cylindrical lens & lamp
1361920 Battery Hand Lantern, Dec 14, 1920, 362/205 ; 362/208 - cylindrical lens & reflector
1368278 Hand Lamp Switch, Feb 15, 1921, 200/60 ; 362/204; 362/205 - cylindrical lens & reflector
1388990 Dry Cell, Aug 30, 1921, 429/134 ; 429/172 <-------------------- Dry Cell Battery Mfg
1396828 Handlamp, George D. Galager (Winchester), Nov 15, 1921, 200/60 ; 362/2051 - Pocket Flash Light
    RE15549 Handlamp, Feb 20, 1923
1396829 Hand Lamp Switch, Nov 15, 1921, 200/60 ; 362/205 - only switch different from Conrad's PFL
1396830 Hand Lamp Switch, Nov 15, 1921, 200/60 ; 362/205 - only switch different from Conrad's PFL
1398366 Dry Cell, Nov 29, 1921, 429/82 ; 429/130; 429/172 <-------------------- Dry Cell Battery Mfg
1398736 Handlamp, Nov 29, 1921, 362/205 ; D26/46 - cylindrical switch flush with tube
1419728 Hand Lamp Switch , Jun 13, 1922, 200/60 -  cylindrical lens & reflector
1419729 Hand Lamp Switch , Jun 13, 1922, 200/60 ; 362/205; 362/310 - cylindrical lens & reflector
?1421548? Flash Light, July 4, 1922, 362/208
1421561 Battery Candle, July 4, 1922 , 362/189 ; 429/99
1421944 Spotlight, July 4, 1922, 362/187 - cylindrical focusing reflector flat glass
1430727 Manufacture of Dry Cells, Oct 3, 1922, 29/623.1 <-------------------- Dry Cell Battery Mfg
1433570 Battery Hand Lamp, F.G. Stimpson, Oct 21 1922,362/187 ; 292/DIG.15 - adjustable focus by moving reflector
1436340 Hand Lamp Switch, George D. Galager (Winchester), Nov 21 1922, 200/60 ; 362/200 -for pocket or cylindrical uses either bent metal tabs or eyelets
1437476 Battery Hand Lamp Switch, Dec 5, 1922, 200/60 - cylindrical lens & reflector
1445245 Spotlight, Feb 13, 1923, 362/188
1445246 Spotlight, Feb 13, 1923, 362/188
1445247 Spotlight, Feb 13, 1923, 362/188
1447050 Antirolling Handlamp, Feb 27, 1923, 362/208
1454530 Handlamp, May 8, 1923, 362/191 ; 248/102   - chain from rear cap to switch
1470776 Flashlight Switch, CHARLES H. STEVENSON, Oct 16, 1923, 200/60 ; 200/559; 362/205 - 2 eyelets hold body, 1 eyelet holds spring

Pocket Flash Light with Lens and accidental on prevention switch

Uses the MN1203 tab battery ( three B cells) 4.5 volts

1471185 Hand Lamp Switch, Oct 16, 1923, 200/60 ; 235/63A - pocket flash light larger hole admits button, narrow slot prevents activation
Probably not this patent but the switch is similar.
The top slips off to change lamp.  Battery door is hinged, but has some depth, not just a flat plate.

Probably 3B cell battery.

There's a nice silvered reflector above the socket, but the spherical lamp marked "MAZDA" has a horse collar made of white plastic that covers up the reflector.  What's up with that (let me know) or if you know anything about this pocket flash light?

Approximately life size.




1477892 Handlamp,  Dec 18, 1923, 362/204 ; 200/60; 362/208 - cylindrical lens and reflector
1488948 Dry Cell, Apr 1, 1924, 429/134 ; 429/201; 429/224 - cylindrical lens and reflector
1498330 Hand Lamp Switch, Jun 17, 1924, 362/204 ; 200/60 - cylindrical lens and reflector
1498331 Hand Lamp Switch, Jun 17, 1924, 362/201
1498332 Hand Lamp Switch, Jun 17, 1924, 362/205 ; 200/60
1498761 Hand Lamp Switch, Jun 24, 1924, 200/60 ; 362/205; 362/310 - cylindrical lens and reflector
?1499521? Handlamp, Jul 1, 1924, 362/204 ; 200/60
1502567 Hand Lamp Switch, Jul 22, 1924, 200/60 - cylindrical lens and reflector
1510835 Machine for Tamping Dry-Cell Cartridges and the Like, Oct 7, 1924, 425/128 ; 141/80 <-------------- Dry Cell Battery Mfg
1522244 Handlamp Switch, F.L. Humston (Winchester), Jan 6 1925, 362/208 362/205  - cylindrical lens and reflector First mention of "Switch"?
1527972 Handlamp, Mar 3, 1925, 362/205 ; 200/60; 362/204  - cylindrical lens and reflector
1564951 Manufacture of Dry Cells, Dec 8, 1925, 29/623.2 <-------------- Dry Cell Battery Mfg
1578512 Focusing Handlamp, March 30, 1926, 362/188 - cylindrical reflector, E10 lamp flat glass
1658428 Carbon Pencil Feeding Mechanism, Feb 7, 1928, 198/400 ; 193/47 <-------------- Dry Cell Battery Mfg
1688560 Battery Hand Lantern, Oct 23, 1928, 362/191 - cyllindrical tail cap bail for hanging
1688373 Battery Hand Lamp, Oct 23, 1928, 362/191 - cyllindrical tail cap bail for hanging
1771002 Bulb Holder for Flash Lights, H.W. Staples (Winchester), Jly 22 1930, 439/665 362/208  - spare bulbs
1996577 Combination Headlight and Hand Lamp, Apr 2, 1935, 362/198 ; 362/191- Winchester
2042174 Testing Apparatus, May 26, 1936, 463/52 ; 124/32; 351/201; 434/22; 89/41.19 - rifle pointing hand eye coordination timing using flashlight
2077383 Testing Apparatus, Winchester, https://patents.google.com/patent/US2077383April 20, 1937, 463/52 ; 434/22; 463/54
D67934 ,Aug 4, 1925, D26/49 - unlike D55571 this flashlight has a reflector that's larger in diameter than the main body.

626627 Bicycle-Lamp, ELLSWORTH D. MIDDLEKAUFF (William E. Hall), Jun 6 1899, 362/157 -

In the Murdoch Mysteries TV series S8E18 "Artful Detective"the bicycle head lamp is no longer the bulky electric but a black pasteboard cylindrical hand held type held by a bracket. If set in the 190x time frame that may be too soon for that design of flashlight.

554379 Electric Light Cabinet, E.L. Slocum, Feb 11, 1896, 362/198 - two wet batteries in box + cord to wand with lamp at end. 362/198 oldest patent in class.
642648 Electric Lighting Device, G.W. Van Duzer, Feb 6, 1900, 362/198 340/321 Metal box with 2 wet cells + cord with lamp w/reflector and spike.
682742 Portable Electric Lamp, HERBERT E. PLASS, Sep 17 1901,362/200 -
704446 Watch Dial Illuminator, FREDERICK M. DURKEE (U. Blatter), Jul 8, 1902, - uses same push button as the Eveready Shadow Projection Clock.
712112 Illuminated Watch Box, Carolus Arnold (Germany), Oct 28 1902, 362/155 ; 132/288; 362/109; 368/276-
721205 Eectric Time Switch, ALBERT W. LAUTER, Feb 24, 1903, 368/256 ; 200/35R; 362/253- like conrads but adds a pushbutton switch on a cord (i.e. beadside)
740433 Night Light, FRIEDRICH HIRTH, Oct 6 1903, 368/227 ; 353/40; 362/253; 40/560 -
760657 Portable Electric Hand Lamp, G Stein, May 24 1904, 362/204 ; 200/60 - "F" cell? Cylindrical, wall eye lens switch to the rear
786227 Sight-Illuminator, Logan, Mar 28 1905, 362/110 ; 362/396- for rifle
835762 Watch Stand, W. Koller (Switzerland), Nov 13 1906, - has battery, lamp and switch for night viewing
849198 Firearm, W.H. Boust, Apr 2 1907, 362/114 ; 353/43; 362/187; 362/321 - projects light beam that's variable in size
864957 Portable Search Light, J. Dickens (Standard Sheet Metal Co), Sep 3, 1907, 362/204 ; 200/60 - cylindrical
902216 Electric Lamp for Helmets and Similar Head Coverings, J.H. Drager, Oct 27 1908 -
917021 Illuminator, Henry L. DeZeng (De Zeng-Standard Co), Apr 6, 1909, 313/48 ; 313/110; 313/111; 313/113; 313/312; 313/315; 362/577 - glass rod fiber optic for use by surgeons uses 222 lamp?
918181 Electric Flash -Light Attachment, F. Meadows (H.B. Cornwell), Apr 13 1909, 362/295 ; 200/52R; 340/321; 362/103; 362/308; 600/249; D26/39- small lens, reflector lamp assembly clips on finger
936499 Aseptic Deflector Lamp, G.C. Werner, Oct 12, 1909, 600/249 362/198 315/291 - long skinny battery + cord and lamp.
944449 Flash-Light Attachment for Guns, W.L. Long, Dec 28, 1909, - 3 AA fits over revolver
983742 ELECTBIC HAND-LAMP, J. W. MEAD, Feb 7 1911, 362/192 ; 290/1E; 310/69; 362/112; 600/249 - generator type, pistol grip
1007235 Signaling Device, FRANCIS J. POINAN, Oct 31, 1911, 362/20 ; 362/228 - Dry Cell and lamp retrofitted into kerosene lantern
1007284 Illuminating Device, A.J. Horner, Oct 31 1911 - for pocket watches
1009475 Flash Lamp, OTTO B. TUCKER, Jun 9 1914 (Nov 21 1911?) , 606/122- for horseless carriage driving
1013542 Lamp, Edwin H. Ford,  Jan 2, 1912, 362/418 ; 359/802 - stick with mirror and lamp on end for reading underground water meters
1017991 Sight Illuminating Attachment for Guns, ANDREW N. OLSON, Feb 20 1912, 42/132 - metal cap over lamp has eyelet and tube so only front sight gets light

1030516 Illuminated vest or coat buttons, Everette S Lagarde, Peter A Angenend Jr, 1912-06-25, -

1032199 Umbrella Attachment, T.C. Frederiksen, Jul 9, 1912, 135/15.1 ; 24/12; 24/13; 24/363; 24/368 - allows carrying on clothing, not flashlight

1035426 Device for Examining the interior of pipes, William W. Dixon (Union Clay Prod),  Aug 13, 1912, 362/253 ; 359/367 - periscope & flashlight
The top (left in photo) part with the lamp and a mirror can be pulled completly out of the battery holder part.  The metal case is one electrical terminal and there's a slip ring in the top and a contact in the battery holder part, so you can rotate the top mirror to any angle desired.  No switch.  If the top part is pulled out or pushed in past the slip ring the light will turn off.  I did it by pushing in but a few minutes later when it was picked up the battery compartment was very hot and the cells dead.  Pushing in caused a short between the ring contact and the case even though the contact is wrapped in fiber insulation material.  Best to remove the batteries when not in use.
The top mirror was loose but a few drops of super glue fixed that.  The lamp is on in the photo.

1036000 Illuminating Device, WILLIAM H. PEASE, Aug 20 1912, 362/139 ; 359/872; 359/882; 600/248 - telescopic stick with mirror and lamp on end
1042623 Electric Flash Light, JOSEPH F. WAGNER (Arnold-Wagner Electric), Oct 29, 1912, 362/95 ; 362/394- near door keyway
1046225 Signaling Device, Schindler, Dec 3 1912, 340/321 ; 116/35R; 200/DIG.2; 340/815.69; 362/103; 84/477R - battery, lamp & doorbell mounted on glove
1046985 Electrical Device, JEREMIAH CREEDON, Dec 10 1912, 607/150 ; 2/159; 200/52R; 200/DIG.2; 361/232; 439/37; 601/21; 607/148-
1051370 Novelty Cane or Umbrella, Tobias Hertz (Brooklen Wireless Electrical Novelty), Jan 21 1913, 362/102 ; 135/910 -
1052075 Plummet Lamp, C.V. Martin, Feb 4 1913 362/311- illuminates plumb bob for surveying
1054872 Portable Generating Apparatus, Victor Sence, Mar 4, 1913, 362/192 ; 310/69 - squeeze generator, with battery & lamp
1055147 Firearm, VICTOR DE MARAIS (), Mar 4 1913, 362/114 ; 600/249- lamp and batteries under revolver barrel
1055746 Portable Electric Lighting System, HIRAM H. HIRSCH, Mar 11, 1913, 362/106 - Miner's cap w/storage battery
1056393 Storage Battery Lamp, CHARLES B. BARTLEY, Mar 18 1913, 362/184 ; 307/157; 340/321; 362/191; 362/197; 429/98 - two lamps, uses 1/4" phone plug as switch for each.
1056683 electric Safety Lantern, HARRY C. HUBBELL, Mar 18, 1913, 362/21 -
1057381 Music Lyre, JOEL B. HAWLEY, Mar 25, 1913, 362/98 - lighted musid stand


1057529 Portable Electric Light, William M. Cloninger, Apr 1 1913, 362/105 ; 54/1 - light for horse riding -
1057820 Luminous Electric Mirror, Hugo Gernsback, Apr 1 1913, 362/135 ; 132/288; 433/35 - handheld mirror with switch and PFL battery in handle, lamp at top

1065147 Miner's Lamp, Steve Koroly, Jun 17, 1913, 362/106 - I've erased the numbered callouts from the patent drawing above.  Who did the drawing, Steve or. . ?
1066386 Ophthalmoscope, De Zeng, Jul 1 1913, 351/205 ; 362/206; 600/249 - eye exam
1066540 Combined Club and Flash Light, G.A. Smithwick, Jul 8 1913, 362/102 ; 135/66; 135/910; 463/47.4 -
1067158 Spirit Level, CHEISTOPHEB M. WALTON, Jul 8, 1913, 33/348.2 - slot for pocket flash light to shine on level bubbles
1067646 Search Light for Unbrella Handles, Downey, Jul 15 1913, 362/157 ; 135/910; 56/307 - long cylindrical battery
1068836 Portable Electric Safety Lamp, Banick, Jul 29 1913, 362/21 ; 362/197 - storage battery
1070348 Light Attachment for Firearms, CLIFFORD A. LEWIS (Oregon Electric Gun Co), Aug 12, 1913, 362/114 - light under revolver barrel, cylindrical batt in grip
1070522 Electric Safety Lamp, JOHN GEORGE PATTERSON, Aug 19, 1913, 73/31.05 ; 73/23.2 - retrofitting a storage battery & lamp into a kerosene lamp
1070883 Target Light for Guns, Forrester, Aug 19 1913, 362/114 - lamp under revolver barrel, pocket light battery in grip
1074354 Flash-Light, ARTHUR J. DUPONT, Sep 30, 1913, 340/321 ; 116/35R; 362/197 - curved pocket light type case mounts to back of hand w/ two switch selectable lamps.
1074716 Lighting Apparatus, ELLSWOBTH A. Hawthorne, Oct 7, 1913, 362/197 ; 307/157 - stoarge battery, but similar to a No. 6 Dry Cell light
1075177 Illuminable Advertizing Device, J. WEBER, Oct 7, 1913, 40/472 ; 200/46 - a motorozed device presents a scroll in a lighted window.
1075827 see Conrad Hubert below.
1075973 Portable Electric Lighting Apparatus, Hirsch, Oct 14 1913, 362/53 ; 439/37 - miner's cap light
1076495 Electric Safety Lamp, Gottschalk (Chemische Fabrik), Oct 21 1913, 362/21 - miner's fixed or portable (not carried) heavy glass surrounding lamp
1078167 Projecting Lamp, JAMES H. ROBNETT, Nov 11 1913, 600/241 - a dentist's mirror and tongue depressor added to a pocket light
1078445 Portable Electric Reading Lamp, SAMUEL JOSEPH LEVI, Nov 11, 1913, 362/396 - battery, cord, spring clip with lamp. clip to furniture or clothing
1079891 Artificial Minnow, JESSE C. SIMMS, Nov 25 1913, 43/17.6 ; 43/42.46; 43/42.49 - fishing lure
1080795 Searchlight Attachment for Shotguns and the like,  EUGENE S. WARD, Dec 9 1913, 362/187 ; 362/110; 362/191 -  shroud in front of lens to control beam
1082887 Contact Device for Hand Lamps, Lorenz Maisel (Northern Chemical Eng Labs), Dec 30 1913, 362/204 ; 200/60; 362/187; 362/205 - adjustable focus
1083073 Revolver Attachment, M. Ferguson, Dec 30 1913, 362/114 - small under barrel lamp, Pocket Flash Light battery in grip
1084603 Lighting Attachment for Alarm Clocks, A. T. Britt, Jan 20, 1914, - turns on light when alarm goes off
1088502 Search-Light for Pistols, JOSEPH B. WILLIAMS, Feb 24 1914, 362/114 ; 222/113- a small cylindrical FL below revolver barrel acitvated by second trigger
1090980 Lighting Apparatus, E.A. Hawthorne, Mar 24, 1914, 362/190 ; 40/204 - battery powered license plate light & rear light - D43696
1090981 Lamp Mounting, E.A. Hawthorne, Mar 24, 1914, 362/37 - bicycle
1090982 Lamp Mounting, E.A. Hawthorne, Mar 24, 1914, 248/286.1 ; 362/396; 362/426 - bicycle
1090983 Electric Lamp, E.A. Hawthorne, Mar 24, 1914, 362/197 ; 362/208 -vertical tube with reflector a little down from top.  switch in top.
1094855 Reed-Hook, WINEIELD L. KEITH, Apr 28 1914, 362/119 ; 28/204- used in weaving
1097910 Electric Flash-Light, William Broad, May 26, 1914, 362/194 ; 429/97 - provision to replace battery chemicals & zinc
1101429 Automatic Annunciator, Genter, Jun 23 1914, 368/223 ; 362/268; 362/293; 362/308; 362/812; 368/238; 40/473- projects time and ads
1107040 Revolver Flash-Light, J.B. Conde, Aug 11 1914, - 362/110 - light attachment for revolver

D46279 Electric Hand Lamp, John H. Goehst (many paents assigned to Federal something), Aug 18, 1914, D26/50 - The wire at left did not seem to fit the top of a No. 6 Dry Cell and so was replaced with a phospor bronzestrap spring to connect the negative battery terminal to the back of the reflector.  That wire spring might be correct for a dry cell that has large posts with tapped holes ?  The lamp uses white plaster of paris to hold the bulb and is stamped: pat Nov. 8, 1904  See above 774404 Base for Incandescent Lamps, Alfred Swan (GE), Nov 8 1904 - The lamp works fine on a 1.5 Volt dry cell (actually my No. 6 Battery Adapter). The bail is missing and can probably be replaced with one from a paint can. Reflector is silvered so a light application of silver polish made it shiny.  Also has a plano convex lens. This has a resemblance to the Delta D46427 and the Wheeling Stamping Co 1152082 Although the head has an appearance similar to a casting, it's plated sheet metal with rust.

The metal strap on the No. 6 Dry Cell (adapter) is phosphor bronze and is very springy. The bail fits very well and came from a 1 gallon paint can.

1101327 Attachment for Oilers, E.H. Philbrick, Jun 23 1914, 362/96 ; 222/113; 362/191 - light for oil can
11018350 Electric Conductor, F. Farber, Aug 25, 1914, 362/198 362/21 - metal box + cord lamp w/reflector + spike for use in mines. uses low melting metal for wire so that a short will not cause a fire.
1106828 Portable Electric Lamp, William J. Monaghan (Waterbury Mfg Co),  Aug 11 1914, 362/203 ; 200/60; 340/321 - penlite
1079088 Flash-Light, F. Wysocki, Nov 18 1913, - cane or unbrella handle
1095686 Electric Lamp for Small Firearms, A.L. Webb, May 5 1914, - small lamp & lens to illuminate target
1120769 Flashlight Attachment for Firearms, OSCAR P. VILLAREJO, Dec 15 1914, 362/114 - lamp & reflector
1122425 Portable Electric Flash Light, C.J. Sagebrecht (Interstate Novelty Co), Dec 29 1914, 362/204 ; 200/551; 200/60; 362/189-short prevention
1122446 Portable Electric Light, C Wachtel (Interstate Novelty Co),  Dec 29 1914, 362/204 ; 200/60- short prevention
1128739 Attachment for Firearms, A. Weigel, Feb 16 1915, 356/247 ; 42/146 - projects an aiming point
1132091 Lantern,G.W. & E.A.  Hellstrand, Mar 16 1915, 362/186 - looks like kerosene lantern
1132173 Flash-Light, ARTHUR J. DUPONT, Mar 16, 1915, 362/184 ; 340/321; 362/186; 362/191; 362/197 - uses tabbed PFL battery
    References:
    1074354 Flash-Light, ARTHUR J. DUPONT, Sep 30, 1913, 340/321 ; 116/35R; 362/197 -
    a Pocket FL for mounting on back of hand
    includes method of making special tab type battery

1138542 Fishing Device, Conekin, May 4 1915, 43/8 ; 362/477- net with built-in lights
1143632 Illuminated Clock, Herbert Kienzle, Jun 22, 1915, 368/67 ; 968/213-

Hipco Dual Lens Flashlight 1143966 Flash Light, T. HIPWELL, Jun 22, 1915, 362/204 ; 340/321 - uses two lens head - this is a very interesting idea.  The beam has a sharp edge between the illuminated area and the dark area unlike ordinary flashlights that have the main beam surrounded by light direct from the lamp. None of the threaded parts of the head are for adjusting the beam, they all are tightened until something is seated.  Maybe by lamp selection or by using shims an adjustment could be made to make the beam even brighter? 1149913 Flash Light, H.H. & H.T. Hipwell, Aug 10 1915, 362/205 ; 362/208 - ribbed tube part of switch design which uses center contact of lamp as one side of the switch.  Isolating lamp mechanically from battery.  No way to lock light on or off in patent.  Actual flahslight has dimple to hold switch off, but nothing to hold it on.
1701626 Method of and means for locating a light at focal point of lens, Daniel J Mccarthy, Chicago Railway Signal & Supply, 1929-02-12, - Optical system very similar to Hipco flashlight.

1144210 Tool, Robert Kincaid, Jun 22 1915, 362/120 ; 600/249; D8/87 - Flash-Light that has attachment points for a variety of tools, car breakdown
1147501 Automatic Annunciator, JACOB H. GENTER, Jul 20, 1915, 368/234 ; 362/268 - projects time and ads
1488085 Electric Spectacle, Goggle or Mask Light, L. Zachara, Mar 25 1924, 362/105 ; 2/435; 2/9; 351/158 - using a snap for electrical connection, like today's 9 volt battery ?was this the first use of a snap for electrical connection?
1148839 Flash Light, A.J. Harnack, Aug 3 1915,200/60 ; 362/205; 362/310 - short prevention
1149913 Flash Light, H.H. & H.T. Hipwell, Aug 10 1915, 362/205 ; 362/208 - cylindrical
1155100 Portable Electric Flash Light, C.J. Sagebrecht (Interstate Novelty Co), Sep 28, 1915, 362/204 ; 200/60 - cylindrical
1155249 Flash Light, Harry M. Koretzky, Sep 28, 1915, 362/195 ; 200/60 - inside a pocket watch case
1156229 Lantern, E. R. HIBBARD, Oct 12, 1915, 362/186 - looks like RR type that has easily changed color filter
1581452 Watch Stand, Edward H. Krehbiel, Apr 20, 1926, 362/134- matching watch pyramid and flash light pyramid
1168724 Electric Lantern, WILLIAM PRESTON HARTFORD, Jan 18, 1916, 362/186 200/60- uses PFL battery laying in bottom
1168351 Battery Lamp, F.W. Wakefield (F.W. Wakefield Brass Co), Jan 18 1916, 362/190 ; 362/197; 429/97; D26/50 -  square section angle head
1173269 (Car Turn) Signaling Device, Heidemann, Feb 29 1916, 340/321 ; 116/35R; 200/DIG.2; 362/103 - battery on left forearm, lamp on back of left hand. button adajacent to left thumb
1174571 Battery and Switch Casing, Ellsworth A. Hawthorne (Hawthorne Mfg Co), Mar 7, 1916, 220/4.02 ; 180/68.5; 200/43.15; 340/393.2; 340/396.1; 429/97 -
1183282 Weapon, Dinges, May 16 1916, 362/102 ; 463/47.4 - baton with light in end
1183310 Flashlight, A.S. Lyhne, 362/208 -
1183311 Non-Short-Circuiting Fiber Case for Flash-Lights, A.S. Lyhne,May 16 1916 -
1183816 Lamp, Ellsworth A. Hawthorne (Hawthorne Mfg Co), May 16, 1916, 362/475 ; 362/293; 362/309; 362/522 - bicycle head light converts to tail light
1184396 Electrically Illuminated Shoe, John E. Trimble,  May 23 1916, 362/363 ; 36/137; 362/103; 362/293; 362/295; 472/75 - batteries in heel lamp over laces
1186422 Electric Flash-light, JOHN C. MORGAN, Jun 6, 1916, 362/192 ; 310/69; 310/77 - generator
1187103 Casing for Portable Electric Flash Lights, C.J. Sagebrecht (Interstate Novelty Co), Jun 13 1916, - case moulded around conductor strip
1187555 Portable Electric Flash-Light, C.J. Sagebrecht (Interstate Novelty Co), Jun 20 1916, 362/205- cylindrical
1187565 Electric Switch for Portable Electrical Lights, B. Tauber (Interstate Novelty Co), Jun 20 1916, 200/60 ; 200/551; 362/205; 362/310- switch for cylindrical F.L.
1187672 Illuminating Eye Shield, Stiefvater, Jun 20 1916, 362/105 - head mounted light
1192514 Self Propelled Vehicle, Arthur H.C. Gibson, Jul 25 1916, 180/223 ; 180/13 - Eveready Autoped Scooter
1192515 Self Propelled Vehicle,Arthur H.C. Gibson, Jul 25 1916, 180/223 - Eveready Autoped Scooter
1193031 Portable Flash-Lamp, H. E. Leininger, Aug 1, 1916, 362/191 ; 362/198 - reading lamp hooks to book
1198660 Flash Light, A.C. Recker Waterbury Mfg Co), wp 19 1916, 362/205- spring in electrical circuit?
1132751 Portable Electric Light, B. Tauber (Interstate Electric Novelty Co), Mar 23, 1915, 200/60 ; 200/547; 362/205
1151114 Flash-Light, G. Matthies, Aug 24 1915, 362/157 ; 135/910; 340/321- umbrella or cane handle
1167266  Music-Lyre, F.A. Bua, Jan 4 1916, 359/801 ; 359/805; 362/99-

1194986 Illuminating Device, D. T. Finkbeiner, Aug 15, 1916, 362/87 ; 362/155; 362/197; 429/97; 451/451 - box holds cylindrical cells and lamp sits on top with shade
1198734 Electric Lantern, E. LUDESCHER, Sep 19 1916, 362/186 ; 340/321; 340/473 - cylindrical with four reflectors
1206095 Flash-Light Mace, A.J. Coy, Nov 28 1916, 362/102 ; 463/47.4- police club spring lamp isolation
1206275 Portable Electric Light, C, Watchel (Interstate Electric Novelty Co), Nov 28 1916, 200/60 ; 200/547; 362/205; 362/310-
1209932 Hand Generator, P. BRADLEY, Dec 26, 1916, 310/75B ; 188/184; 362/192; 74/131- generator
1210225 Flash-Light Device, F.C. Smalley, Dec 26 1916, 362/205- short prevention
1121329 Electric Light Attachment for Levels, P.E. Curtis, Dec 15, 1914, 33/348.2 ; 362/184 -
1205633 Portable Electric Light, C. Hubert, Nov 21 1916 362/186- looks like kerosene hurricane lamp

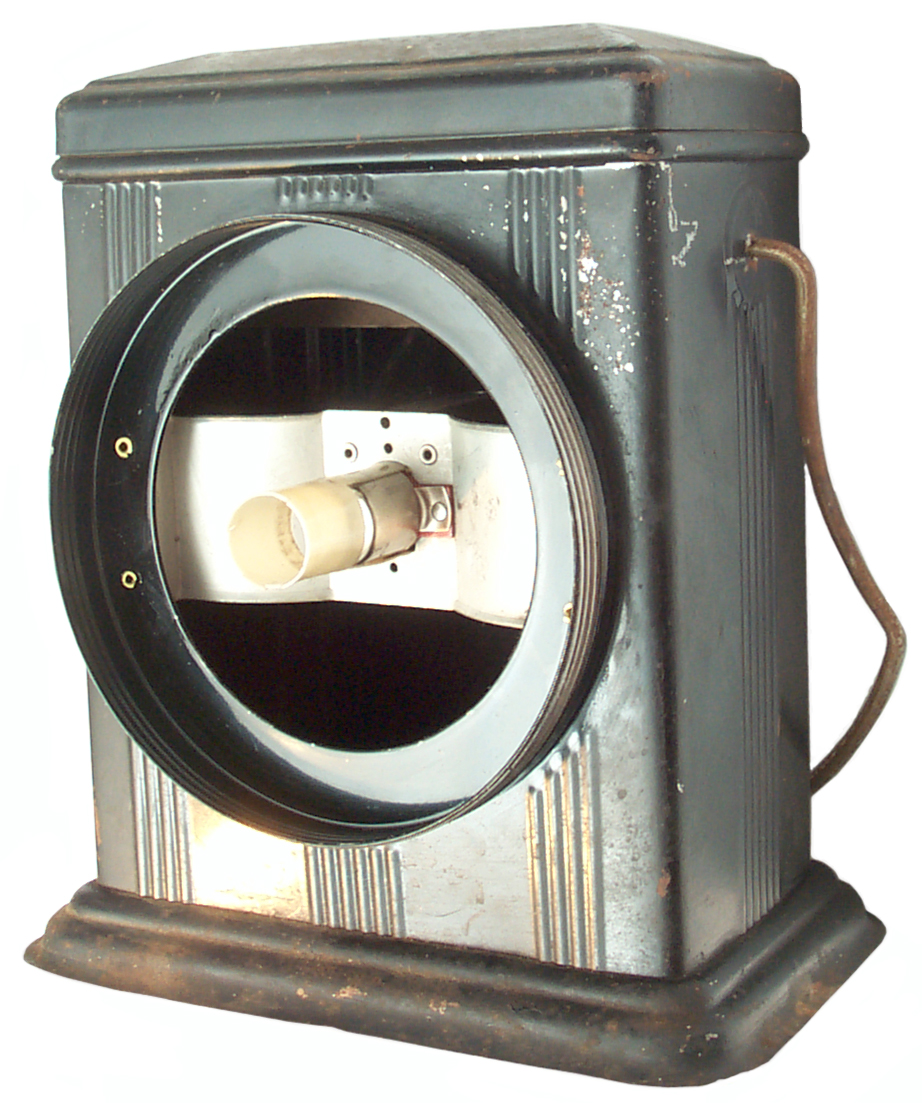

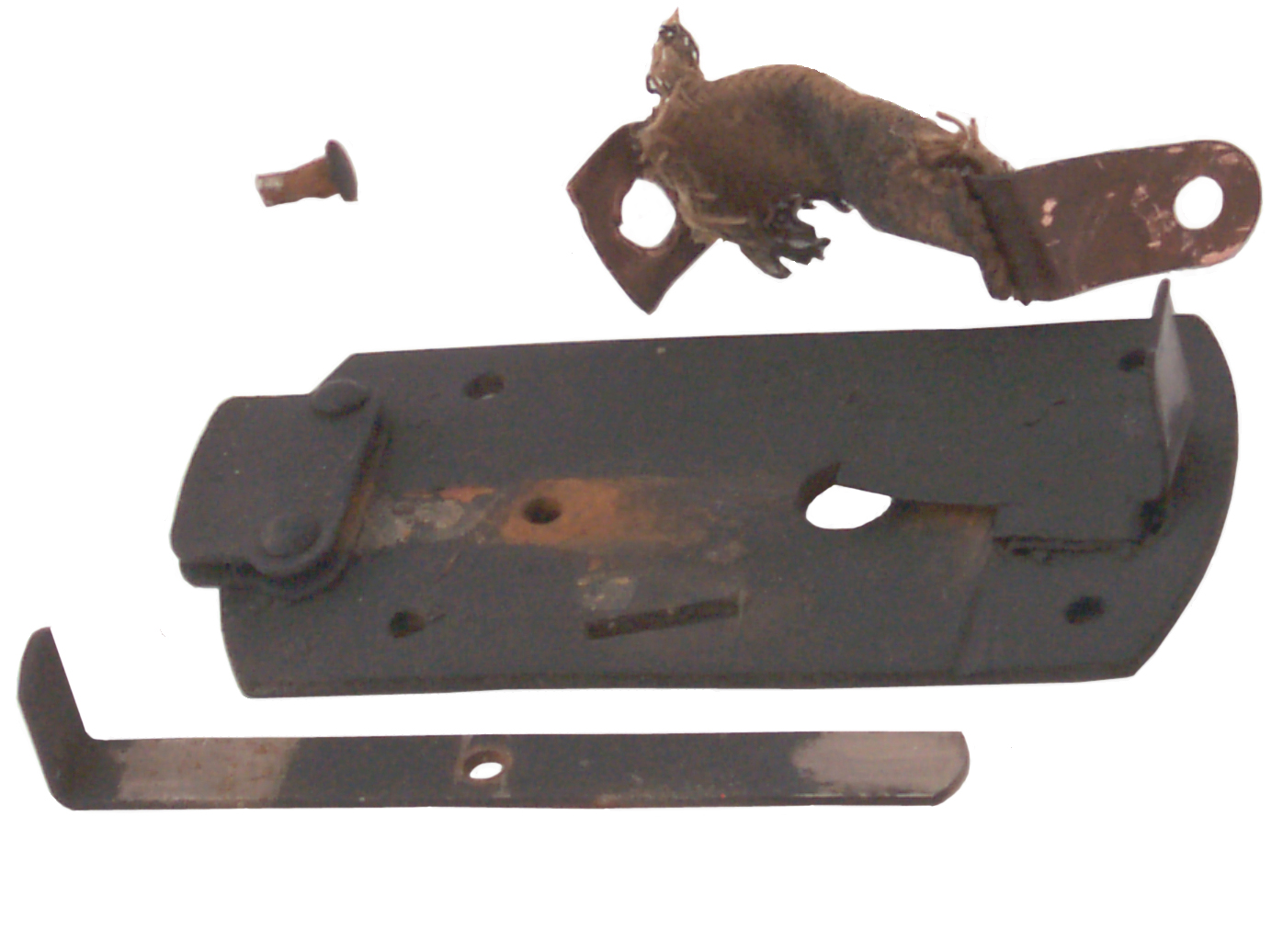

1207748 Electric Lantern, PAUL GRUNEK, Dec 12, 1916, 362/186 - two No. 6 Dry Cells area light
1211465 Flash Light, J.J. McGuckin, Jan 9 1917, 362/208- bumps or flats to pervent rolling
1213754 Flash Light Lamp, F. David (enterprise Electrical Novelty Co), Jan 23 1917, 362/206 ; 362/208 - about the switch, not the lamp
1214916 Lamp, Ellsworth A. Hawthorne (Hawthorne Mfg Co), Feb 6, 1917, 362/375 - tail & licence light battery powered
1215043 Search Light, M. Matz, Feb 6, 1917, 362/105 ; 429/99; 600/249- forehead mounted
1215171 Sight Light for Firearms, Clifford A. Lewis, Feb 6 1917, 356/247 ; 362/110; 362/114; 362/268; 42/114 -
1215757 Flash-Light, William L. White, Feb 13 1917, 362/191 200/60 200/85R 200/DIG.9 362/196 - turns itself off
1218162 Portable Light, E.H. Becker, Mar 6, 1917, 362/198 362/194 - conventional looking flashlight + cord to large box battery.   Has the look and feel of the Peak Beam.
1226607 Phonograph Lamp, Paul Gillen (Hudson Brass Works ), May 15, 1917, 362/87 ; 362/197 two cell light mounts inside box
1227012 Flash-Light or Electric Torch, M.H. Spielman, May 22 1917, - Cane with screw cap switch
1227013 Flash-Light or Electric Torch, M.H. Spielman,May 22 1917, - single AA screw cap is switch
1227893 Combination Dinner Pail, F.K. Delzell, May 29 1917,362/156 ; 340/321 -  contains thermos bottle and built-in light
1229358 Diagnostic Instrument, H. Weder, Jun 12 1917, 600/245 ; 362/200; 600/200; 600/241 - light for ears, throat
1223167 Battery Receptacle, Ellsworth A. Hawthorne (Hawthorne Mfg Co), Apr 17, 1917, 429/97 ; 174/50; 200/302.1 - battery box for light and horn on motorcycle
1232962 Watch, E.P. Olsen, Jly 10 1917 - adds light inside pocket watch
1238849 Lamp Socket, G.W. Wacker (National Carbon Co), Sep 4 1917, - a disk with hole
1243600 Illuminated Music-Lyre, GEOKGE A. HAMBRIGHT, Oct 16 1917, 362/99 -
1244819 Light Projector and Tongue Depressor, Young (Throt-A-Lite), Oct 30 1917, 600/241-
1248688 Portable Electric Lamp, E. Ludescher, Dec 4 1917, 362/187 ; 362/186- provides light to the sides as well as a focused beam
1250545 Flash Light, B. Benedict (Beacon Minature Co), Dec 18 1917, 362/204 ; 200/60; 362/208- sheet metal strap holds minaturre screw base lamp - short prevention
1253846 Combination Case for Flash-Lights, A.S. Lyhne, Jan 15 1916, 362/205- extension to make 2 or 3 cell F.L. by just adding section
1255256 Theatrical Runway, J.W. Witehead, Feb 5, 1918  362/198 52/28 108/23 182/179.1 362/97.1 -hidden lights + mirror
1258022 Illuminated Device, John A. Kray, Mar 5 1918, 116/173 ; 362/195; 362/806 - for flag
1259816 Vehicle Lamp, C.M. Wilson, Mar 19, 1918 362/198 200/60 - maybe No. 6 battery based.
1260067 Portable Flash Light, J. Samach (Enterprixe Electric Novelty Co), Mar 19 1918, 362/205 ; 362/202- ?
1261824 Portable Electric Light, HEURY LA VINE, Apr 9 1918, 362/103 ; 351/158; 362/241; 362/350 - look like eye glasses with reflectors above eye line
1263667 Flash-Light Attachment for Firearms, E.M. Henderson, Apr 23 1918, - pistol with provision to raise or lower beam to match trajectory
1271735 Illuminated Watch Holder, BENJAMIN F. LOCKWOOD, Jul 9 1918, 362/103 ; 116/DIG.36; 362/23; 368/10- on the back of a glove
1272808 Trench Flash-Light, J. Janovsky Interstate Electric Novelty Co), Jul 16 1918, 362/197- Angle Head casts light downward in trench to hide trench position from enemy
1274263 Combination Head-Lamp and Flash-Light, C.G. Hamilton, Jul 30 1918, 362/105 ; 362/202-  head is removable and straps and wires store in flash light body, one cell
1274713 Portable Lantern, Hoffmann (Germany), Aug 1918, 362/200 - bicycle or house type with complex snout to aim light in different directions
1286800 Battery Lighting Outfit, WALTER B. SCHULTE (Buress Battery Co), Dec 3 1918, - head lamp, three battery cylinder fits shirt pocket, reflector and lens
1287250 Flash-light, Dailey, Dec 10 1918, 362/190 ; 340/321; 362/106 - head is removable whil operating to me head mounted with band
1287186 Flash-Light, P.M. Beard, Dec 10 1918,362/184 ; 340/321; 362/205 - dual lamp - cylindrical
1287262 Portable Electric Light, J.T. Drufva (HENRY HYSTAN a Co), Dec 10 1918, 200/60 ; 362/205; 362/310-
1287919 Portable Electric Light, J.T. Drufva(H. Hyman & Co) ,Dec 17, 1918 - short prevention
1288456 Telephone Attachment, R.C. Groh, Dec 17, 1918, 362/88 ; 362/208; 379/442 - a pull chain lamp fixture to illuminate the dial on a candlestick phone
1289274 Portable Electric Light, H. Rothenberg (H. Hyman & Co), Dec 31 1918, 362/205- cylindrical unit battery has insulating case
1289459 Battery Hand Lamp,  CAUL HAMBTJECHEN (National Carbon Co), Dec 31, 1918, 362/204 ; 200/60-
1291710 Flash Lamp, John J. B. Arter, Jan 21, 1919, 362/184 - map can be inserted in transparent barrel extension between lamp and lens
1296404 Flash-Light, H.M. Koretzky, Mar 4 1919, 362/208 200/60 - 3 eyelet switch
1297657 Battery Hand Lamp, C.F. Burgess (Burgess Battery Co), 362/205 362/208 - wood reflector to allow attaching with brads
1298362 Furniture, M. Lewry, Mar 25 1919, 362/130 362/208 - battery in column with lamp sticking out
1299908 Battery Hand Lamp, C.F. Burgess (Burgess Battery Co), Apr 8 1919
1299909 Battery Hand Lamp, C.F. Burgess (Burgess Battery Co), Apr 8 1919, 362/204 - short prevention References:1084926
1299910 Battery Hand Lamp, C.F. Burgess (Burgess Battery Co), Apr 8 1919,
1299911 Battery Hand Lamp, C.F. Burgess (Burgess Battery Co), Apr 8 1919,
1316431 Portable Lighting Device, ROBERT DIXON, Sep 16, 1919, 362/194 191/12.2R -
1302715 signaling Instrument, L.B. Salt, May 6 1919, 178/115 340/321 362/157 362/208 - Morse Code key behind flash light
1304856 Combined Flash-Light and Mirror, C.W. Dalberg, May 27, 1919, 362/196 132/288 206/38 - very much like Conrad's but with mirror
1305844 Signaling Device, N.H. Tunks, Jun 3 1919 - in theatre an illuminated sign with variable number of "SEATS" to guide patrons
1308809 Lamp, B.J. Reese, July 8, 1919, 362/190 D26/39 248/688 362/191 362/198 - clay base to allow easy aiming
1315556 Portable Electric Light, W. D. Kahn (Import Sales Co), Sep 9, 1919, 362/197 362/208 - 3 cells rectangular box reflector on large face
1319997 Detachable Holder for Battery Lamps, Galloway, Oct 28 1919,362/107 ; 2/195.5; 24/12; 24/340; 24/532; 24/545; 24/563; 362/202; D26/38 - clips and wire holder
1320574 Flash Light Attachment for Traveling Bags, R.E. Robinson, Nov 4 1919, 362/156- carrying bag works like carrying a falsh light - cleaver
1330974 Combined Flash and Trouble Lamp,
1331959 Door Knob with Illuminating Means, R.A. Elfstrom, Feb 24 1929, 362/100 362/208  -
1331320 Miner's Lamp, LOUIS CHOMIEK, Feb 17, 1920, 362/184 ; 362/186 - storage battery (lamp looks like PFL
1332868 Flash-Light, G.  Frankel, Mar 2 1920 - cylindrical
1333427 Lamp and Reflector Holder for Flash-Lights, H.M. Koretzky (J. Satlow), 362/208 -
1340550 Battery Hand Lamp, T.J. Madigan, May 18 1920 - cylindrical w/lens
1334835 Flash-Light, Bryant, Mar 23 1920, 362/206 ; 200/60- rotating switch on cap
1337292 Light Attachment for Fishing-tackle, E.J. Timmons, -
1346138 Flash-Light Device, P.C. Smalley, Jly 18 1920 - cylindrical
1347423 Flash Light, J. Vince, Jul 20 1929, 362/203 362/208 43/17.5 - one piese double ended spring lifts reflector-lamp above battery and pushes bottom of battery away from cap, so unscrewing cap opens circuit
1349360 Keyhole-Illuminating Device, Geoge E. Bates, Aug 10, 1920 362/100 ; 70/DIG.59 - mounts on door
1353348  Portable Hand Lamp, H.M. Koretzky (J. Satlow), Sep 21, 1920, 362/208 -
1358639 Electric Torch, A.A. King, Nov 1920, 200/60 ; 200/277; 200/DIG.29; 340/321 - reflector, lens
1360477 Portable Electric Light, Charles Wachtel (Interstate Novelty Co), Nov 30 1920, 362/205 ; 200/60 -
1360575 Seat Indicator Attachment for Flashlights, PERES A. PINTO, Nov 30 1920, 40/555 ; 340/321; 3621360477 Portable Electric Light, Charles Wachtel (Interstate Novelty Co), Nov 30 1920, 362/205 ; 200/60 - projects a spot of light to show where the seat is
1362177 Search or Pockel Light Support, PETRIE, Dec 14 1920, 248/688 ; 362/382- bi-pod for cylindrical flash light allow it to be aimed up when sitting on the ground or a table
1362324 Illuminated Signal Indicator, B.N. Carl, Dec 14, 1920, 116/35R 340/321 362/109 362/208 362/310 362/806 428/31 - automobile hand signal looks like glove on end of flashlight
1362432 Flashlight Attachment for Firearms, CORA M. MASTERS, Dec 14 1920, 248/229.1 -
1364393 Battery Hand Lamp, T.J. Madigan (J.O. Schwank), Jan 4 1921, 362/208 362/206, - cylindrical with handle
1365885 Portable Electric Light, Bernard Benedict (not assigned), Jan 18, 1921, 362/204 - short protection
1369644 Safety Lamp, F.T. Forster, Feb 22, 1921, 362/198 362/21 439/240 - for use in mines.  Rectangular metal box + cord and lamp (Festoon base) for cap mounting.
1373611 Portable Electric Light, D.L. Graff, Apr 5, 1921, 362/197 ; 429/99- looks like roll film camera
1378839 Signal for Dining Tables, N.B. Cregier, May 24 1921, 362/190 ; 131/231; 144/230; 340/321; 446/477; 446/485- in restaurant to signal waiter
1380034 Dry Cell, William Balderston (FRench Battery Co), May 31, 1921 429/134 ; 362/205; 429/171-
1380091 Electric Lantern, D. BRARKTERD, May 31, 1921, 362/191 ; 362/197- darkroom use ?No. 6?
1382440 Yeilding Terminal for Dry Battery Cells, A.C. Becker, Jun 21, 1921, 362/202 362/208 429/99  -
1386474 Flashlight, J. Vince, Aug 2 1921, 362/203 324/506 362/208 - long tail spring holds reflector-lamp away from top of battery
1397610 Combined Cigarette or like case and Electric Torch, SAMUEL A. APPELL, Nov 22 1921, 362/156-
1399598 Flashlight Generator, Anderson, Dec 6 1921, 362/192 ; 310/69 -
1404258 Battery Hand Lamp, Alschuler, Jan 24 1922, 362/206 -
1404259 Battery Hand Lamp, Alschuler, Jan 24 1922, 362/206 -
1408528 Focusing Device for Electric Lamps, A.S. Lyhne, Mar 7 1922 - cylindrical, expensive mechanism
1267262 Battery, WILLIAM BALDERSTON (French Battery & Carbon Co), Jan 24, 1922, - railroad type
1404077 Flash Light, J Vince, Jan 17 1922 - a single wire for the spring, switch and path to bulb, cylindrical
1404362 Electric Flash Lamp,  M. Goodfellow (Eveready UK), Jan 24 1922, 362/196  -  outer casing is a sleeve open at both ends when inner casing is extended lamp is on
1408527 Flash Light, S. Lyhne, Mar 7, 1922, 362/190 ; 362/197; D26/37 - angle head with lens, doesn't roll, lay down an aim, clip on clothing, stand on end,
1411430 Incandescent Lamp-Tester, Joust Graves (French Battery & Carbon Co), Apr 4, 1922, 324/414 - for checking flashlight bubs
1411613 Flash Light, F Evans (L.V. Aranson), Apr 4 1922, 362/192 ; 310/69 - generator
1411614 Flash Light, F Evans (L.V. Aranson), Apr 4 1922, 362/192 ; 310/69 - generator
1411615 Flash Light, F Evans (L.V. Aranson), Apr 4 1922, 362/192 ; 310/73; 310/75B; 74/130 - Generator powered Pocket Flash Light
1420167 Electric Pocket Lamp, Jun 20, 1922, 362/196- two batteries side by side with a long lamp sitting between them. lamp wired into product for lower cost
1421093 Flash Light, Leslie C. Matson, Jun 27, 1922, 362/184 - lamp at each end
1421399 Battery Hand Lamp, C.F. Burgess (Burgess Battery Co), Jly 4 1922 - cylindrical with candle mode
1422331 Adapter, F.T. Baird, Jul 11 1922, 362/208 362/186 - RR battery connection
1427138 Umbrella Handle Lighting Device, Walicki, Aug 29 1922, 362/157 ; 135/910; 362/102 - "T" handle, switch has point that grounds battery
1431822 Trouble Light for Automobiles, L. Lamb, Oct 10 1922, 362/208 191/12.2R  -
1432254 Aim Indicating Apparatus for Firearms, Paterson, Oct 17 1922, 362/112 ; 42/132 - rifle shape projects short duration flash of light
1432348 Electric Lantern, A.S. Lyhne, Oct 17 1922, 362/197 362/208 429/97 - two D or two F dry cells rectangluar reflectro on large face
1434780
1436798  Flashlight, Fred Evans (Louis Aronson ?Art Metal) Nov 28, 1922, 310/152 ; 362/192 - generator
1438531 Flash-Light, C.C. Keller, Dec 12 1922, 362/196 362/205 425/441 - case design
1441822 Flash Light, E.R. Barany (Franco Electric Corp), Jan 9 1923, 362/208 362/458 - multiple reflection
1441883 Flash Light, J.T. Roffy, Jan 9, 1923, 362/205 362/208  - dropping does not break lamp
1443089 Portable Lamp, W.D. Kahn (Diamond Electric Spec), Nov 7 1922 - cylindrical
1445193 Battery Hand Lamp, ERNEST ALSCHULER, Feb 13 1923, 362/204 - Short prevention
144656 Flash Light Attachment for Guns, J.P. Hise, Jun 29 1915, 362/110- on top of Henry (?) rifle
1447405 Lens Ring, E.R. Barany,(Franco Electric Corp), Mar 6 1923,  362/208 - with flats
1448352 Flash Light, Barany (Franco Corp), Mar 13 1923, 362/184 ; 340/321
1448353 Flash Light, Barany (Franco Corp), Mar 13 1923, 362/184 ; 340/321- three lamps and reflectors behind one glass w/three switches
1448354 Flash Light, Barany (Franco Corp), Mar 13 1923
1451618 Flash Light, HABRY M. KOKETZKY, Apr 10, 1923, 362/203 ; 200/60 -
1455938 Signal Lantern, Rode et al., May 22 1923,  362/184 - kerosene shape with five lamps of  different colors on wheel for easy change
1460149 Flash Light , E.R. Barany,(Franco Electric Corp), Jun 26 1923,
1460150 Flash Light Battery Thrust Cap, E.R. Barany,(Franco Electric Corp), Jun 26 1923, 362/208  - flat sheet metal spring
1461600 Combined Light and Firearm, Sylvester P. Cottrell, Jul 10 1923, 42/146 ; 362/114 - see followup patent 1557805 - not a practical gun
1466350 Flash Light, E.R. Barany,(Franco Electric Corp), Aug 28 1923, 362/184 ; 340/321 - looks like two flashlights joined at the cap
1466779 Combined Cigar Lighter and Flashlight, Arthur E. Anakin (Anakin Protection Mfg Co), Sep 4 1923, 362/109 ; 431/128; 431/202; 431/253
1462207 Battery Lamp, E. J. Moeachron (French Battery & Carbon Co), Jul 17, 1923, 362/202 ; 340/321-
1471682 Portable Electric Lantern, Carter B. Burnet (W.W. Slaymaker), 362/192 - Jack-O-Lite "Crank" pg 7 FCN#39
1472335 Magneto Flash Light, A. Luzy, Oct 30 1923, 362/192 ; 185/29; 185/40B -
1478282 Flashlight, Robert Hunter, Dec 18 1923, 362/187 ; 362/191-  adjustable lens to lamp distance
1479592 Flash Light, Fred Evans (L.V. Arnson),  Jan 1 1924, - disk hangs from ceiling and a pull cord hangs below
1481224 Hooded Examining Lamp,  Pimienta, Jan 15 1924,   362/105 ; 359/481; 362/184 - like eyeglasses
1487502 Magneto Flash Lamp, J.J. Wood (GE), Mar 18 1924, 362/192 - built-in generator
1490690 Flash Light Bulb Support, E.R. Barany,(Franco Electric Corp),Apr 15 1924, 362/208 362/202  - flat sheet metal spring
1504003 Fan Attachment for Flashlights, A.F. Trumbull, Aug 5 1924, 416/5 362/208 - head remlaces reflector with combined fan & reflector-lamp.
1506471 Electric-Battery Lamp or Lantern, GEORGE ARTHUR HENRY WOOTTON, Aug 26, 1924, 362/187 -
1507768 Portable Electric Light, B. Collins, Sep 9 1924, 362/192 ; 200/60; 310/156.42; 310/268- electric generator inside
D65913 Flash Light, William F. Hendry (Manhattan Electrical Supply Co), Nov 4, 1924, D26/49 - multi "D" cell?
1517180 Helmet Emergency Light, Timlin, Nov 1924, 362/106 - fireman's helmet light
1520025 Switch for Portable Electric Lamps, H.H. Hipwell, Dec 23, 1924, 200/60 - prevents accidental sliding of switch thus preventing wasting the battery
1520297, Flash Light, HOKATIO MCKENNA, Dec 23, 1924, 362/205 - focusing screw based lamp
1512467 Flash Light, G I. Johnson, Oct 21 1924, 362/192 ; 310/69 - lever operated generator
151248 Flash Light, G I. Johnson, Oct 21 1924, 362/192 ; 310/50 -
1515135 Illuminated Globe, A. S. ALEXANDER, Nov 11 1924, 434/143 ; 362/269; 368/24; 434/145; D26/94 -
1516133 Ophthalmoscope Connection for Dry Battery, W.N. Allyn, Nov 18, 1924, 403/348 285/376 351/221 362/198 362/804 429/98 439/314 -
1523158 Illuminating Timepiece, J.M. Angeletti, - adds light to pocket watch
1524205 Electric Lamp, J. Papke, Jan 27, 1924, 362/208 340/321 362/191  - adjustable glass cap allows beam or area illumination
1528709 Testing-unit attachment for flash lights, Curtis R Trimble, 1925-03-03, - replace tail cap
1532493 Signal Light, W.V. Ivie, Jly 27 1921 - strapped to back of hand
1544236 Portable Fladhlight, W.D. Kahn (Diamond Electrical Specialties Corp), Jun 30 1925, 362/188 362/196 362/197 362/207 - 3 cells in rectangualr box, reflector on large face
1551742 Flash Light Attachment for Guns and Object Indicators, J.P. Hise (Hise Gun Flash Light Co), Sep 1, 1925, 362/187 ; 362/110; 362/191; 43/17.5
1530862 Electric Illuminating Device, T.J. Thompson, March 24, 1925, 362/198 429/99 D28/45 D26/45 - looks like grease gun with cylindrical batteries in handle and lamp at end of extension rod.
1548225 Flash Light, L.M. Topoosian, Agu 4, 1925, 362/198 D26/46 - Glass lens molded with threads so it screws directly onto body of flashlight.  Can also be used as electrical continuity tester (1995476).
1550453 Flash Light, C.L. Pickens, Aug 18, 1925, 362/187 362/198 - mounts to forearm with battery in pocket connected by cord.
1557805 Combined Light and Firearm, Sylvester P. Cottrell, Oct 20, 1925, 42/59 ; 362/114; 42/146 - also see 1461600
1560278 Portable Apparatus for Identifying Electrical Conductors, W.J. Mahn, Nov 3 1925, 324/66 ; 324/507; 324/542; 362/202; 379/21; 379/25
1565173 Illuminating means for Smokers, George Lyeso (Mike Herb),  Dec 8 1925, 362/109 ; 131/178 - pipe with mazda bulb wires to remote battery
1576983 Electric Flash Light, Joseph Masked, Mar 16, 1926, 362/192
1584454 Portable Electric Lamp, H.M. Koretzky, May 11, 1926, 362/208 -
1590623 Flashlight, William F. Hendry (National Carbon Co), Jun 29, 1926, 362/205 ; 200/60 - simple easy to construct switch
1590624 Flashlight, William F. Hendry (National Carbon Co), Jun 29, 1926, 362/204 ; 200/60
1591980 Flash Light, W W. JONES (National Carbon Co), Jul 13 1926, 362/202 ; 362/191; 362/207-
1595146 Flash Lamp, Ford, (French Battery Co), Aug 10 1926, 362/203 - spring holds lamp away from battery until cap is screwed tighter
1595896 Telephone Attachment, I. Levine, Aug 10, ,1926, 362/191 362/88 362/198 248/229.16 - dial light for candlestick phone.
1597823 Light Projecting Attachment for Shoes, Randolph, Aug 31 1926,362/103 ; 36/137; 472/75 -
1599095 Flash-Light Device, E.H. MCCABE (French Battery Co), Sep 7 1926, 362/207-
1599113 Flash Light, W.W. Cargill (French Battery Co), Sep 7 1926, - prevent cells from injuring lamp
1604568 Electric Torch, CHARLES EARNER, Oct 26, 1926, 362/186 - similar to the May Baby Torch

1599499 Battery Light, St. John (AT&T), Sep 14 1926, - angle head

1608195 Portable Electric Flash Lamp, E. R. Barany (French Battery Co), Nov 23 1926, 362/188 ; 362/205 - cam used to focus screw base lamp
1612538 Flashlights, James L. Shannon, Dec 28, 1926 - 362/202 - mechanical cushion between lamp and battery
1612579 Hand Lamp, William F. Hendry (National Carbon Co), Dec 28, 1926, 362/205 ; 200/60 - simple, easy to take apart, combined spring switch
1623807 Method of making flash-light casings, Erastus G Oakley, Bridgeport Brass Co, 1927-04-05, 72/82; 362/205; 72/349; 72/370.2 -
1624686 Flash Light, R.J. Smith, Apr 12 1927, 362/192 - Bat-Les Lite Corp - spring wound generator with speed/brightness control  screw base bulb
1638716 Spotlight, L.O. Surles, Aug 9 1927, 362/205 362/208  - focus screw based lamp
1644125 Flash Light Case, D.W.C. Harris (Burgess Battery Co), Oct 4 1927, 362/196 ; 362/205; 362/207
1644126 Flash Light Case, D.W.C. Harris (Burgess Battery Co), Oct 4 1927, 362/205 362/202 362/208  - splits on long axis
1649638 Flash-Light Attachment, W.P. Wood, Nov 15 1927, 362/208 D26/46  - substitute red lens as warning signal for stranded motorist
1649882 Electric Flash Light, B.B. Wolcott (F.L. Sessions), Nov 22 1927, 362/203 362/208  - simple switch mechanism
1653669 Combination Flashlight and Circuit Tester, B.M. Rzdyz ,Dec 27, 1927, 324/506 ; 362/253 - F cell flashlight with terminal
1655601 Spring Driven  Generator Electric Lamp, Fisher, Jan 10 1928, 362/192 -  generator
1656067 Flashlight, William F. Hendby (), Jan 10, 1928, 362/205 - switch mounts without rivits or screws 3 "D" goes with D65913?
1658189 Flashlight Standard - support for cylindrical FL
1666420 Flash Light, H.M. Koretzky (Bright Star), Apr 17  1928 - bail on switch to stand at angle, cylindrical
1664506 Game Device, E.W. Gates, Apr 3 1928 - volcano simulation
1668847 Means adapting electric flash lights for testing electric circuits, Leonard T Hook, 1928-05-08, - test leads plug into tail cap (or just swivel mounted).
1672797 Flash Light, Rene Amat & Willard Blake, Jun 5 1928, 362/192- generator
1676849 Flash Light, E.R. Barany (French Battery Co),  Jul 10 1928, 362/205 200/60 362/208 - simplified switch structure
1680800 Flash Light, Charles Osean (National Carbon Co_, Aug 14 1928, 362/188 ; 362/207-
1680484 Extra-Bulb Carrier, FRANK G. STIMSON (YALE ELECTRIC Corp), Aug 14 1928, 362/207 - spare in cap and isolated from shocks
1687483 Electric Lamp and Support Therefore, H.M. Koretzky, Oct 9 1928, 362/208 362/154 362/190 362/203 D26/46  - reflector can be attached to base so stands up with bare lamp
1692394 Flash Light, A. Sundh, Nov 20, 1928, 362/198 362/387 340/321 - cord is wound on spool and can be pulled out.
1692549 Electric Post Lamp, A. CAEVAJAL DE CASTRO, Nov 20, 1928, 362/124 ; 362/199; 362/282 - doll acts as light diffuser when flashlight is in candle position
1693348 Flash Light Safety Razor, Frank Pollifrone, Nov 27 1928, 362/115 ; 30/34.05; 30/531 - head just below blade
1702101 Flashlight Attachment for Firearms, P.P. Basterreix, Feb 12 1929, 362/396 248/229.24 362/110 362/208 - Flashlight under shotgun barrel
1717386 Flashlight Holder, Samual Kaplan, Jun 18 1929 ,362/108 - holds cylindrical flashlight on top of shoulder
1729660 Film Viewer, THOMAS FARMER, Oct 1, 1929, 352/129 ; 356/64; 359/801; 362/109; 362/9; 40/364 -  added mirror and lens
1731438 Flash Light, P.R. Pluckett (Bond Electric), Oct 15 1929 - cylindrical
1734230 Combined Searchlight and Fuse Tester, Nathaniel Roe, Nov 5, 1929, 324/507 ; 200/60; 362/205 - cap has socket for Edison base fuse
1738725 Flash Lamp, H.T. Hipwell, Dec 10, 1929, 362/191 ; D26/46 - improved battery cap
1740314 Combined Flash Light and Telescope, E.H. Pitney, Dec 17 1929 - remove batteries and look through
1752196 Radio Apparatus, Ronald E. Patrie, Mar 25 1930, 455/344 ; 313/312; 313/51; 362/205; 362/310; 455/347; 455/351
1755385 Combination Electric-Lighting Apparatus, E. BEIDLER, Apr 22, 1930, 362/183 ; 362/190- candlestick phone stand with candle that can be powered from internal battery or external power source
1755472 Electrical Flash Light, J.J. Darlington, Apr 22, 1930, 362/198 D26/44 - light head on telescoping wand.
1756785 Optical Measuring Device, GEORGE B. GALLASCH (B&L), Apr 29 1930, 356/632 ; 356/397; 356/448-
1758125 Emergency Light Connector, R.J. Owens, May 13 1930, 362/191 362/208 - when power fails, unscrew line powered light bulb and use flashlight adapter rear cap to secrw FL into socket
1759246 Hand Lamp, R.R. Smith (National Carbon Co), May 20, 1930, - explosive atmoshpere
1761725 Method of and Apparatus for Producing Standard Illumination, A.C. Hardy (GE ), Jun 3 1930,315/306 ; 356/232; 362/109; 362/5 - light meter works by using a bridge and push button to regulate the current through the lamp so a standard value.
1763815 Flash Light, Pajeau (Toy Tinkers Inc), Jun 17 1930, 362/197 ; D26/37 - has swivel joint between the two cells
1776960 Combined Ophthalmoscope and Slit Lamp, A.E. Turville, et al, Sep 30 1930 - eye testing
1770902 Flashlight, G. C. Fullmer (Bridgeport Metal Goods), Jul 22, 1930, - improved switch has wiping action
1771754 Adjustable Flash Light Support, Haunstein, Jul 29 1930, 248/175 ; 362/427; D26/140- wire frame
1773834 Figure Toy, A. J. Wilson,  Aug 1930, 446/351 ; 200/DIG.8; 362/124; 446/353; 446/485 - toy animal with eyes that light up when it mover or when the tail is moved
1775166 Flash Light, G. I. JOHNSON, Sep 9 1930, 362/192 - lever enerator
1778800 Flash Light, William F. Hendry (National Carbon Co), Oct 21, 1930, 362/187 - spring between reflector and lamp socket
1780779 Portable Electric Lamp, W. Burnett (Modern Coal Burner, Nov 4 1930 - mining, expolsive
D84456 Flash Light Head, Louis A. Bean, Jun 23, 1931, D26/128 - rectangular head oval glass opening
D82853 Flash Light Casing, James L. Shannon, Dec 16 1930, D26/49 - pattern on cylinder
1806318 Diagnostic Instrument, E.D. Tilver (AO), May 19 1931 - eye testing
1807501 Flash Light Holder, J.R. Alexander, May 26 1931, 248/229.14 ; 362/396 -  like for bicycle handlebar or cane, umbrella etc
1808640 Photographic flash light device, Jr Louis L Driggs, Henry B Faber, 1931-06-02, - uses a flare pistol to fire a flash cartridge and also push the shutter release cable. See: AN-M8
1816065 Flash Light, F. A. Weidman, Jul 28 1931, 362/184 ; 340/321 - cap has jeweled colored lens and lamp
1816779 Lighting Device for Key Rings, A.L. Jeanneret (Comptoir General de Vente...), Jul 28 1931, 70/456R ; 362/116; 368/278 -
1819954  Automatic Shooting Machine, FBIEDRICH GLAUS HEINHICH HANSEN, Aug 18, 1931,463/55 ; 362/112 - shooting gallery, photo electric scoring
1820082 Crooked Hole Indicator, L.A. McLain, Aug 25 1931 - for oil well bore holes
1820960 Flash Light, Champagne, Sep 1 1931, 362/197 -  45 degree joint allows cylindrical or any angle
1822619 Multicolor Flashlight, MorrisS Grossman, Sep 8 1931, 362/191 ; 362/197; 362/295 - like bicycle light with 2 color filters and rheostat to prolong lamp
1824449 Cane, Sjoberg, Sep 22 1931, 135/66 ; 135/910; 362/102- with light
1828543 Telephone Light, C.C. Phillips, Oct 20, 1931, 362/88 362/802 362/198 - dial light for candelstick
1828778 Electric Torch, JOHN LISTER (Eveready Co, UK),  Oct 27, 1931, 362/158 ; 362/187 -  Explosive Atmosphere
1832563 Electric Flash Light, G. Kuhn (Kuhn-White Labs), Nov 17 1931, 362/197 362/208 - 45 degree joint with rotation makes straight or angle head
D85670 Flash Light, M.A. Smith, Dec 1 1931, D26/49 - has the feel of a generator, but?
1838306 Flash Light, Herman G. Graubner (National Carbon Co), Dec 29, 1931, 362/191 ; 362/253 - police whistle in battery cap
1845764 Combined Snap and Testing Switch for Flash Lights, C.E. Pryor, Feb 16, 1932, 200/60 ; 324/507; 337/15; 362/206; 362/310 - tail cap terminal for testing fuses, etc

1853271 Flash Lamp Structure for Cameras, H.T. Hipwell, Apr 12, 1932, 396/184 -
1853272 Flash Lamp Structure for Cameras, H.T. Hipwell, Apr 12, 1932,396/184 ; 200/547 -

The attachement is a spring loaded air pump that's connected by hose to the bulb socket on a camera shutter.  Air type cable releases are/were common.  When the trigger on the air pump is pressed the camera makes an exposure and a switch complets the circuit firing the two flash bulbs.  I've hand sketched the two Edison base flash lamps and the reflectors that are behind them.

The label calls this a "Synchronous Speed Gun".    "Gun is short from Flash Gun.  A very popular press 4x5 camera was the "Speed Graphic".

756614 Camera, William F. Folmer (Folmer & Schwing), Apl 5 1904, 396/327 ; 396/15 - stereo camera
804802 Camera, William F. Folmer (Folmer & Schwing),  Nov 14, 1905, 396/437 -
843140 Camera, William F. Folmer (Folmer & Schwing), Feb 5, 1907, 396/479 ; 396/354 - Speed Graphic camera focal plane shutter
    It's still not clear why the "Speed" word., maybe cashing in on the then very popular Speed Grafic camera?
    961021 Flash Light attachment for Cameras is a prior art device.  When an air bulb is squeezed the camera shutter is activated and a pneumatic cylinder striks sparks into flash powder.
1849701 Speculum, W.N. Allyn, Mar 15 1932, - ear exam
1877077 Inspection Lamp, A. L. STEVENS (Vol-U-Meter Co), Sep 13 1932, 362/157 ; 362/158 - gooseneck between cylindrical battery compartment and head
1889978 Universal Lamp, J. A. DICKEY, Dec 6 1932, 362/296 ; 248/411; 307/157 - for doctors battery or line?
1891024 Flash Light, HARRY KORETZKY (Bright Star Battery Co), Dec 13, 1932, 362/188-
1849136 Lantern, R.A.Currie (R.E. Deitz Co), Mar 1932, 362/186 ; 362/180; 362/228 - looks like kerosene lamp, but uses Pocket Flash Light batteries
1875956 Mutiple Parallel Flash Light, Herman K. Thiel, Sep 6 1932, 362/184 ; 429/97 - two flash lights and extra battery tube
1877940 Eye Flickering means for Toys and the like, N. Morgenstern, Sep 20 1932, 446/392 ; 200/DIG.9; 362/124; 446/485 - mazda lamps and a spring-weight switch


1879622 Battery Hand Lamp, H.W. Jones (National Carbon Co), Sep 27 1932, 362/197 ; 285/280; 362/208- Angle head cylindrical with two 90 deg joints that can rotate
1879623 Battery Box, H.W. Jones (National Carbon Co), Sep 27 1932, - Battery contacts "i" or "U" for battery polarity control

H.W. Jones was granted two patents with sequential numbers on the same date, one of them for this flashlight.  A rotary electrical joint is needed to allow 360 degrees of rotation.










1896720 Otoscope , William Patterson (B&L), Feb 7, 1933, 600/200 - Ear, Nose & Throat eximanation
1900505 Flash Light, H. KORETZkY, Mar 7 1933, 200/60
1900931 Flash-Lamp, Harry T. & Harry H. Hipwell, Mar 14 1933, 362/191 - cap has hook that will hold cylinder almost square to a wall, not pointing down
1902590 Electric Flash Light, Shannon (French Battery Co [Owned Blake on issue date]), Mar 21 1933, 200/60 ; 362/204 - permanent open, closed or momentary switch
1906268 Flashlight, M. Horowitz (Bright Star), May 2 1933 - cylindrical
1925115 Battery Lamp, George J. Seiss, Sep 5 1933, 362/197 362/196 - two cell rectangular lantern reflector on large face, bail on top clip on back
1925374 Dry Cell Battery and Seal Therfore, C.P. Deibel, Sep 5, 1933, 429/167 ; 429/171; 429/178 - No. 6 Dry Cell (called a Six Inch cell) that has a longer shelf life
1925287 Cigar or Cigarette Lighter, Frank W. Snyder, Sep 5, 1933, 221/144 ; 221/256
"    RE19248 Headlight for Toy Locomotives, Earl D. Bolsselier (American Flyer), Jul 24, 1934, 446/439
1925393 Magnifying Device, Edwin L. Lehman, Sep 5, 1933, 359/818 ; 24/339
"    RE15317 Electric Lantern = 1277549,C.W. Conger, Sep 3, 1918, 362/186 - has the look and feel of a railroad lantern
1931712 Flash Light Adapter for Marine Running Lights, G.W. Trahey, Oct 24 1933, 362/208 362/317 D10/114  -
1932143 Permanent Magnet Support for Lamps, Earl R. Piercy (Thomas a Skinner Steel Products Co), Oct 24 1933,
1933243 Illuminated Shoe, DeMerolis, Oct 31 1933, 36/1 ; 126/204; 219/211; 219/527; 36/137; 36/8.3; 362/103; 607/111 - women's high heel
1946595 Field signaling device, Straughan Joseph, 1934-02-13, - can send and receive telegraph& work as a telephone & as a flashlight.
1947022 Miner's Lamp, O. Schneider, Feb 13 1934, 362/186 362/208  -
1951097 Smoking Pipe and Tube, G. Lyeso, Mar 13 1934,  362/109 ; 131/178 - pipe with two cells and lamp & Lens
1955511 Electric Flash Light, Joseph Muros, Apr 17 1934, 362/202 ; 362/206- cushion lamp  from battery if dropped

1959024 Game Device, H.T. Hipwell, May 15, 1934, 273/141A - dog race game uses a rotary battery and lamp that rotate so no slip joints are needed

1959979 Extension Lamp Flash Light, George G. Gunderson (French Battery  Co), May 22 1934, 362/198 ; 362/258; 362/387- removable head with extension cord and head band
1960114 Illuminating Magnifying Glass, Charles Machenry Lindsay, May 22 1934, 359/802 ; 362/234; D16/135 - battery or transformer
1969320 Flash Light, Officer ( Blake Mfg Co), Aug 7 1934, 362/187 ; D26/46 - position of threaded lamp moved to control beam size
1971266 Flash Light Attachment for Batteries, Harry T. Kingsbury (Kingsbury Mfg), Aug 21, 1934, 362/194  -top cap with lamp & reflector made of rubber
1971599 Illuminating Device, J.F. Coulter, Aug 28, 1934, 359/673 362/198 - Boom with battery at control end and light at far end.
1977086 Combined Snap Switch for Flash Lights, C.E. Pryor, Oct 16 1934, 362/208 200/60 324/507 - switch in battery cap
1977813 Instrument, E.D. Tillyer, Oct 23 1934 - eye exam
1981544 Flash Light Device, Frech et al.(GE), Nov 20 1934, 362/194 429/97 - raw lamp bulb is made part of battery switch relates to connection between lamp and negative batt
1984398 Portable Electrical Apparatus, C.V. Dame, Dec 18, 1934, 362/108 429/97 362/198 - chest mount
1984401 Suspension Loop for Flashlights, Anthony J. Desimone (Bright Star Battery  Co), Dec 18 1934, 362/191- cap loop below plane of cap so can stand on end
1985483 Combined Door Knob and Lighting Device, J.W. Clarke, Dec 25 1934, 362/100 362/208 70/DIG.59 -
1988961 Flashlight Device, G. F. Prideaux (GE), Jan 22 1935 - cylindrical, throw away, clear marble as lens (not quite like the May light)
1992776 Projector, Louis J. Schindler (Schlndler Stamping a Toy Co), Feb 26 1935, 353/43 ; 353/88; 40/474 -
1995476 Electric Circuit Tester, R.T. Kalb, Mar 26, 1935,  324/507; 362/203
Keco Testit Model K135 - single D cell for power.  The metal ends need to be connected toghther in order to light the lamp.
That can be done using the switch, Fahnestock Clips or the special lamp test contacts.
Packing material in tube was a newspaper from 1935.
The patent shows thumb nuts but the real unit has Fahnestock Clips.
also see 1548225.

1996577 Combination Headlight and Hand Lamp, F.L. Humeston, Apr 2, 1935, 362/198 362/191 - Lantern or lamp can be used as headlamp with remote battery.
2001363 Flash Light,C.F.  Joers, May 14 1935, 362/158 ; 200/60; 362/204; D26/49 - air dust water proof, unbreakable shockproof
2003130 Ladies Hand Bag, W.O. Benjafield, May 28 1935,
2005339 Flash Light Hanger, Henry Hyman, Jun 18, 1935, 248/323 - replacement tail cap with bail
2009952 Flash Light, Marie L. Beaumont, Jul 30 1935, 362/205 ; 362/197; 429/96 - lamp between two cells, rotate cells with tab on carbon to act as switch
2011813 Exhibition Device, Walter V. Heekin (Heekin Can Co), Aug 20 1935, 446/47 ; 446/213  - uses a sprint to attach lamp to top of cell - a one part flashlight very minimalist
2017896 Flash Light, Anthony J. Desimone (Bright Star Battery Co), Oct 22, 1935, 200/60 ; 362/190; 362/205; 362/310-
2021111 Miner's Lamp, Grant Wheat, 1935-11-12, 362/198; 439/37; 439/38; 439/305; 439/352 - (also see Fire: Koehler Miners Lamp)
2023945 Endoscope, W.N. Allyn, Dec 10 1935 - ear exam
2027096 Utility Light and Test Lamp, Alfred I. Hammer, Jan 7, 1936, 324/506 ; 362/105 - head lamp that can be used other ways
2029425 Combination Clip-Board and Light, Kaylor, Feb 4 1936, 362/99 ; 24/67.3; 362/191; 362/274; D19/88 - cylindrical unit cells
2035812 Electric Hand Lamp, Otto Janzen, Mar 31, 1936 362/192 - Generator
2035841 Electric Flare Signal, W. E. SIGNOR (Seco Mfg), Mar 31 1936,340/331 ; 246/473.2; 307/66; 340/333; 340/815.76; 362/269 - baricade type
2041614 Electrical Testing Device, Charles M. Lindsay, May 19, 1936, 324/506 - adds a switch and rheostat for a number of tests
2048365 Amusement Device, Agate (ension Freeman Co), Jul 21 1936, 353/43 ; 229/103; 353/119- fold up paper box fits on end of flashlight to project silhouettes
2051889 Hand Lamp, Halvard F. Nygard (Burgess Battery Co), Aug 25 1936, 362/191 ; 362/207
2057718 Electrical Device , Cecil H. Gunthorp (Economy Fuse and Mfg Co), Oct 20 1936, 439/389 - method of attaching an electric terminal
2058904 Lock Switch for Flashlights, Joseph F. Moran (Scovill Mfg Co), Oct 27, 1936, 200/60 ; 362/205
2060206 Torpedo, J.H. Hammond, Nov 10 1936 uses photo cell to see ship's shadow
2067653 Signal Lighting Apparatus, Witmer (Union Switch & Signal), Jan 12 1937, 315/86 ; 246/28F; 246/34R; 315/171; 315/175; 340/333 -
2070472 Combination Flashlight and Traffic Signal, Elmer Crlswell, Feb 9, 1937,340/321 ; 340/815.67; 340/815.74; 340/815.76; 359/516; 359/528; 362/189; D26/49 -
2070818 Lifesaving Jacket with Automatic Electric Lighting Unit, G.A.F. Winckler (Winckler Engineering Labs),
2071557 Combined Flashlight and Headlight, Yasutaka Miyaoka, Feb 23 1937, 362/105 ; 362/198; 362/258; D26/39 -
2079075 Portable Electric Head Lamp, William F. Koepke, May 4, 1937, 362/198 ; 200/51.14; 200/60; 439/646 - two "D" cell tublar battery holder + wire and head mouted lamp
2082857 Reflector Attachment for Flashlights, C. Throughgood, Jun 8 1937, 362/208 362/135 -

2085732 Jul 1937 Automatic Night Sighting Device for Firearms, W. Baxter & A.B. Scott, Jly 6 1937, 362/114 ; 42/114 -
projects a small "+" instead of a wide beam so that the target does not see that he is being illuminated.
uses five element optical system
2092590 Flashlight Head, A.W. Schaff (Scovill Mfg Co), Sep 7 1937, 362/202 362/208  -
2092845 Flashlight, William L Holmes (Washington Institute of Technology), Sep 14 1937,362/192 ; 310/156.22; 310/69 - generator

---

Pre focused PR Lamp

This was a major improvement.  The E10 Edison screw base has no way to control the relationship of the filament location.  The PR (PRe focused, Parabolic Reflector, Prefocused Reflector, or...) base does that.

2097399 Lighting apparatus, Samuel F Arbuckle, United Lens Corp, 1937-10-26, Expires: 1954-10-26, 362/211 - this may be the first patent for a flange type bulb?  I remember these.  They had dimples on the flange and the spring (46) loaded pin (34) that grabbed the flange had elliptical bumps that seated in the dimples so, in addition to controlling the height of the filament they also controlled it's X, Y and theta location.  Although there being 3 pins the lamp would only go in one way. search terms: "prefocus 3-pin flange bulb" "1096 6V Bulb"

2734994 Pre-focus type light bulb mounting, Lloyd T. Fuqua, GM, 1956-02-14, - a lower cost mounting for the above lamp. (after the above patent expired)

---

2156319 Electrical testing instrument, Walter R Steele, 1939-05-02, - penlight with tip probe and test lead

Cited by:

Publication    Priority     Publication eAssignee     Title

US2459351  1944-08-14  1949-01-18  Weincord MauriceIl   luminated test device

US2511918  1950-06-20                                                   Electric testing device - Neon lamp & HV battery pack

US2534450  1948-03-05  1950-12-19  Joseph R Kadilak     Continuity tester - 2 cell penlight with probe

US2540471  1947-07-19  1951-02-06  Benjamin F Borsody Flashlight with testing attachment - 2 pin jacks in tail cap

US2550233  1947-12-11  1951-04-24  James J Duncan       Flashlight, fuse, and circuit tester - 2 D cell with pocket clip terminal

US2552981  1947-02-13  1951-05-15  Weston Electrical Instr Corp   Electrical testing apparatus - probe with battery & lamp

US2564166  1947-02-14  1951-08-14  Marinello Frank        Circuit and voltage testing device - 3 lamps to get relative voltage readings

US2607829  1950-03-24  1952-08-19  Herbert L Tipperman    Portable testing device - flashlight 2 pin jacks in tail cap

US2616952  1947-07-14  1952-11-04  David N Lauder         Combination penlite voltage and continuity tester

US2783445  1953-09-25  1957-02-26  Cahn Herbert         Test clip - 1/4" phone socket to Alligator clip

US3416126  1966-04-18  1968-12-10  Gen Electric         Contact pin and manufacture thereof - phone tip

US3517376  1968-08-16  1970-06-23  TI                       Connector for use between an integrated-circuit and a circuit panel

US3617991  1967-07-19  1971-11-02  Amp Inc            One-piece connector including release means

US4006409  1973-08-20  1977-02-01  Adams Bertram C     Electrical ground fault detecting device - metalic connection to ungrounded device senses AC voltage, so really is a Contact Voltage Detector

2157344 Flashlight testing device, John J Mccoy, Karl G Gerdin, 1939-05-09, - 2-blade socket allows checking for shorts in AC device
2164529 Portable Electric Head Lamp, W.F. Koepke, Jul 4, 1939, 362/198 - cylindrical battery housing +cord and head lamp.
2467954 Flashlight, R.F. Becker, Apr 19, 1949, 362/198 - two AA cells, goose-neck and 222 lamp
2540471 Flashlight with testing attachment, Benjamin F Borsody, 1951-02-06, - socket in tail cap for test leads
2550423 Extensible Flashlight, M.A. Nelson, Apr 24, 1951, 362/198 174/69 - bellows type telescoping wand.
2581129 Portable Electric Flashlight with Retractable Mount for Auxiliary Lamps, Jan 1, 1952, 362/184 200/60 362/199 174/69 362/198 - hinged arm with goose-neck.
2644131 Timing indicator for internal-combustion engines, George M Walraven, William R Elwell, Snap On, 1953-06-30, - neon tube connects to spark plug No. 1
2648762 Combined Housing and Flexible Flashlight Support, M.S. Dunkelberger, Aug 11, 1953, 362/198 24/11M 200/60 - switch at lamp, not on battery case. battery housing in pocket while in use.
2697128 Electrical Device, C. Moore, Dec 14, 1954, 429/99 362/198 - for powering Grain of Wheat Lamps.
2793639  Body Orificialscopes, E.E. Roberge, May 28, 1957, 600/178 600/184 362/139 362/198 - battery + cord to wand with lamp for illumination
2703385 Continuity tester, Curd Harold Gordon, 1955-03-01, - adapter for flashlight adds test leads.
2885539 Portable Warning Lamp, J.A. McDermott, May 5, 1959, 362/191 D10/114.1 362/207 D24/210 340/908.1 362/198 - road construction warning. Sunshade has gap to allow light to be seen as working from rear side.
3071747 Battery Handle Construction, W.C. Moore, Welch Allyn, Jan 1, 1963, 338/179 362/198 200/60 362/206 - medical instruments

Daisy Cinematic Picture Pistol

This is very similar to the Auto-Magic Pistol below, but there are differences.  The Daisy is made out of sheet metal, not a casting.
For more Daisy items see BB Guns and Pop Guns.
eBay search "Daisy superman Cinematic" There appear to be at least 2 versions. This one and the one with a likeness of Superman stamped into left side.

Labeled:

Daisy Cinematic Picture Pistol Daisy Mfg. Co. Plymouth, Mich, U.S.A. Patents No. 2,100,008 2,146,237 - Others Pending

Fig 1

Fig 2

Fig 3 photo of Superman version courtesy of Toy Tent.

2100008 Picture Projecting Device, Clarence L. Stephens, Nov 23 1937, 353/43 ; 353/85; 362/112, - pistol shaped film strip projector
Related:
2010501 VISUALIZER, Noble E. Stephens (Clarence L. Stephens), Aug 6 1935, 40/518 - five independent film strips all shown on single screen
2135952 PICTURE PROJECTING DEVICE , Clarence L. Stephens, Nov 8, 1938, 353/43 ; 362/112 - similar to 2100008
2146237 PICTURE PROJECTING DEVICE, Clarence L. Stephens (Stephens Prod Co), Feb 7 1939, 353/43 ; 353/90; 353/DIG.2; 362/187-
continuation of same application used for 2100008 that includes various film strip concepts like external can, internal storage and continuous loop

Auto-Magic Pistol 16 mm film strip projector

	The projected image is inverted. The loop is 30 frames of 16 mm. Maybe Super 16 or maybe plain 16. Image is formed between 1/2 foot and a couple of feet from muzzle. In the top half in the optical path you can see a vane sticking up.  It sets the right frame edge.  Since the perf is at the bottom of the lower half. If the height of this vane was reduced 2.1 mm (i.e. (S16) 12.35 -(regular 16) 10.26 = 2.09 mm) and if the optics work, then Super 16 frames could be projected.  East to test, just lift it up a couple of mm. With the top open you do see the full super 16 frame. With the lens out as shown at left the distance to the screen is 6" and the image is about 2 1/2" wide. Need to wait till dark to check the largest size image.
	Single perf 16 mm film 9" long (30 frames). This is polyester base which will not snap when bent but you can't use a normal splicer. Tape splices work. The marked frames are shown in order. The "1" is wrong, it needs to be mirrored like the "2" which is correct.  If you tilt your head to the right the numbers read correctly. Instead of writing backwards on the outside you could write normally on the inside. By comparing a photo of a projected image and the film the frame size is the standard 16 mm 10.26 x 7.49 mm, NOT Super 16.
Click on image to get pdf version where layers can be turned on or off

2100008 Picture Projecting Device, Clarence L. Stephens, Nov 23 1937, 353/43 ; 353/85; 362/112, - pistol shaped film strip projector
2100984 Adapter for Incadescent Bulbs, Emamiel C. Smally (K.B. Cope), Nov 30, 1937, 362/448 ; 439/642 - for using a smaller size lamp
2101479 Night Target Range Finder, C.H. Schenk, Dec 7 1937 -
2140224 Roller Skate Attachment, Mikaly Galgoczy, Dec 13 1938, 280/816 ; 36/137; 362/103; 362/396- lamp points down under skate
2104340 SIGNAL UMBRELLA Jan 1938
2104888 Electrical Connecting Device, Otto Spahr, Jan 1938, 362/194 324/506 429/96 43/17 439/245 -
2105719 Portable Electric Light, Cap B. Collins, Jan 18 1938, 310/75A ; 188/184; 290/1E; 310/50; 310/73; 322/30; 362/192-  generator
2114266 Combined Flashlight and Key Ring, Louis Bodor, Apr 12 1938, 362/116 ; 24/3.6; 40/634; 70/456R; 70/457; D26/38
D111345 Flashlight, Anthony J. Desimone (Bright Star Battery Co), Sep 20, 1938, D26/113 ; D26/46
2120523 Emergency Light or Torch, Charles Linhardt, Jun 14, 1938, 48/35 ; 441/15- uses Calcium Carbide & water to make acetyelene, not battery power
2123491 Portable , Robert G. Williams (Usona Mfg Co ), Jul 12, 1938, 362/203 - screwing in head turns on lamp
2124153 Flashlight Combination zConstruction, N.H. Swanson, Nov 8 1938 - keychain
2125038 One Hand Focusing Flashlight, E.H. Tompkins (Scovil Mfg Co), Jul 26 1938, 362/188 200/60 362/202 362/208  - screw based lamp
D111342 Flashlight, Anthony J. Desimone (Bright Star Battery Co), Sep 20, 1938, D26/128 - light out side plastic
D111343 Flashlight, Anthony J. Desimone (Bright Star Battery Co), Sep 20, 1938, D26/49
2132063 Flash Lamp, George W. Whaley, Oct 4 1938, 362/110 ; 362/197 - various 3 cell FL on revolver for police
2136199
2137881 Adjustable Reflector, Margulies, Nov 22 1938, 362/202 ; 248/480; 359/881 - a couple of stiff wires hold a shiny metal mirror at in front of lens
2138723 Combination Porrable Pocket Light and Camera, John Arthur Bell, Nov 29 1938, 396/182 ; 362/184; 362/240; 362/9 -
2140880 Illuminating Aiming Attachment for Carl Benton Osborn, Dec 20 1938, 362/114 ; 362/396- adapts normal FL for use with revolver
2151938 Life Saving Light, Jesse A. Ramsey, Mar 28 1939, 362/158 ; 200/52A; 200/60; 200/61.52; 200/DIG.29; 340/331; 441/17 - sea rescue
2153814 Battery Lamp, A.J. Seiss, Apr 11, 1939, 362/208 362/341, - Pre Focused Lamp
2156916 Flashlight, W.R. Kopp (Western Cartridge Co), May 2, 1939, 362/208 362/197 - head can be angled
2215829 Falshlight Attachment, Evans, Sep 24 1940, - 359/516 ; 138/96R; 220/732; 362/205; 362/310 - rubber protectors for reflector and cap
2172925 Lamp, C.E. Meyerhoefer (E.A. Labe), Sep 12 1939, 362/186 340/432 340/815.76 362/208  - bicycle tail light
2180228 PORTABLE ELECTRIC LAMP Nov 1939
2181447 Lock Switch for Flashlights, J. F. Ayotte (Scovill Mfg), Nov 28, 1939, 362/188 ; 200/60 -
2194992 Flashlight Construction, John J. Walsh, Mar 26, 1940, - 362/184 ; 200/60; 340/321 - forward light and rearward light
2201588 Lighted Bobber for Fish Lines, Kuhns, May 21 1940, 43/17 362/194 362/203 362/802 43/44.95 446/485 -
2204752 Flashlight, Anthony J. Desimone (Bright Star Battery Co), Jun 18, 1940, 362/183 ; 362/21 - multi cell, large reflector mine explosive atmos
2205352 Electric Float, F.H. Fisher, Jun 18 1940, 43/17 200/220 200/61.47 200/61.52 362/208 43/44.94 - fishing lure
2212103 Flashlight, H. Rothenberg L. Grimsley, Aug 20 1940, 362/188 ; 200/60 - rack and pinion focusing threaded lamp
2219906 Lamp, Edwin W. Pummill, Oct 29 1940, 362/202 ; 340/432; 429/97 - some lamp light gets reflected out the back for a bicycle
2220861 Reduction of Surface Reflection, Katharine B. Blodgett (GE), Nov 5 1940, 359/580 - adding anti reflection coating to glass either flat or lens
2221126 Flashlight, George C. Barbee, Nov 12 1940, 362/184 ; 362/207; 362/254; 429/97-  easy quick change between two screw based lamps
2225825 Flashlight, Anthony J. Desimone (Bright Star Battery Co),  Dec 24 1940, 362/186 ; 340/321; 362/202- colored plastic sleeve in head
2229486 Flashlight, Anthony J. Desimone (Bright Star Battery Co), Jan 21 1941, 362/205 ; 362/207 - no exposed metal nearly indestructible
2229495 Flashlight, Anthony J. Desimone, Jan 21 1941, 362/208 - reflector to hold flange type prefocused lamp & lamp storage
2231382 Flashlight, Anthony J. Desimone (Bright Star Battery Co), Feb 11 1941, 362/205 ; 340/321; 362/207 - light weight thermoplastic prefocused lamp
2232605 Flashlight, William I. Holmes, Feb 18 1941, 362/192 ; 188/184; 310/75A- generator
2234972 Flashlight, Zennan, Mar 18 1941, 362/158 ; 200/60; 362/189 - armored
2235024 Flashlight, Walter R. Kopp (Western Cartridge Co),Mar 18, 1941, 362/205 362/208 - - Pre Focused Lamp
2235025 Flashlight, Walter R. Kopp (Western Cartridge Co), Mar 18, 1941, 362/208 ; 362/341 - uses flange type prefocused lamp
2235714 Flashlight, William M. Lennan, Mar 18 1941,  - fluid proof & different socket locations
2245015 Combined Flashlight and Fan, Sibal, Jun 10 1941, 416/5 ; 416/131; 416/142; 416/146R; 416/63 - lamp & head turn. blades aginst body when stopped and swing out when on
2245707 Electric Lantern, C. S. PACKER (Justrite), Jun 17, 1941, 362/184 - spare lamp can be moved into reflector focus typically a RR feature
2245715 Toy Camp Lantern Light, Charles D. Eieck (L.F. Dow Co), Jun 17, 1941, 362/190 ; 200/60; 362/197 -
2245782 Metallic Bulb Lamp, Gilbert C. Holloway (Westinghouse), Jun 17 1941, 362/202 ; 174/17.08; 174/50.53; 174/50.56; 174/50.6; 313/111; 313/269; 313/315; 313/318.03;
2248359 Illuminated Punch, J. Klopfenstein, Jul 3 1941, 362/119 362/208  - ticket punch
2248460 Bicycle Headlight, H. L. Kraeft, Jul 8 1941, 362/476 340/815.73 362/157 362/184 362/196 - two lights in tank one on left one on right
2252088 Lamp, C.E. Meyerhoefer (E.A. Labe), Aug 12 1941, 362/196 362/157 362/208 429/99  - bicycle headlight
2252950 Dry Battery Lamp, E.E. Seiss, Aug 19 1941, 362/186 362/208 - bicycle light
2253951 Flashlight, Anthony J. Desimone (Bright Star Battery Co), Aug 26 194, 362/21 ; D26/49 - rubber armored
2253952 Flashlight, Anthony J. Desimone (Bright Star Battery Co), Aug 26 1941, 362/202 ; 340/321; 362/310 - colored plastic Frensl lens to shine light to the side
2254474 Flashlight and Battery Unit therefore, Cyril P. Deibel, Sep 2, 1941, 429/123 362/194 429/150 429/157 429/164  - battery is also the case cylindrical
2255516 Electrical Flash Light, E.J. McEachron (Marathon Battery Co), Sep 9, 1941, 362/189 ; 362/194; 429/185 -
2255825 Flashlight, Anthony J. Desimone, Dec 24 1940, 362/186 ; 340/321; 362/202 -
2259416 Lamp Construction, Gardener (Mer-Q-Ree Corp), Oct 14 1941, 362/84 ; 362/187; 362/321 - luminous paint & electromagnet closed shutter to block light when paint is being recharged - blackout
2259673 Combination Hunting Light and Flashlight, Ralph M. White, Oct 21 1941, 362/197 -  45 degree jount allows cylindrical or angle head
2260639 Flashlight Billy, W.M. Powell, Oct 28 1941, 362/102 340/321 362/208 362/369 463/47.2  -
2261001 Flashlight Head, B.F. Muldoon (H. Hyman), Oct 258 1941, 362/208 362/341  - can be seen from the side
2263518 Safety Water Light, Riner, Nov 18 1941, 340/321 ; 362/186; 362/267; 429/96; 441/17 - lantern battery powered buoy
2268878 Flashlight, Walter R. Kopp (Western Cartridge Co), Jan 6 1942, 362/208 ; 362/341 - uses flange type prefocused lamp
2273114 Hand Lamp, W.R. Kopp (Western Cartridge Co),, Feb 17, 1942, 362/208  -
2278614 Bicycle Lamp, Claud J. James, Apr 7 1942, 362/157 ; 429/97; 43/17.5; D26/36 - converts from heat to tail light
2287019 Taillight for poles or the like, F.B. Bristow, Jun 23 1942, 362/208  - tail light for transporting telephone poles
2288808 Hand Lamp Switch, Walter Richard Kopp (Western Cartridge Co), Jul 7, 1942, 200/60 ; 362/202 -
2289226 Laryngeal Speculum, Von Foregger (William M. Allyn), Jul 7 1942, 600/193 ; 362/119; 600/199 - for doctors
2290487 Flashlight Head, B.F. Muldoon (H. Hyman), Jul 21, 1942, 362/208  - screw base
2294558 Light Ray Gun, Hooker, Sep 1 1942, 362/112 ; 362/281; 463/51 - Thompson "Tommy Gun" uses mechanical shutter to get very fast pulses of light
2229494 Flashlight, Anthony J. Desimone (Bright Star Battery Co), Jan 21, 1941, 362/202 - insulating case
2294622 Camera and Projector Apparatus, Langberg, Sep 1 1942, 353/43 ; 346/107.2; 353/76; 353/88; 353/99; 353/DIG.2; 396/180; 396/430 -
2268056 Sight for Guns, Nelson, Dec 30 1941, 362/112 ; 42/116- shown on Tommy Gun
2298042 Flashlight, Anthony J. Desimone (Bright Star Battery Co), Oct 6 1942, 362/207 ; 200/60 - body made of Lumarith (thermoplastic)
2299035 Waterproof Casing for Flashlights, Harry Rothenberg L. Grimsley (H. Hyman), Oct 13 1942, -  362/158 ; D26/49 - goes over a FL
2299148 Flashlight, Lawrence L. Johnson, Oct 20 1942, 362/191 ; D26/39 - lamp between two cells, very much like the phonograph lamp
2302248 Combined flashlight and electric circuit tester, Axel V Olson, 1942-11-17, - 2-terminal socket on tail cap for appliance or test leads
2304433 Reflector, Myron. J. Zimmer (Katzmger Co), Dec 8, 1942,362/208 ; 362/341 - commonly seen reflector with socket for flange type prefocused lamp
2312670 Electric Torch or Flashlight, E. A. OLDS, Mar 2 1943, 362/207 ; 338/178 - rheostat, spare bulb, focus
2320193 Combined Safety Light and Illuminating Lamp, Powell , May 25 1943, 362/108 ; 200/550 - English bicycle light plus harness
2320222 Swimmer's Appliance, A. Crupi, May 25 1943, 362/106 116/173 116/209 2/68 362/158 362/208 - head worn beacon light
2320917 Portable Lamp, Oscar L. Ely, Jun 1 1943, 362/194 340/815.73  - uses lantern battery with thumb screw connection on top.
2323312 Electric Tourch, W.C. Crimmins (Sears Roebuck & Co), Jul 6 1943, 362/196 - Bicycle lights
2325253 Periscope, W. E. Lging, Jul 27 1943, 359/857 - periscope with light for inspecting inside of hydrents, walls, etc.
2326607 Hand Lamp, Clyde C. Bohner (Western Cartridge Co), Aug 10, 1943, 362/202 - prefocused lamp
2330673 Flashlight, Frank J. Braum, Sep 28 1943,362/184 ; 362/207  - revolving supply of lamps to burned out can be replaced quickly
2333541 Flash-light Shield, E.K. Madan, Nov 2, 1943, 362/208 - for blackout use
2335852 ILLUMINABLE SIGNALING DEVICE Dec 1943
2339356 Focusing Flashlight, William B. Sachs, Jan 18 1944, 362/187 -
2340530 Traffic direction
2347482 Electric Torch, D. Karo, Apr 25 1944, 338/219 ; 338/301 - resistance to be added into circuit
2361414 Marine Safety Light, J. A. Ramsey,  Oct 31 1944, 362/108 ; 362/158; 362/802; 441/17; 441/89- cylindrical, frensnell lens, ball in tube switch
2363825 Flashlight Attachment, M.N. Yardney, Nov 24 1944, 362/208 340/321 362/203 429/97  - for blackout use
2373131 Brestplade Black-Out Lantern, Richard L. Mann, Apr 10 1945, 362/197 362/196  -
2376330 Identification Light for Aerial Delivery Containers, Dircksen, May 22 1945, 340/815.66 ; 200/61.19; 244/138R; 340/321; 340/815.76; 362/184; 362/470; 362/84; 429/98 - double ended flashlight where lens color matches conatineer color
2379603 Electric Battery Torch Lamp and the Like, Samuel Daniel Sullam, Jul 3, 1945, 362/202 ; 200/60 -  bicycle tail lamp
2396046 Flash Lamp, H.T. & H.H. Hipwell, Mar 5 1946, 362/202 ; 362/207 - lens & Reflector mounting
2341822 Non Glare Flashlight, George H. Seal, Feb 15 1944, 362/202 ; 362/208; D26/49 - baffeled to prevent stray light (blackout type) prefocused lamp
2358820 Portable Electric Flashlight, B.F. Muldoon (H Hyman), Sep 26 1944, - angle head, prefocused lamp no references
2361480 Illuminating Torch, David P. Joffo, Oct 31 1944, 340/321 ; 340/815.56; 340/815.68; 362/102; 362/205; 362/280; 362/293- normal white light or selected color
2366202 Elbow Head Flashlight, J. G. Lippincott (Guth Stern & Co), Jan 2, 1945, 362/190 ; 362/197; 362/207; D26/37- Angle head
2366929 Floating Signal Light, Melvjn P. Pfeil, Jan 9 1945, 441/16 ; 340/321; 362/158; 429/96; 439/32 - see: A-7 AAF Flashlight, Floating Identification

2368779 Flashlight Projector, Katie Louise Pyles, Feb 6, 1945, 353/43 ; 353/DIG.2 - film strip projector attachment for angle head flashlight

2376330 Identification Light for Aerial Delivery Containers, A.D. Dircksen, May 22 1945,
2399921 Electric Lamp, A.D. Dircksen, May 7, 1946, 362/208  - parachute marker light
2401014 Flashlight, W.L. Paul, May 28, 1946, 362/208 200/567 200/60 362/189  - low cost
2405384 Illuminating Ankle Bracket and the like, Albert W. White, Aug 6 1946, 362/104 ; 362/216; 362/335; 429/98; 63/8 -  no references
2420227 Nephoscope, W. K. COBURN (Serdex),  May 6, 1947, 33/227 ; 73/170.11; 73/170.16 - to measure cloud movement
2420307 Portable Lamp, Frank H. Fristoe, May 13 1947, 340/321 ; 362/186 - cubical head with round lens or color filter on 5 faces
2424700 Generator Light, Marl McMath (Dayton Acme Co), Jul 29 1947, 362/192 ; 310/75B - rectangular
2439496 Flashlight, Szantay, Apr 13 1948, 362/205- partial twist to switch on-off
2440938 Porttable Signal Lamp, R. L. FALGE, May 4, 1948, 362/232 ; 126/200; 340/332; 340/815.77; 362/374-
2447296 Mechanical Flashlight, Alexander C. Watt (P.R. Mallory & Co), Aug 17, 1948, 362/192 ; 307/149; 310/75B; 315/218; 315/233; 322/1 - generator type
2459702 Flash Lamp, H.T. Hipwell, Jan 18 1949, 362/202 - rubber armor on head and cap prefocused lamp 2461118 FLASHLIGHT TORCH, Joshua Gordon Lippincott (Guth Stearn & Co), Feb 8 1949, 362/205 - prefocused lamp
2465426 Self-Contained Visual Signal for Calling Attendents, Bralove, Mar 29 1949, 340/321 ; 362/410 - night clubs, restaurants, etc.
2466414 Waterproof Flashlight Switch, Gits et al., Apr 5, 1949, 200/60 ; 200/302.1; 200/329; 362/197; 362/205
2476783 Flashlight, H.H. Turner, Jul 19 1949, 362/208 359/798 362/319  - angle head
2477516 Flashlight Switch, P.C. Haas, Jul 26, 1949,
2478336 FLASHLIGHT FILM AND PICTURE PROJECTING DEVICE, Stein (Hollywood Comic Flash), Aug 9 1949, 353/43 ; 362/253 -
2408393 Flashlight, J.A. Gits, Oct 1 1946, 200/60 ; 362/205- angle head  no references
2408643 Safety Flashlight for Pedestrians and Bicycle Riders, Joseph A. Hoy, Oct 1 1946, 362/184 ; 362/197 - Dual angle head  screw lamp no references
2430607 Electric Lighting Novelty, W.S. Gaskouitz, Nov 11 1947, 40/586 ; 2/151; 362/103- bow tie with initials, lamp behing fabirc
2435689 Flashlight, McCabe (M. Kessler), Feb 10 1948, 362/203  - designed to be made on  a screw machine, i.e. the first of machined lights
2454233 PICTURE PROJECTING PISTOL, Mathew A. Strumor, Nov 16, 1948, 353/43 ; 352/95; 353/109; 362/112 - film on sprocket wheel which is advanced by trigger
2478325 Illuminating Attachment for Canes and the Like, A.P. Russell, Aug 9 1949, 362/102 ; 135/910; 362/197 - horizontal handle with down facing reflector
2488021 Bicycle Generator, Harold F. May, Nov 15 1949, 310/75C ; 280/828; 307/157; 320/123; 362/193, -
2489806 Hand Flashlight, G.F.N. Oliver (Oliver Pell Ctrl), Nov 29 1949, 362/208 - improved one hand operation
2490309 Flashlight, Lincoln D. Lehman (T.T. Grave & O.G. Larson), Dec 6 1949, 362/192 ; 185/39; 322/38 - generator type
2492837 Portable Signal Light, Eugene C. Briggs (Emarco Corp), Dec 27 1949, 340/331 200/184 220/762 220/772 292/246 336/90 340/473 361/270 362/194
2493205 Portable Electric Flashlight, B.F. Muldoon (H. Hyman), Jan 3 1950, 362/190 362/197 362/207 362/208 - THE ARMY ANGLE HEAD?
2494265 Flashlight, Yetta Samalion, Jan 10, 1950, 362/194 ; 429/163, - single cell cylindrical battery is the body, switch in removable head
2500464 Usher's Flashlight, Charles H. Maher, Mar 14, 1950, 362/184 ; 362/197 -
2502566 Skate Light, Gerald Hooley, Apr 4 1950, 362/103 ; 280/816; 362/197; 362/396; D26/2 - roller skates
2506685 Shoulder Supported Flashlight Holder, Sadloski, May 9 1950, 362/108 ; 224/185; 224/197; 224/201; 224/247; 362/396; D26/39 -
2509832 Electric Flashlight with means for quickly changing bulbs, Frank E. Miller, May 30 1950, - Dual angle head, swap reflector to get new lamp
2510321 Hand Lamp for Attachment to Batteries, Arthur P. Sauer (Kilborn-Sauer Co), Jun 6 1950, 362/194 159/17.3  - uses 6 volt battery with thumb screw terminals
2510323 Novelty Device, A.F. Tahorski, Jun 6 1950, 2/151 ; 362/103; D2/606 - bow tie with lamp in center
2513071 Electric Flashlight, Robert H. Wendt, June 27 1950, 362/194 439/628 D26/37 - minimalist cap with sheet metal fingers that grab zinc, bare lamp or w/reflector, or two cell version
2518437 Flashlight, Walter R. Amstutz (Butler Brothers), Aug 15 1950, 362/205 ; 200/51R; D26/49 - reflector made from plastic with mirror coating prefocused lamp
2520565 Portable Electrical Highway Signal, Edward Victor Rivers, Aug 29 1950, 340/331 315/219 362/194 D10/114 - strobe barricade type
2522660 Foladable Holder for Flashlight Elements, W.E. Bledsoe (Badger Carton Co), Sep 19 1950,
D166073 Flashlight, Milton S. Dunkelberger, Mar 4 1952, D26/43 - goosneck between cylindrical body and lamp housing
2528490 FLASHER TYPE ELECTRIC FLARE, Virgil S. Berry, Nov 7 1950, 340/473 ; 340/815.73 - plugs into car cig lighter
2529234 Keyhole Illuminator, Donald H. Swanson, Nov 7 1950, 362/157 ; 362/100; 362/158 - mounts on door
2530505 Flashlight Switch Operating Mechanism, E.H. Brill, Nov 21 1950, 362/205 ; 200/60 - no threaded parts prefocused lamp
2532181 Illuminated Drinking Glass, Moore, Nov 28 1950, 362/101 ; 362/190; 362/203 - similar to a candle but with champagne glass top
2535041 Batteryless Flashlight, Joseph C. Clark (Jeny Corp), Dec 1950, 310/75B ; 362/192; 74/31 - thumb power?
2536593 Keyhole Illuminator, Edward E. Ciha, Jan 2, 1951, 362/158 ; 362/100; 362/197 - screws mount to door adjacent to lock opening
2538332 Flashlight, Donald G. Schaefer (Fulton Mfg  Corp), Jan 16 1951, 362/184 ; 362/202; D26/49 - cap with colored plastic lens
2539113 Lamp Head and Switch, Herbert Hafford Boll, Jan 23, 1951, 362/208 ; 362/235
Flashlight with H-shaped Frame Forming Opposed Holders for Dry Cells and Lamp Head, Frank Berman, Sep 30 1952, - jewlery box look
2553307 Plural Socket Flashlight having Flexable Switch, Raymond L. Falge, May 15 1951, 362/158 ; 200/60; 362/184; 362/189 - water and air tight, throwaway
2561744 Battery-Operated Book Light, V.V. Langdon, July 24, 1951, 362/99 ; 362/191; 362/199; 362/98; D26/51 - Two AA folds up into compact package
2562997 Flashlight Oil Tester, Leon G. Alexander (Wix Accessories Corp), Aug 7, 1951, 356/246 356/410 362/208 - new lens for Boy Scout Flashlight for checking motor oil.
2566280 Twin Beam Flashlight, Yandt, Aug 28 1951, 362/184 ; 200/60; D26/46 - twin reflectors and lamps
2572760 Illuminated Shoe Device, Nathan Rikelman, Oct 23 1951, 362/103 ; 200/52A; 200/52R; 200/60; 36/1; 36/137; D2/946; D26/57-
2582572 Electric Fan, George C. Tulk, Jan 15 1952, 416/5 ; 416/63 - two "D" cells power fan or light
2586265 Trouble Light for Illuminating Work, Clyde C. Russell, Feb 19 1952, 362/398 - car breakdown
2588162 Magazine Tool Handle, Peter F. Riggio, Mar 4 1952, 81/490 ; 279/81; 292/304; 312/309; 362/119 -
2588772 Combined Flashlight and Circuit Tester, Byron Sill, Mar 11 1952, 324/506 ; 362/190; 362/197 -
2591269 Signaling Wand for Flashlights, Lehoczki, Apr 1952, 340/321 362/208 362/577 D26/46 - stack of prisims
2592208 Bezel Lock for Electric Safety Lamps, Willson Y. Stamper (T.A. Edison Inc), Apr 8 1952, 362/208 220/300 403/343 403/349 - miner's explosive atmosphere
2593188 Novelty Hat Construction, Rikelman, Apr 1952, 446/27 ; 2/182.2; 2/209.13; 2/DIG.10; 273/DIG.17; 362/106; 362/278; 40/329; 446/197; 446/485; 472/51 -
2595695 Tubular Aluminum Bail with Reinforcing Inserts at , Charles S. Packer (Justrite), May 6 1952, 16/444 ; 16/445; 29/445; 29/517 -
2597565 Flashlight Attachment for Guns, Chandler, May 20 1952, 362/110 ; 42/1.01; 42/146 - for Thompson submachine gun
2597073 Flashlight having a Reversible Contact Plate for Establishing either Series or Series-Parallel Connections , Cunningham, May 20 1952, 362/184 ; 307/71 -
2597662 PORTABLE SELF-CONTAINEDREADING LAMP, Melamed, May 20 1952, 362/99 ; 362/184; 362/191 - one lamp-battery for the left page and another for the right page.
2599253 Angular Head Flashlight Casing including a readily attachable lamp contact means, Joseph A Gits, Jun 3 1952, 362/208 362/197 362/207 - angle head 2599254 Angular Head Flashlight Casing including a readily attachable lamp contact means, Joseph A Gits, Jun 3 1952, 362/208 - angle head
2599419 Multiple Switch and Multiple Bulb Electric Lantern,
2605316 Shock Absorber Assembly for Portable Electric Flashlights, Leopold C. Grimsley (H. Hyman), Jul 29, 1952, 439/382 - screw base or  prefocused lam
2605674 TOY MOTION-PICTURE PROJECTOR,
2608639 Portable Lantern having Contact Accomodating a single Lantern Battery or a Plurality of Flashlight Cells, Packer (Justrite), Aug 26 1952, 362/199 -
2611019 Multicolored Manual Signal Light, Edmund A. Warner (Lake Erie Chemical Co) , Sep 1952, 340/321 ; 362/102; 362/208; 362/293; 403/104 - wand attachment
2614206 Flashlight Assembly having Combined Support and Visor means, Dow Goad, Oct 14 1952, 362/191 ; 224/235; 224/245; 224/616; 224/623; 362/208; D26/49, - carry bag
2616332 Toy Projector, Morris Sorkin, Nov 4 1952, 353/43 ; 352/200; 353/85- projects film strip, battery powered
2623158 Multiple Bulb Electric Lantern, C. W. CRUMRINE, Dec 23, 1952, 362/185 ; 362/211 -
2628305 Battery Retainer for Electric Hand Lamps, Talbot, Feb 10 1953, 362/208 D26/50 - uses dual spring top 6 V lantern battery on it's side
2647222 Toy Bear, Robert T. Nieset (), Jul 28 1953, 315/228 362/124 362/194 362/365 439/544 446/369 446/392 446/485  - blinking Neon lights
2648762 Combined Housing and Flexable Flashlight,  Milton S. Dunkelberger, Aug 11 1953, 362/198 ; 200/60; 24/11M - flex head
2651710 Battery Operated Lamp having Anchoring means to Position the Lamp and Hold the Switch Closed, H.G. Clark, Sep 8 1953, 362/191 312/107 362/196 362/206 -Jack-O-Lantern
2654972 Fishing Line Signal Light, Hollingsworth, Oct 13 1953, 43/17 362/208 43/43.1 43/43.15  - in series with line
2655593 Lamp Clip for Dry Cells, Milton O. Fredrickson, Oct 13, 1953, 362/194 - wire holds lamp and connects to dry cell minimalist
2673925 Portable Utility Lamp, Walter M. Braim, Mar 30, 1954, 362/194 D26/48 - uses two sealed beam lamps and 6V battery with thumb nuts
2674685 Screwdriver with Illuminating means, Fred W. Young, Apr 6 1954, 362/120 ; 81/436; D8/87- flashlight with secredriver in front of reflector
2679575 Portable Reading Lamp, A.H. Haberstump, May 25, 1954, 362/99 ; 362/191; 362/194; 362/3 -
2680844 Lens for Flashlights and the Like, C.H. Smith, Jun 8 1954, 340/321 ; 340/815.42; 362/208- plastic rod for traffic direction
2690503 Flashlight Reflector Assembly for Prefocused Lamp, Edward J. Garland (Ray-O-Vac), Sep 28 1954, 362/208 - lampholder threads into reflector prefocused lamp
2696382 Mouth Actuated Flashlight Simulating Lit Cigar, Albert Gelardin, Dec 1954, 472/57 200/61.58R 362/208 362/806 446/24 446/485 -
2699553 Novelty Hat, Byers, Jan 18 1955, 40/329 ; 2/175.1; 2/906; 362/105; D2/873- has lamp inside and holes that can be covered by letters to make advertizing sign
2707228 Flashlight Bracket, Stanley J. Philipson, Apr 1955, 362/208 248/688 294/1.1 D26/123 D26/138 - red faceted lens and stand for car breakdown
2716700 Flashlight Construction, Ivan E. La France, Aug 30 1955, 362/184 ; D26/49- lamp at each end
2721257 Dog Collar Light, Kenneth M. Knox, Oct 18 1955, 362/108 ; 119/859; 441/123; 441/89; D30/152 - two batteries lamp at top center

2744188 Poetable Hand Lantern, Marvin Olsen, Glen Ellyn, Bill Rosinski, Nicholas Keller (Justrite), May 1 1956, 362/199 ; 200/60; 439/174; 439/52; D26/44 - 3 lantern batteries stacked side by side in "L" shape
2744189 Portable Lamp, Walter E. Wudyka, May 1 1956, 362/186 ; 343/721; 428/31; 446/485; 446/72; D26/32 - small monkey grabs car radio antenna an is illuminated
2748260 MOLDED DOUBLE-FACED JACK-O -LANTERN
2764058 Portable Combined Photographic Slide Viewing and Projecting Device, C.A. Ellis (American Optical Co), Sep 25 1956, 353/43 ; 362/268 -
2765481 Floating Signal Light, Manhart, Oct 9 1956, 441/17 ; 362/158; D26/40 - turns on when water soluable pellet melts D cell and Lamp
2769896 FLASHLIGHT SWITCH, Reuben B. Lambert, Nov 6 1956, 362/205 ; 200/60 - ring switch on cylindrical light (I used to have one of these maybe Ray-O-Vac)
2772349 Illuminating Apparatus, Chamberlin, Nov 27 1956, 362/191 ; 362/201; 396/155 - auto breakdown
2780721 Portable Flash Light, Alvar Lenning (Svenska Lasmutter Ab), Feb 5, 1957, 362/183 - 3 C or D cells lamp & reflector on broad side of rectangle
2785288 Illuminated Novelty Pins, G.P. Lewis, Mar 12, 1957, 362/157 ; 362/189; 362/203 - paper doll structure and pull string switch
2796516 Flashlight, Nlkolaus Martschik, Jun 18 1957, 362/199 ; 439/8- ball head for any position
2798147 Light-Reflecting Lens, Orsatti, Jul 2 1957 - 359/528 ; 116/63P; 340/815.76; 340/908; 340/908.1; 362/216; 362/260; 362/293; 362/332; 362/337; 362/84; D26/123
2814158 Animated Flashlight Figurine, Albert Gelardin, Nov 26 1957, 446/341 ; 292/80; 362/104; 362/124; 446/343; D11/129 -
2817754 Torch Head Safety Flashlight, Arthur H. Moore (Bridgeport Metal Goods  Mfg Co), Dec 1957, 362/202 -  prefocused lamp
2849596 Electric Hand Lantern, J.A. McDermott, Aug 26 1958, 362/184 362/191 362/194 362/199 D26/48 D26/50 - uses 6 volt battery with thumb nut terminals
2850716 Attention Arresting Signal Light, George W. Smale, Sep 2 1958, 362/269 ; 340/815.76; 340/815.77; 340/984 -
2867717 Leg Attached Light,
2880306 Electrical Appliances, Waldemar Witte, Mar 31 1959, 362/183 ; 30/34.05; 315/171; 315/362; 320/114 - rechargable handle for flashlight, razor, etc
2896067 Flashlight, Lee J. Lockwood (Storage Battery Co), July 21 1959,  362/158 ; 116/DIG.44; 429/116; D26/49 - life vest/raft type.  uses a reserve battery instead of a carbon zinc
2890327 Flashlight Construction, Tick C. Cheng (Electric Storage Battery Co), Jun 9, 1959, 362/208 ; 362/341- insulating reflector &tight seal of glass
2900493 Electric torches, Wing Gee Cheng (Meyer Mfg Co), Aug 18 1959, 362/184 ; 200/60 - filtered lamp in tail cap, prefocused lamps
2900494 Electric torches, Wing Gee Cheng (Meyer Mfg Co), Aug 18 1959, 362/184 ; 200/60 - stands on end similar appearance to the May Illuminating Torch
2909316 Portable Fans, Frohaczka, Oct 20 1959, 416/5 ; 200/60; 248/205.5; 248/663; 362/190; 362/208; 416/246; 417/411- angle head fan on one end and lamp, reflector & lens on other
2918668 Flasher Warning Lamps, Fred Frank Stube, Dec 22 1959, 340/331 340/815.76 340/908.1 362/194 D10/114  - two spring top 6 V batteries incandescent lamp
2927314 Droppable Marker Light, Philip J. Peanlngtoa (USAF), Mar 1, 1960, 340/815.74 ; 116/202; 116/209; 340/953 - survive drop on water or land and rights itself, strobe light, only on when dark.
2931026 Warning Signal Device, Francis Stone Nelson (Nelson Price Inc), Mar 29 1960 340/815.73 ; 340/331; 340/908.1; 362/200 - strobe type barricade warning lamp
2932018 Multipurpose electric Lantern, John J. Schwartz (Brown & Bigelow), Apr 5 1960, 362/486 ; 307/28; 340/473; 362/311; 362/509; D26/50-
2934635 Portable Illuminating Device, Wing G. Cheng (Meyer Mfg Co), Apr 26 1960, 362/184 ; D26/49 - lamp at each end
2942102 Portable Self-Contained Light, G. H. Stoutenburg (Stoutenburg Mfg) Jun 21 1960, 362/157 362/190 362/196 - 6V sealed Beam Lamp
2945944 Flashlight, James Flowers Gillespie, Jul 19 1960, 362/188 ; D26/49- slide adjusts beam width and can also dim light by retracting Prefocused lamp
2966578 Flashlight Umbrella or Cane, D.J. Coffey, Dec 27 1960, 362/102 ; 135/910; 362/191; D26/38 - flashlight can be removed
2981827 Light-Reflecting Lens, Orsatti, Apr 25 1961, 362/84 ; 340/908.1; 362/293; 362/299; 40/556- optical combinations of lens, reflector and retro reflectors so combination reflects light back to source without power, barricade
2931893 Lighting Arrangement, Arias, Apr 5 1960, 36/1 ; 36/137; 36/8.3; 362/103 - shoe light for walking in dark
3005193 Hazzard Warning Lamp, Knapp (R.E. Dietz), Oct 17 1961, 340/815.76 ; 340/331; 340/815.9; 340/908.1; 362/190; D10/114 -
3010645 Portable Electrically Operated Fan and Light, Abraham Mandelstam, Nov 28 1961, 416/5 ; 362/109; 362/253; 416/70A; 416/82; D26/59-
3015804 Combined Barricade and Flashing Singal Light, E. D. Nunn Norhtern Signal Co(), Jan 2 1962,
3017502 Flashlight Construction, E. Dent, Jan 16 1962, - prefocused lamp
3022467 Oscillator Circuit with Power Transistor Output, Leeder (R.E. Dietz Co), Feb 20 1962, 331/74 ; 315/200A; 315/209R; 324/76.52; 327/576; 331/108A; 331/111; 331/113R -
3032647 Cap or Hat Light, M.H. Wansky, May 1 1962, 362/191 362/106 362/196 D26/39
3046389 Portable Lighting Unit for Clip Boards and the Liks, Catelli, Jul 24 1962, 362/200 ; D26/37 -
3047787 Tuner Drive Apparatus, Clarence W. Wandrey (Zenith Radio Corp), Jul 31, 1962, 318/265 ; 200/38R; 318/467; 318/480-
3057992 Flashlights, Ridgway Baker (Honeywell), Oct 9 1962, 362/200 - pilot chart reading while preserving night vision
3067324 Portable Electric Lamps, William C. Thompson, Dec 4 1962, 362/194 ; D26/49 - unit battery is case
3070907 Illuminated Dancing shoe, Joseph Rocco, Jan 1 1963, 36/8.3 ; 36/1; 36/137; D2/976 - incandecent switch under shoe
3076891 New Plastic Flashlight Head, A.H. Moore (Bridgeport Metal Goods  Mfg Co),  Feb 5 1963 -
3065342 Resilient Lamp Mounting, Norsnert P. Worden (C.M. Hail Lamp Co), Nov 20 1962, 362/390 ; 411/44; 411/45; 411/510; 411/907-
3100420 Toy Slide Projector, Kuhn (Kenner Prod), Aug 13 1963, 353/43 ; 353/119; 362/191 -
3105233 Fish Caller, D'Amore,  Sep 24 1963 -
3124306 Portable Lamp, O. W. SCHOTZ, Mar 10 1964, 362/157 ; 200/60; 362/158; D26/49-
3125300 Safety Lantern, T. F. Roche,  Mar 17 1964, 362/20 -
3128050 Flashlight and Reflector Assembly therefore, Richard H. Parker ( Union Carbide ), Apr 7 1964 -
3147927 Throwaway Flashlight, M. Steele, Sep 8 1964, 362/189 ; D26/49- cheap
3172094 Battery-Powered Lamp, William H. Jones (Nicfaoii Brothers), Mar 2 1965, 340/321 ; 362/203 - sealed beam lantern 6 V
3185028 LIGHT AND IMAGE PROJECTORS, G. ANDREOLI - line powered
3189738 Signal Lamp David J. Dover (Doray Lamp Co), Jun 15 1965, 362/267 340/815.76 362/196 D26/123 D26/37 - baracade warning
3199405 Toy Pistol Motion Picture Projector, Samuel Gold, Aug 10, 1965, 352/95 ; 226/70; 352/207; 362/112-
3202979 Highway Marker, Lemelson, Aug 24 1965, 340/321 - flying scoccer, lamp telescopes out top
3226502 Portable Lamp Switch, Schutz, Dec 28 1965, 200/60 ; 200/551; 362/205-
3252733 ELECTRIC HAND LANTERN, Moore, May 24 1966, 362/157 ; 200/60; D26/48 - four D cells two tubs side by side to be shorter
3261972 Flashlight, Francis Stahl (Union Carbide Corp), Jul 19 1966, 362/205 ; 200/60 - plastic tubular
3283137 Flashlight, Gerald J. Hoesl, Nov 1 1966, 362/194 - lamp & reflector assembly clips onto cell, minimalist
3307208 Portable Lantern Float, D. L. JACOBSON, Mar 7 1967, 441/13 ; 362/382 - to carry commercial camping lantern in water
3321616 Illuminated Sketch and Memo Borad, Ronald E. Adler, May 23 1967, 362/604 ; 362/200; 362/99 -
3374344 LIGHTED BEVERAGE GLASS,
3401596 Projection Apparatus, Jeffery G. Hirsch, Sep 17 1968, 353/43 ; 362/205; 362/310; 362/806 -
3443085 Buoy Light, Steltzer, May 6 1969, 362/202 ; 441/16 - lockable, photocell, marking waterways
3457398 Flashlight with Replaceable Battery,  R. Figa, Jul 22 1969,362/194 - the two in long batteries are made with a metal outer jacket that is the body.
3535506 Blinker Light Lantern, Moore, Oct 20 1970, 362/184 ; 200/60 -
3588490 Lamp Device, T.H. Nicholl, Jun 28 1971, 362/184 ; 362/158; 48/20; D26/60; D26/63 - sphere w/ flat face, Interesting
641333 Illuminated Belt, Gendron, Feb 1972, 362/108 ; 340/321; 362/250; 362/802
3665178 Reserve Type Flashlight, Sussingham (P. R. Mallory & Co., ), May 23 1972, 362/189 ; 429/116 -
3666937 Apparatus for Illuminating Ornaments, Charles Franc, May 1972, 362/194 - special battery and lamp
3683168 ILLUMINATING SPECTACLES FOR WORKING IN THE DARK, Joachim Tatje, Aug 8 1972, 362/105 ; 351/158 - central 222 lamp
3703634 KEY HEATER FLASHLIGHT, Peter A. Bucky, Nov 21 1972, 362/116 ; 219/201; 219/220; 219/242; 219/521; 362/183-
3756710 Toy Hand Projector, Beverly W. Taylor,  (Steven Mfg Co), Sep 4 1973, 353/43 - battery powered, 222 lamp, film strip proj
3821540 Lantern, Robert H. Watt, Jun 28 1974, 362/158 ; 362/186; 441/17 - self righting, store upside down
3890498 Flashlight Device, Toth, Jun 17 1975, 362/205 ; 362/191- can add sections to have more cells i.e. make longer
3893247 Illuminated Soles and Heels, Alfred Dana, July 8, 1975 , 36/137 - incandesent lamp batteries under sole lamp in heel, tilt switch
3924116 Flashlight having a Push Button Switch means, Robert E. Brindley (Union Carbide Corp), Dec 2 1975,362/158 ; 200/302.1; 200/345; 200/60; 362/205 - side push on push off
3944805 Wireless electric swivel head hand lantern, Arthur H. Moore (Bridgeport Metal Goods), Mar 16, 1976,240/106.1; 240/106.3; 240/106.7 - screws on top of heavy duty 6 volt battery
3963886 Switch for flashlight, Ting Shen Yen, Jun 15, 1976, 200/60; 200/67DB; 240/106.8 -
4028540 Flashlight Marming Implement, Columbus B. Key, Jun 7, 1977, 240/646; 401/192
4041304 Flashlight, Samuel Spector, Aug 9, 1977
4052610 Flashlight Case Assembly and Flashlight, Mark Sternlicht (Wonder Corp of America), Oct 4, 1977, 362/200; 362/197, -
4055840 Reusable Safety Device, Anton R. Uchytil, Oct 25, 1977, 340/321; 116/63P; 366/32; 366/202; 350/101; 340/90; 340/116; 404/9 - flashlight with many relflecting strips at head to reflect light
4090185 Emergency Position Fixing Device, Richard L. Patty, May 16, 1978,  340/321; 340/366A; 340/366G - strobe light mounts to helmet
4128861 Illuminated Shoe, Akis Pelengaris, Dec 5, 1978, 362/103 - high heel switch in bottom of heel
4135230 Flashlight, Joseph M. Armbruster, Jan 16, 1979, 362/206; 362/202 - push-pull recessed switch in tail cap
4151583 Flashlight, Jack V. Miller, Apr 24 1979, 362/205, - push button on side of cylindrical flashlight, uses flange type prefocused lamp
4152755 Portable magnetically actuatable flashlight, Raymond Trosper, May 1, 1979, 362/158; 362/205; 362/208
4215389 Battery Operated Light, Fernando M. Colangelo, Jul 29, 1980, 362/199; 362/200; 200/511.4 -
4285031 Portable Searchlight, Hans-Jurgen Reiss, Aug 18, 1981, 362/205; 362/157; 362/158; 362/183; 362/202 - soft case
4286311 Flashlight, Anthony Maglica,  Aug 25, 1981, 62/205; 200/153J; 200/64; 362/187; 362/202 - hermetically sealed
4293894 Battery operated illuminating device, Nolan D. Blank, Oct 6, 1981, 362/100; 362/186; 362/191
4364103 Battery Case for an Electrically Operated Device, T.L. Harshbarger, Dec 14, 1982, 362/200 -
4394956 Electric stock prod James S. Andrews, Jul 26, 1983, 231/2E; 273/84ES -
4398238 Variable focus flashlight, Kel-Lite Ind
4405303 Portable Recreational Marker Boy, Richard K. Smith, Sep 20, 1983, 441/16; 441/22; 441/25
4531178 Diver's Flashlight, Alan K. Uke, Jul 23, 1985, 362/158; 362/183; 362/186; 362/202; 362/203; 362/205; 362/295; 200/60 -
4533982 Flashlight with swivelling head, John J. Kozar, Aug 6, 1985, 362/183; 362/190; 362/191; 362/197; 362/199; 362/202; 362/205; 362/287; 362/398; 362/421; 362/427
4605994 Flash Lamp, Rudolf Krieg, Aug 12, 1986, 362/202; 362/205; 362/187 - optical system for halogen lamp flashlight
4609976 Combination flashlight and warning light, Udo Geissler, Sep 2, 1986, 362/202; 362/167; 362/188; 362/196
4680682 Waterproof Flashlight, David H. Parker, Jul 14, 1987, 362/158; 362/204; 362/205 -
4734834 Compact waterproof lighting lamp with adjustable light beam, Paul Petzl, Pierre Petzl, (Petzl S.A.), Mar 29, 1988, 362/187; 362/103; 362/105; 362/204; 200/60

4788632 Compact Flashlight, Arthur S. Friedman, Nov 29, 1988, - 362/200; 362/196; 362/455 - almost a cube with lanyard
4800472 Battery Powered Lamp, Colin R. Burton, Philip Davies (Eve Ready Ltd), Jan 24, 1989, 362/158; 362/189

4803605 Flashlight with a backup system, David R. Schaller  (Ray-O-vac), Feb 7, 1989, 362/184; 362/205; 362/208 - two FL in one pkg

4819141 Flashlight, Anthony Maglica (Mag Instrument), Apr 4, 1989, 362/207; 362/187; 362/197; 362/205, -
4870550 Waterproof Flashlight, Alan K. Uke, 362/158; 362/187; 362/202 -
4893221 Portable Light, Arthur S. Friedman, Jan 9, 1990, 362/108; 362/197; 362/199; 362/802; 362/375- hangs on neck strap
4901664 Survival Kit Apparatus, Sylva Labrecque, Feb 20, 1990, 116/210; 116DIG8; 116DIG9; 206/573; 446/220 - box with light and compass
4967323 Adjustable Apparel-held Flashlight, Melissa C. Johnson, Oct 30, 1990, 362/103; 362/105; 362/190; 362/197 - AAA & 112 & ball joint
4984141 Warning and lighting flash light, Larry Lai, Jan 8, 1991, 362/187; 362/206 - colored side filter
 Larry Lai 5097399 Flashlight with Swivel Head, Richard J. Gammache, Mar 17, 1992, 362/197; 362/199; 362/205; 362/207
5045980 Flashlight Adapter, Richard T. Harvey, Sep 3, 1991, 362/202; 362/255; 362/277 - angled reflector with hole in center splits beam into two bearms
